50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Specifications
Model Number :
DB50-JS
MOQ :
10 pcs
Delivery Time :
5-8 Days
Rated current :
5A
Price :
$1.55-$1.95 (Depending on the quantity)
Boday Material :
Zinc alloy
Certification :
ISO9001
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+105℃
Insulator material :
Thermoplastic, flame‑retardant
Supply Ability :
1000000Pcs/Year
Name :
DB Connector DB50-JS
Brand Name :
ZSX
Packaging Details :
Carton packaging
Place of Origin :
China
Description

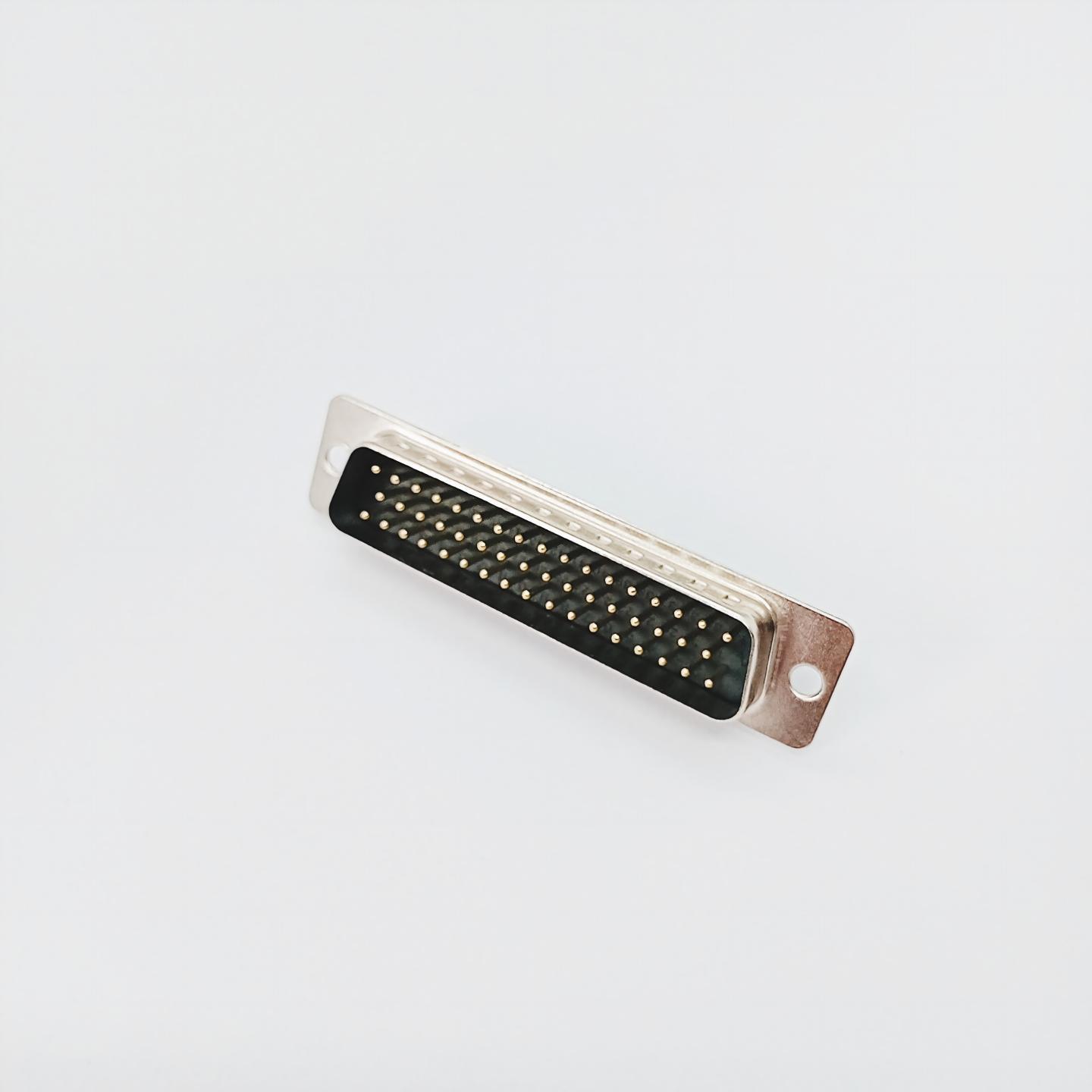

D‑Sub 50 Pin Male Connector DB‑50 DB50 Solder Cup 3 Row Industrial D‑SUB Plug

D‑Sub 50 pin male connector, also known as DD‑50 or DB50, is a high‑density 3‑row industrial D‑SUB plug with 17‑16‑17 contact layout and solder‑cup termination.Equipped with nickel‑plated metal shell for 4‑40UNC locking jackscrews to resist vibration and prevent loosening. Gold‑plated contacts ensure low contact resistance and anti‑oxidation performance. Operatingtemperature ranges from ‑55℃ to +105℃.Perfectly suited for industrial automation systems, test & measurement instruments, data acquisition devices and multi‑channel signal harness assembly. Fully interchangeable with standard DD‑50 female receptacles.

Product display
Product Performance Details
Product model DB50-JS Contact resistance ≤10mΩ
Ambient temperature -55℃~+105℃ Insulation resistance ≥1000MΩ
Pin pitch 2.77mm (Standard E-type shell) Medium pressure resistance 1000Vrms
Contact material Copper alloy, gold-plated on the surface Mechanical life 50 times
Insulating material Thermoplastic, flame‑retardant Rated current 5 A

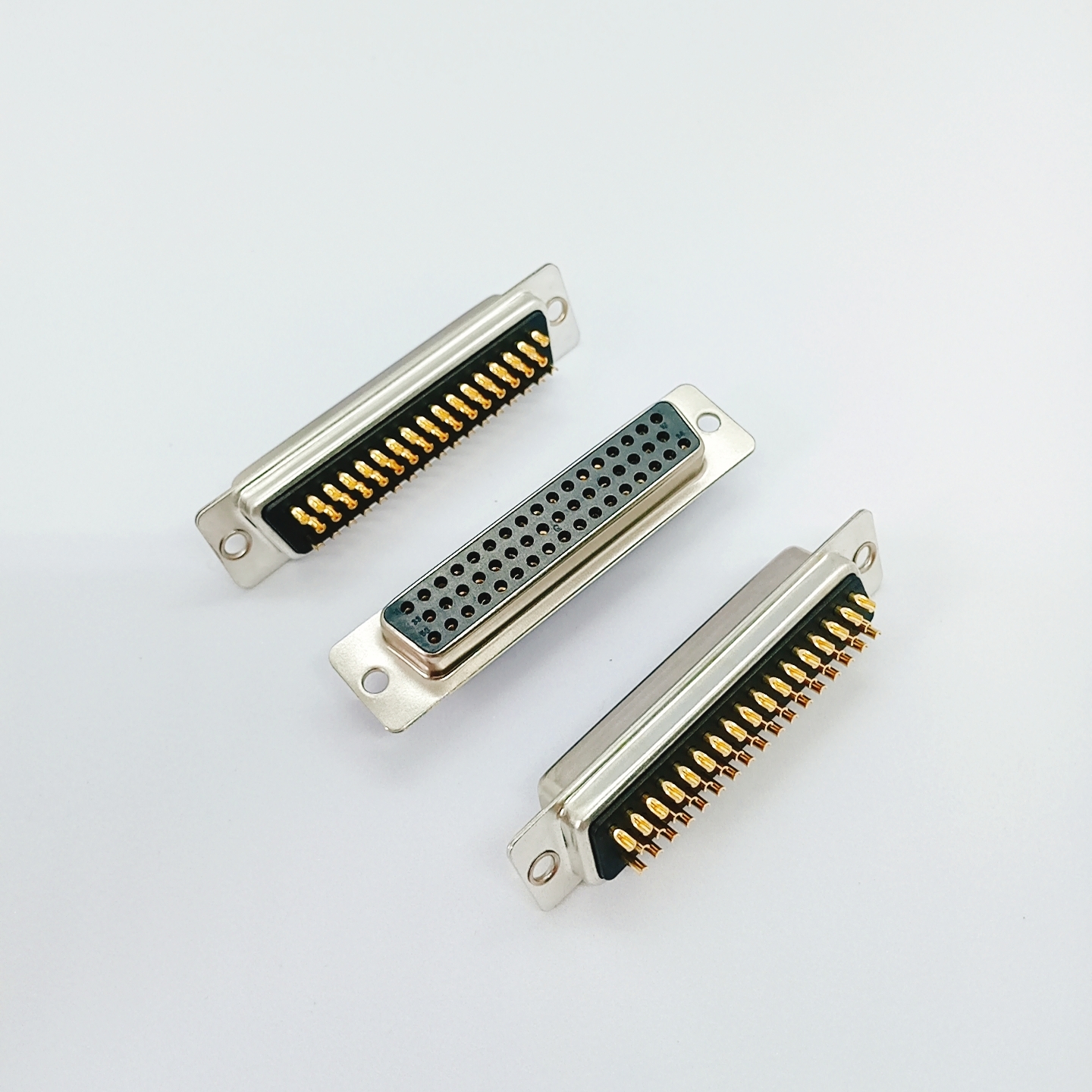

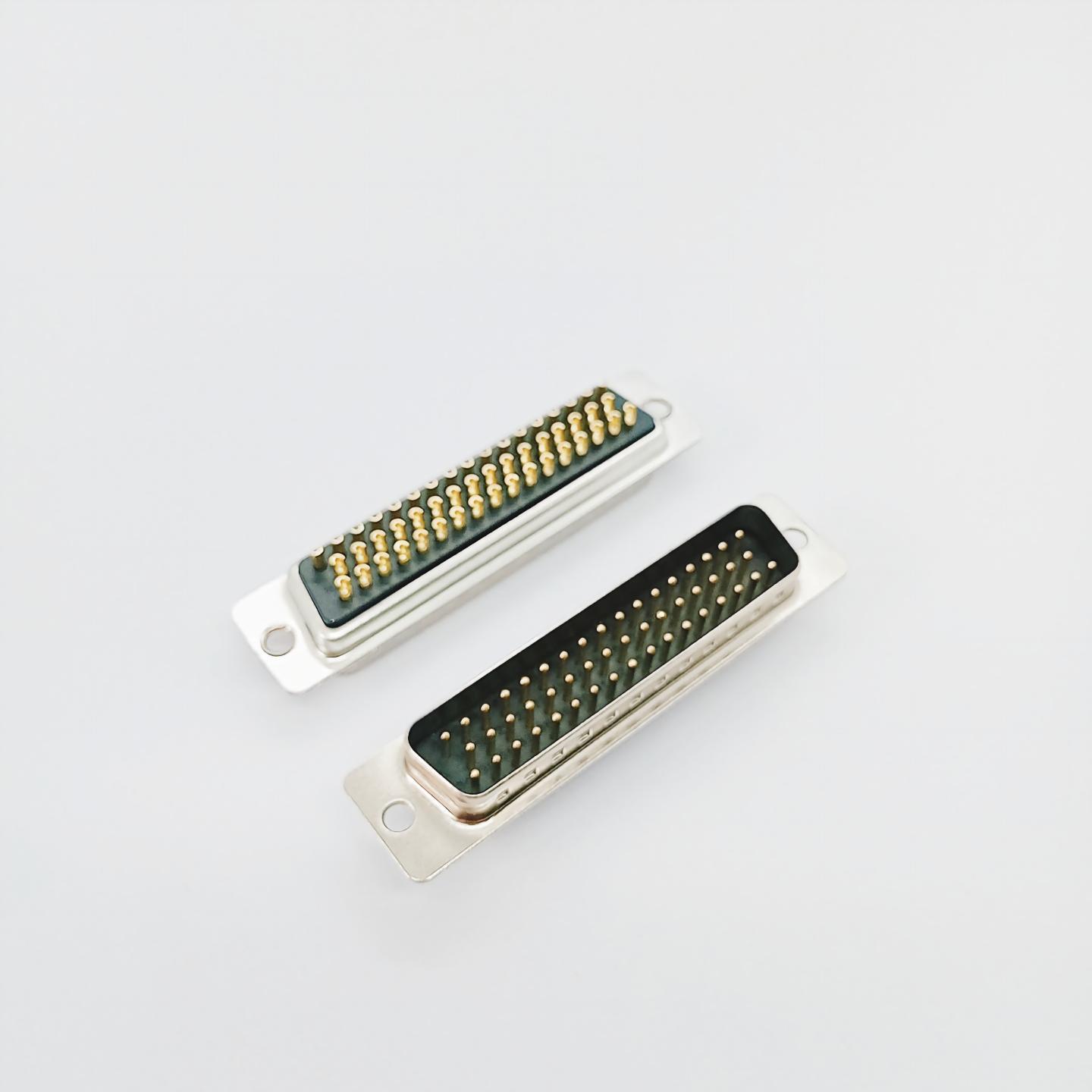

Physical product display
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Product external dimensions


Related product recommendations
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Product selection reference
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell

Production Plant Area

Machining production workshop

50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell

Precision Assembly Production Workshop

50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell

Glass-to-metal sealed production workshop

50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Obtained Certification Certificate
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Customer visit
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Product packaging
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell 50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
Packaging and Shipping
50 Pin D-Sub Connector DB-50 with Solder Cup Termination and Nickel-Plated Metal Shell
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
