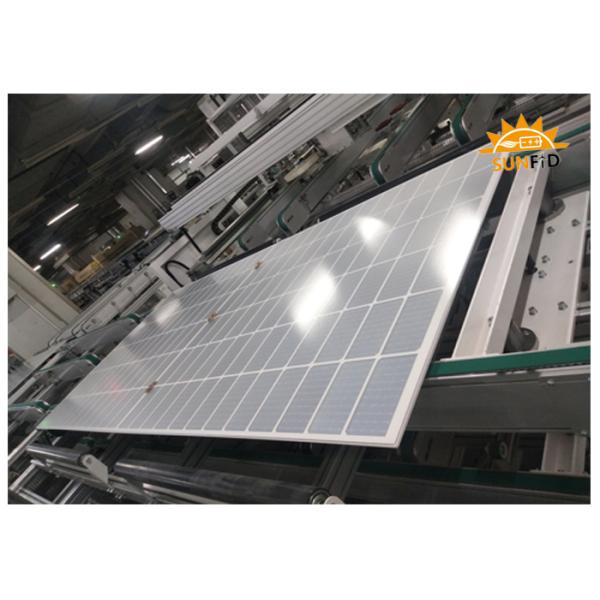

550W PERC Customized Solar Panels Half Cell Mono Crystalline Monofacial High Efficiency
550W PERC Customized Solar Panels Half Cell Mono Crystalline Monofacial High Efficiency
550W PERC Customized Solar Panels Half Cell Mono Crystalline Monofacial High Efficiency
550W PERC Customized Solar Panels Half Cell Mono Crystalline Monofacial High Efficiency
550W PERC Customized Solar Panels Half Cell Mono Crystalline Monofacial High Efficiency
550W PERC Customized Solar Panels Half Cell Mono Crystalline Monofacial High Efficiency
Specifications
Brand Name :
Silk
Model Number :
SFD-PV550M1-HP144F
Certification :
CE, IEC,CQC,CNAS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per month
Delivery Time :
10-30 Days
Packaging Details :
Wooden Case
Iteｍ Name :
PERC Monocrystalline Solar Panel
Solar Cell size :
144 Cell (6×24) 10BB
Max. Power :
550W
Application 1 :
10KW 10MW Solar Energy Station
Max. Static Load :
5400P
Open-Circuit Voltage :
37.09-37.29V
Solar Glass :
3.2mm High Transmission
IP Grade :
IP68 Rated
Description

Residential Energy Storage System 550W PERC Half cell Mono-Crystalline Monofacial High Efficiency Solar Module

Solar Panel 550W 540W Description
The front adopts a high-density battery arrangement, which makes it more beautiful in appearance. Maximum system voltage:1500VDC

Each part of the PV module is fixed to avoid collision and friction between the Aluminium frames.

Modules Per box: 31pcs. Modules per container: 620pcs/40HQ,205pcs /20GP

550W 545W Mono Solar Panel Application:
Suitable for off grid system, on grid system & hybrid system. Such as: 10KW 5KW home solar power system. Compatible with on-grid solar inverter and off grid solar inverter and solar system battery

Mono Solar Panel System Configuration:

ELECTRICAL SPECIFICATION (STC)
Max-power 550
Power Tolerance 0~+6W
Voltage at Pmax (Vmp) 41.3
Current at Pmax (Imp) 13.32
Open-Circuit Voltage(Voc) 49.62
Short-Circuit Current (lsc) 14.03
Module Efficiency(%) 21.29
No. of Bypass Diodes(pcs.) 3
Max. Series Fuse(A) 25A
Operating Temperature - 45~+85 ℃
Max Static Load 5400P
Max-System Voltage(VDC) 1500 VDC(IEC)
Fire Rating Class C
STC: Irradiancec 1000W/m2, Cell Temperature 25 ℃,Air Mass 1.5
MECHANICAL SPECIFICATION
Solar cells Mono Crystalline 182×91 mm
144 Cell (6×24) — 10BB
Module Dimension(mm) 2278×1134×35
Weight 28.5 kg
Front Glass 3.2mm High Transmission.LowlronTempered Glass
Construction Encapsulation: EVA EVA
Back Sheet White
Junction Box IP68 Rated
Connector MC4/MC4 equivalent
Calble Φ=4mm2, L=300±5mm

FAQ:

Q: Could we import whoe solar energy system kits?
A: Yes. We are a manufacturer of solar panel kits and solar power system kits, such as energy storage battery, solar inverters and solar panels. Suitable for solar power generator systems

Q: Are solar panel really worth it?

A: We can receive numerous benefits: lower electric bills, lower carbon footprints, and potentially higher home values.

Q: Is it possible to OEM customize the solar panels and the packaging with our logos?
A: Yes, OEM/customizing is warmly welcome for bulk orders. Just tell us your idea!
