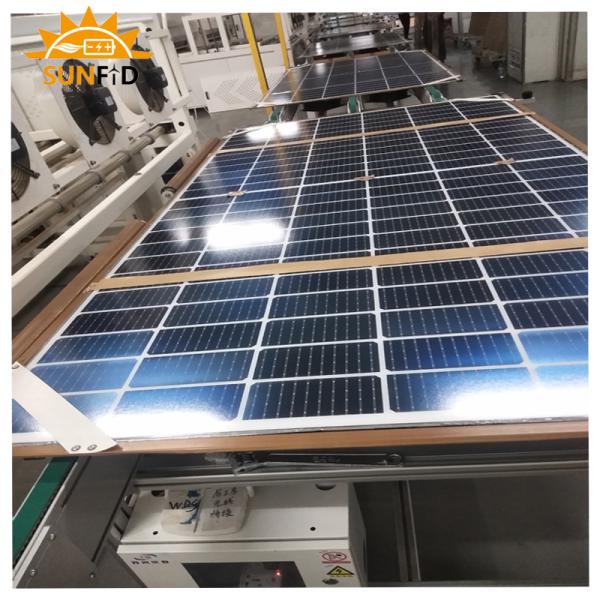

PERC Half Cell MonoCrystalline Solar Panel Dual Glasses 550W
PERC Half Cell MonoCrystalline Solar Panel Dual Glasses 550W
PERC Half Cell MonoCrystalline Solar Panel Dual Glasses 550W
PERC Half Cell MonoCrystalline Solar Panel Dual Glasses 550W
PERC Half Cell MonoCrystalline Solar Panel Dual Glasses 550W
PERC Half Cell MonoCrystalline Solar Panel Dual Glasses 550W
Specifications
Brand Name :
Silk
Model Number :
PV550M2-HP144F
Certification :
CE, IEC,CQC,CNAS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per month
Delivery Time :
10-30 Days
Packaging Details :
Wooden Case
Iteｍ Name :
PERC Bifacial Solar Panel
Solar Cell size :
144 Cell (6×24) 10BB
Solar Power :
530W 535W 540W 545W 550W
Application 1 :
10KW 5KW 100 Solar Energy Generator Station
Max. Static Load :
5400P
Open-Circuit Voltage :
50.92V
Solar Glass :
2.0mm High Transmission Double glasses
Module Dimension(mm) :
2278×1134×30
Description

Residential Energy Storage System 550W PERC Half cell MonoCrystalline Dual-Glasses Solar Panel

Solar Panel 550W 540W Description

1. PERC (Passivated Emitter Rear Cell), half cell technology,increases the efficiency of solar modules.

2. Solar modules certified by TUV and CQC in the extreme conditions.

3. Guarantee from 0 to +6W as power tolerance conventional output.

4. Double-sided absorption of solar radiation

550W 545W Mono Solar Panel Application:
Suitable for off grid system, on grid system & hybrid system. Such as: 10KW 5KW small home solar power system. Compatible with on-grid solar inverter and off grid solar inverter and solar system battery

Mono Solar Panel System Configuration:

ELECTRICAL SPECIFICATION (STC)
Max-power 525 530 535 540 545 550
Power Tolerance 0~+6W
Voltage at Pmax (Vmp) 40.8 40.9 40.94 41.07 41.19 41.32
Current at Pmax (Imp) 12.87 12.96 12.97 13.03 13.23 13.19
Open-Circuit Voltage(Voc) 49.42 49.96 50.54 50.67 50.79 50.92
Short-Circuit Current (lsc) 13.63 13.73 13.83 13.74 13.85 13.95
Module Efficiency(%) 20.32 20.51 20.71 20.9 21.09 21.29
No. of Bypass Diodes(pcs.) 3
Max. Series Fuse(A) 25A
Operating Temperature - 45~+85 ℃
Max Static Load 5400P
Max-System Voltage(VDC) 1500 VDC(IEC)

FAQ:

Q: Could we import whole solar energy system kits?
A: Yes. We are a manufacturer of solar panel kits and solar power system kits, such as energy storage battery, solar inverters and solar panels. Suitable for solar power generator systems

Q: Are solar panel really worth it?

A: We can receive numerous benefits: lower electric bills, lower carbon footprints, and potentially higher home values.

Q: Is it possible to OEM customize the solar panels and the packaging with our logos?
A: Yes, OEM/customizing is warmly welcome for bulk orders. Just tell us your idea!

Q: How long do solar panels last?

A: Solar panels, also known as photovoltaic or PV panels, are made to last more than 25 years. We have single glasses solar panels and duable glasses solar panels, 25 years performance warranty + 0.55% Annual Degradation for Perc Mono Facial moduel. and 30 years performance warranty + 0.45% Annual Degradation for Perc doubles glasses Mono-Bifacial Module.
