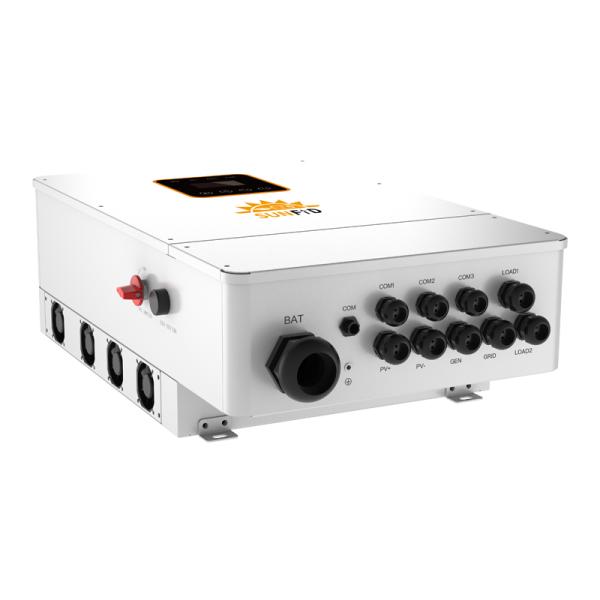

5000W American Hybrid ESS Split Phase Inverters Low Voltage 48V Support Parallel
5000W American Hybrid ESS Split Phase Inverters Low Voltage 48V Support Parallel
5000W American Hybrid ESS Split Phase Inverters Low Voltage 48V Support Parallel
5000W American Hybrid ESS Split Phase Inverters Low Voltage 48V Support Parallel
5000W American Hybrid ESS Split Phase Inverters Low Voltage 48V Support Parallel
5000W American Hybrid ESS Split Phase Inverters Low Voltage 48V Support Parallel
Specifications
Brand Name :
Silk
Model Number :
SFD-IHB-5KL48120-A500S
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
10-30 Days
Packaging Details :
Hard Paper Carton with Foam or Wooden case
Product :
5KW Hybrid MPPT Solar Inverters Split-phase
Rated Power :
5000W
PV Input Power :
7.5KW
AC Output Current :
24A
MPPT Voltage :
120VDC~500VDC
Application :
Home Solar Energy system
Description

5000W American Hybrid Inverter ESS Split-phase Inverters Low Voltage 48V Support Paralle Inverter

5KW Hybrid Solar Inverter MPPT Solar Charger

low-voltage North American Hybrid inverter can be widely used in various home storage application environments.

Combined with a smart display, it makes operation and maintenance easier.

Features:

  • Safe and reliable: Passed IEEE1547.1,UL, and South Africa NRS097-2-1 Test
  • Friendly & flexible: Support multi-machine parallel connection
  • Support multi-parallel mode sharing a battery pack
  • Support the diesel generator and the grid access at the same time

5000W Solar Inverter MPPT Hybrid Inverter Parameters

Technical specification IHB-5KL48120-A500S
Input (PV)
Max.Power(KW) 7.5
Max. DC voltage (V) 500
MPPT voltage range(V) 120~500
Max.Input current of single MPPT(A) 12
MPPT tracker/strings 4/1
AC output
Rated output power(kVA) 5
Max. output current(A) 24
Ac output voltage(V) 120/240(split phase), 208(2/3 phase),230 (single phase)
Frequency (Hz) 50/60
PF 0.8lagging-0.8leading
THDi < 3%
Battery
Battery voltage range(V) 40~58
Max. charge/discharge current(A) 120/120
Communication interface CAN/RS485
EPS Output
Rated power (kVA) 5
Rated output voltage(V) 120/240 (split phase), 208 (2/3 phase),230 (single phase)
Automatic switching time(ms) ＜20
General data
Dimensions 430*220*710 mm

FAQ:

Q1: How much power solar energy systems can provide?

A1: Home solar energy systems 3-100KW, and we also provide higher wattage commercial and industrial solar power systems.

Q2: Can you offer On Grid and Off Grid solar power systems?
A2: Yes, we produce On-Grid solar power systems, Off-grid solar power systems, and also provide Hybrid solar power systems.

Q3: Who is your service customer?
A3: Individual client for house solar systems; distributor; importer and solar energy system installer.
