Specifications
Brand Name :
Silk
Model Number :
OKUPS600VA
Certification :
CE,FCC,MSDS,ROHS,UN38.3
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000 pcs per month
Delivery Time :
10-30 Days
Packaging Details :
Hard Paper Carton with Foam From Top and Button
Color :
Black
warrenty :
12 months
charge period :
8 hours to be full
chargecurrent :
1A
Input voltage :
110v/220v
Display :
LED/LCD optional
Description

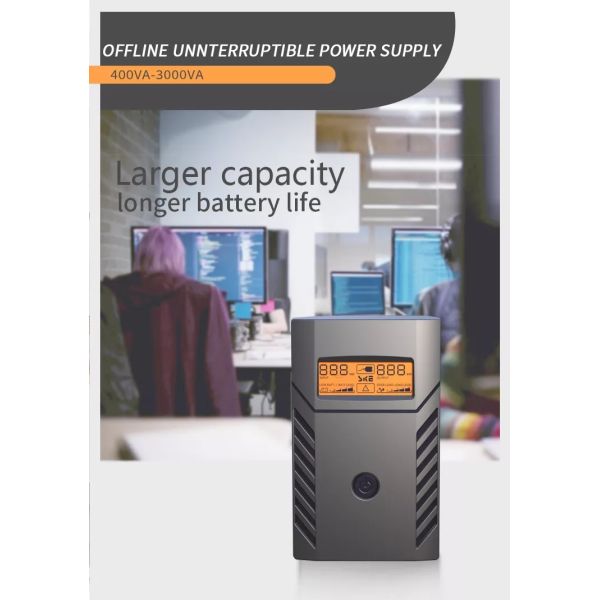

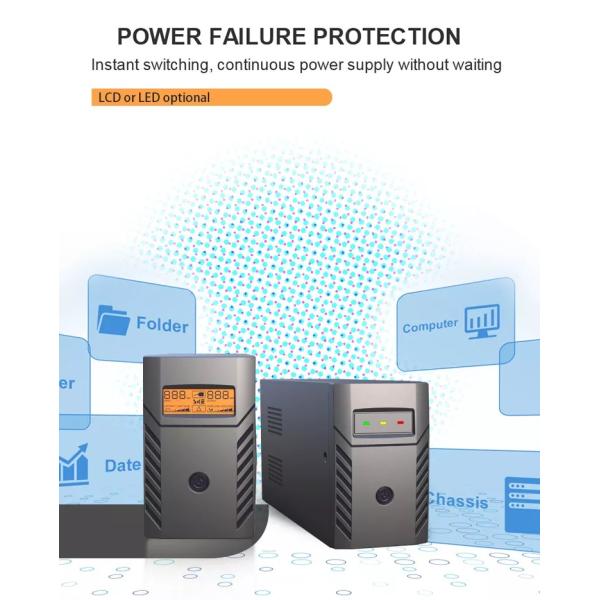

UPS Lithium Battery UPS Manufacturer OEM Lithium Iron Phosphate Battery 76.8Wh Offline UPS 600VA

Overview
Quick Details
Warranty: 1year
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Model Number: OKUPS600VA
Phase: Single Phase
Protection: Overvoltage
Weight: 3.7kg
Type: STANDBY
Application: COMPUTER
Product name: Lithium UPS 600va
transfer time: 4-8ms
Wave Form: Modified Sine Wave
Capacity: 60% of rated power
Display: LED/LCD optional
Input voltage: 110v/220v
chargecurrent: 1A
charge period: 8 hours to be full
warrenty: 12 months
Color: Black

Supply Ability
100000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1. Inner: color box;
2. Outer: Standard export carton;
3. Customized package.
Port: Shenzhen

ead Time:

Quantity(Sets) 1 - 100 101 - 1000 >1000
Est. Time(days) 16 20 To be negotiated

MODEL OKUPS600VA OKUPS1000VA OKUPS1200VA
CAPACITY 600VA/360W 1000VA/500W 1200VA/720W
INPUT
Voltage 220VAC
Voltage Range 162-268Vac
Frequency Range 50Hz±1Hz or 60Hz±1Hz (auto sensing)
OUTPUT

Voltage Regulation

(Batt. Mode)

220VAC ±10%

Frequency Range

(Batt. Mode)

50Hz±1Hz or 60Hz±1Hz (auto sensing)
Transfer Time Typical 4-8ms, 13ms max
Waveform (AC. Mode) sine wave
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Voltage 12.8V

Battery capacity

(Lithium iron

phosphate battery)

76.8Wh 70.4Wh 153.8Wh
Backup time 100w load ≈ 30 minutes 100w load ≈ 27 minutes 200w load ≈ 30 minutes
Maximum Charge Current ≈ 1.0 A
PROTECTION
Full Protection short circuit, Overload , Overcharge and overdischarge protection
ALARM
Battery mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 seconds
Fault Continuously sounding
PHYSICAL

Approx. Dimension

D*W*H (mm)

306X86X140
OPERATING ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB( 1 m spacing)
MANAGEMENT
Communication port For choice(USB&RJ45&USB charge)

Our Services
1. OEM&ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warrenty , if it is quality problem , we will provide the parts for free .

Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.

FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 10-30days.

76.8Wh Lithium Iron Phosphate Battery UPS Offline 600VA
