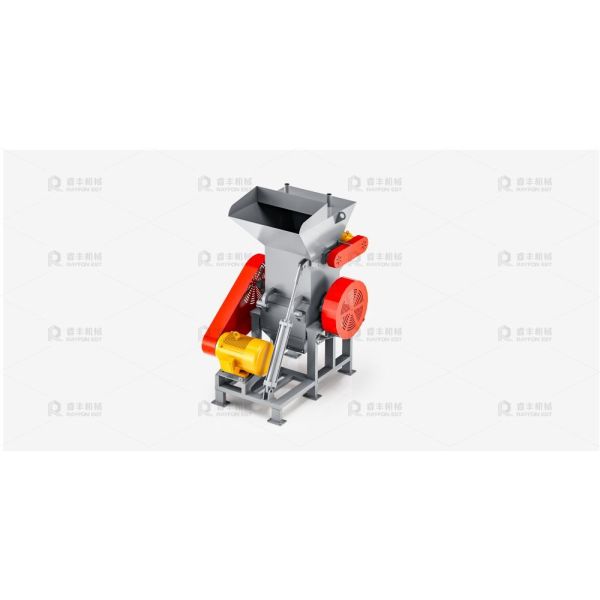

Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
Specifications
Brand Name :
RAYFON
Model Number :
RFSA
Place of Origin :
China
MOQ :
1
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Motor Power :
45-60kW
Fixed Blade :
4pcs
Rotating Blade: :
6pcs, 12pcs
Material :
Carbon Steel/SUS 304
Plastic Type :
PP/PE, PET, hard plastics, HDPE
Function :
crush plastics into small pieces
Screen Aperture :
18-22mm(adjustable)
Blade Holder Structure :
V Shaped
Pressure Method :
Flip Plate Pressing
Inside Plate Thickness :
500mm
Description

High Efficiency Waste Plastic Bottle Recycling Crusher Machine Crushing Equipment

Self Pressure Plastic Bottle Shredder Grinder Crusher StandardFunction:
Efficiently reduces medium-sized and bulk plastic waste into small, uniform granules. Its self-pressure feeding mechanism automatically pulls materials into the crushing chamber, improving throughput and preventing material splash-back.

Key Features:

1.Self-Pressure Feeding Design: Features a unique angled hopper and rotating blades that generate a self-suction force, automatically and steadily drawing materials into the crushing chamber. This eliminates the need for manual forcing, enhances safety, and boosts crushing efficiency.

2.Robust & Durable Structure: The main body is constructed from high-strength steel plates, precision-machined and assembled with high-strength bolts. The solid welded base frame ensures minimal vibration and stable operation under heavy loads.

3.High-Precision Rotor Assembly: The integrated cutter shaft and staggered mounted blades are finished in one CNC machining process, providing excellent dynamic balance, powerful shear force, and clean cutting with low dust generation.

4.Convenient Maintenance: Most of vulnerable parts such as blades are detachable, which is convenient for replacement, and routine cleaning, thereby minimizing downtime.

5.Energy Saving Operation: Features a large, heavy-duty flywheel that increases rotational inertia, ensuring smooth operation, saving energy, and delivering a powerful and steady crushing force.

Self Pressure Plastic Bottle Shredder Grinder Crusher Standard

Equipment Specification:

ITEM UNIT RFSA-6060Y RFSA-9060Y RFSA-1270Y
Motor power kW/HP 30+3/45 45+4/67 75+5.5/110
Machine Length mm 1955 2085 2435
Machine Width mm 1425 1880 2140
Machine Height mm 2490 2575 2750
Chamber Size mm 600*600 900*600 1200*700
Rotating Blades pcs 6 6 12
Fixed Blades pcs 4 4 4
Rotor Diameter mm 540 540 665
Rotor Width mm 600 900 1200
Process Capacity KG/H ≤1000 ≤3000 ≤5000

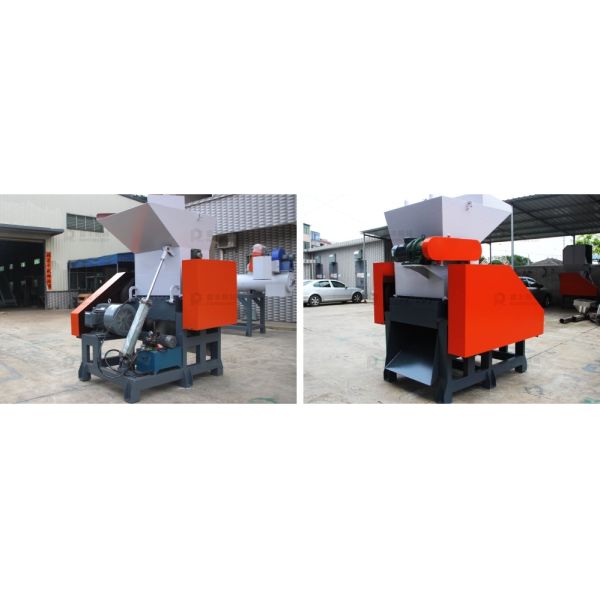

Physical Pictures:

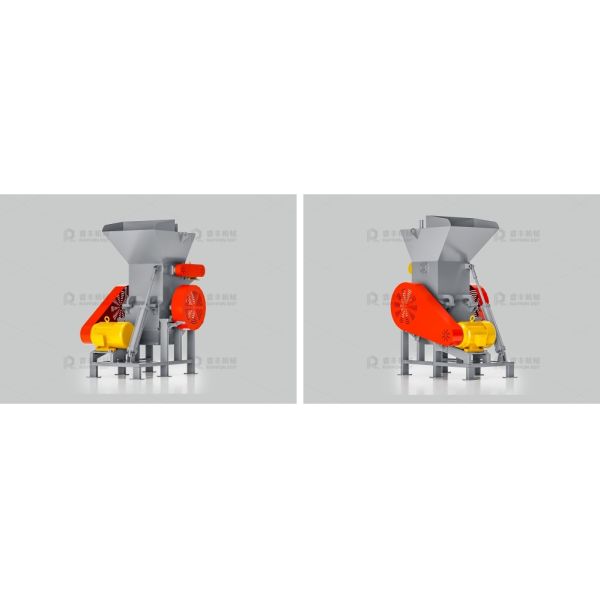

Self Pressure Plastic Bottle Shredder Grinder Crusher Standard

Applications:

All kinds of plastic ,such as PET,PE,PP,HDPE plastics

PET plastic bottle

HDPE daily household waste containers

PP plastic busket, beverage cup

ABS PS Bumper, Plastic Toy car

Self Pressure Plastic Bottle Shredder Grinder Crusher Standard

Self Pressure Plastic Bottle Shredder Grinder Crusher Standard
