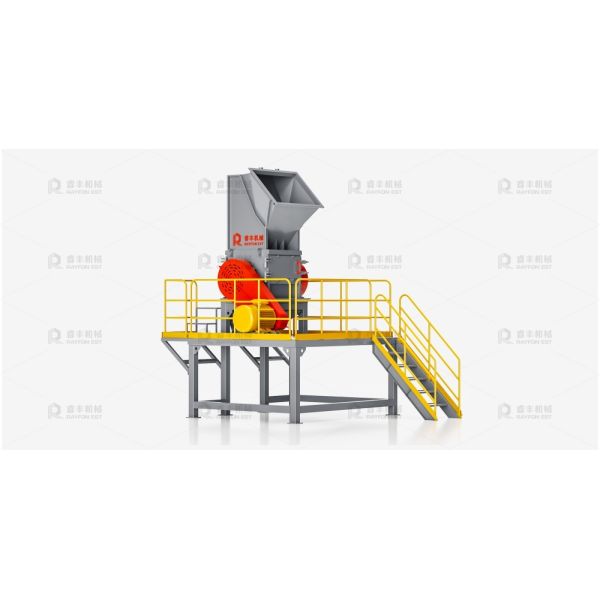

High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
Specifications
Brand Name :
RAYFON
Model Number :
RTSA
Place of Origin :
China
MOQ :
1
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Motor Power :
35-90kw
Fixed Blade :
4pcs
Rotating Blade :
6pcs, 12pcs
Material :
Carbon Steel/SUS 304
Plastic Type :
PP/PE, PET, hard plastics, HDPE
Function :
crush plastics into small pieces
Applicable Plastic :
PP/PE, PET, Hard Plastics, HDPE,ABS,PS
Screen Aperture: :
18-22mm(adjustable)
Description

High Efficiency Waste Plastic Bottle Recycling Crusher Machine Crushing Equipment

High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic RecyclingFunction:
Breaks down large plastic pieces into smaller flakes for easier washing and recycling. It features sharp blades, a robust motor, and a durable hopper for efficient size reduction.

Key Features:

1.The high-efficiency crusher features a rational design, with its main body constructed from high-performance steel that is precision-processed and assembled.
2.High-strength bolts are used for fastening, ensuring a robust and durable structure.
3.It employs a hollow-type cutter holder design with four sets of movable blades driven simultaneously, all finished in one CNC machining process for superior structural stability.
4.The processed flakes are uniform with minimal loss. Multiple screen meshes can be interchanged to meet various requirements.
5.The non-tipping, front-opening door design eliminates the operational inconvenience associated with traditional tilting hoppers for blade replacement.It equipped with side doors, which facilitate maintenance, simplify daily upkeep, reduce downtime, and ensure the convenience and safety of repairs.
6.A forced feeding device is designed to significantly enhance crushing efficiency.

High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling

Equipment Specification:

ITEM UNIT RFSB-8080 RFSB-1210
Motor power kW/HP 45/62 90/123
Machine Length mm 1050 1330
Machine Width mm 1620 2180
Machine Height mm 1600 1675
Chamber Size mm 800*800 1200*1000
Rotating Blades pcs 6 6
Fixed Blades pcs 4 4
Rotor Diameter mm 600 700
Rotor Width mm 800 1200
Process Capacity KG/H ≤3000 ≤5000

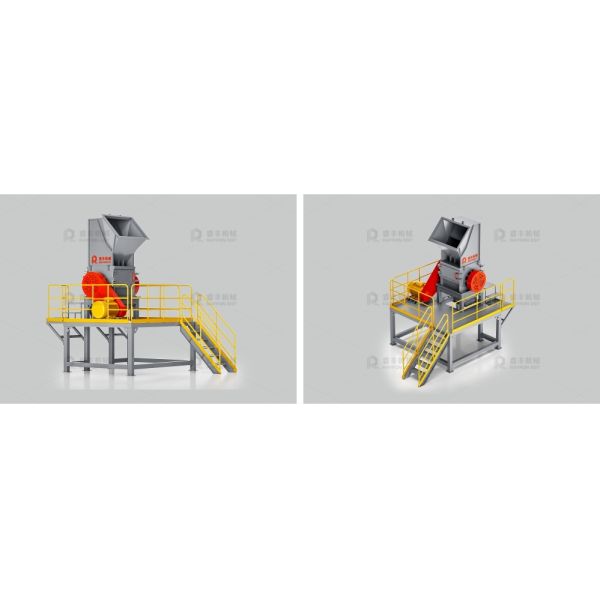

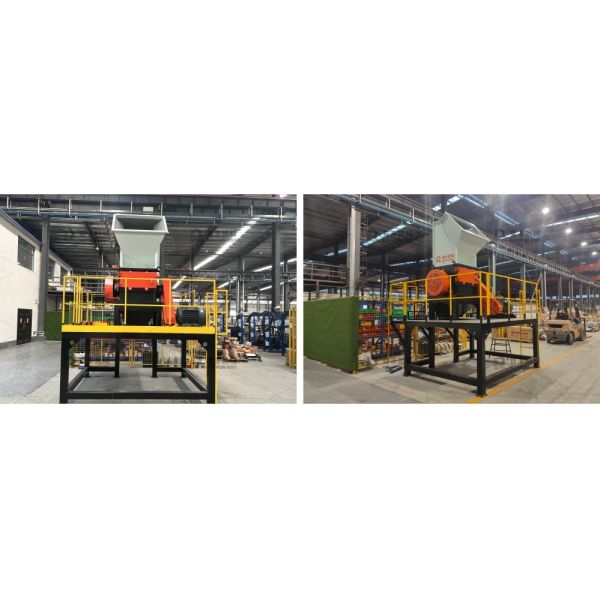

Physical Pictures:

High Efficiency Bottle Grinder/Crusher Machine Robust For Plastic RecyclingApplications:

All kinds of normal hard plastic flakes,such as PET,PE,PP,HDPE plastic flakes and so on

PET plastic bottle

HDPE daily household waste containers

PP plastic busket, beverage cup

ABS PS Toy carHigh Efficiency Bottle Grinder/Crusher Machine Robust For Plastic RecyclingHigh Efficiency Bottle Grinder/Crusher Machine Robust For Plastic Recycling
