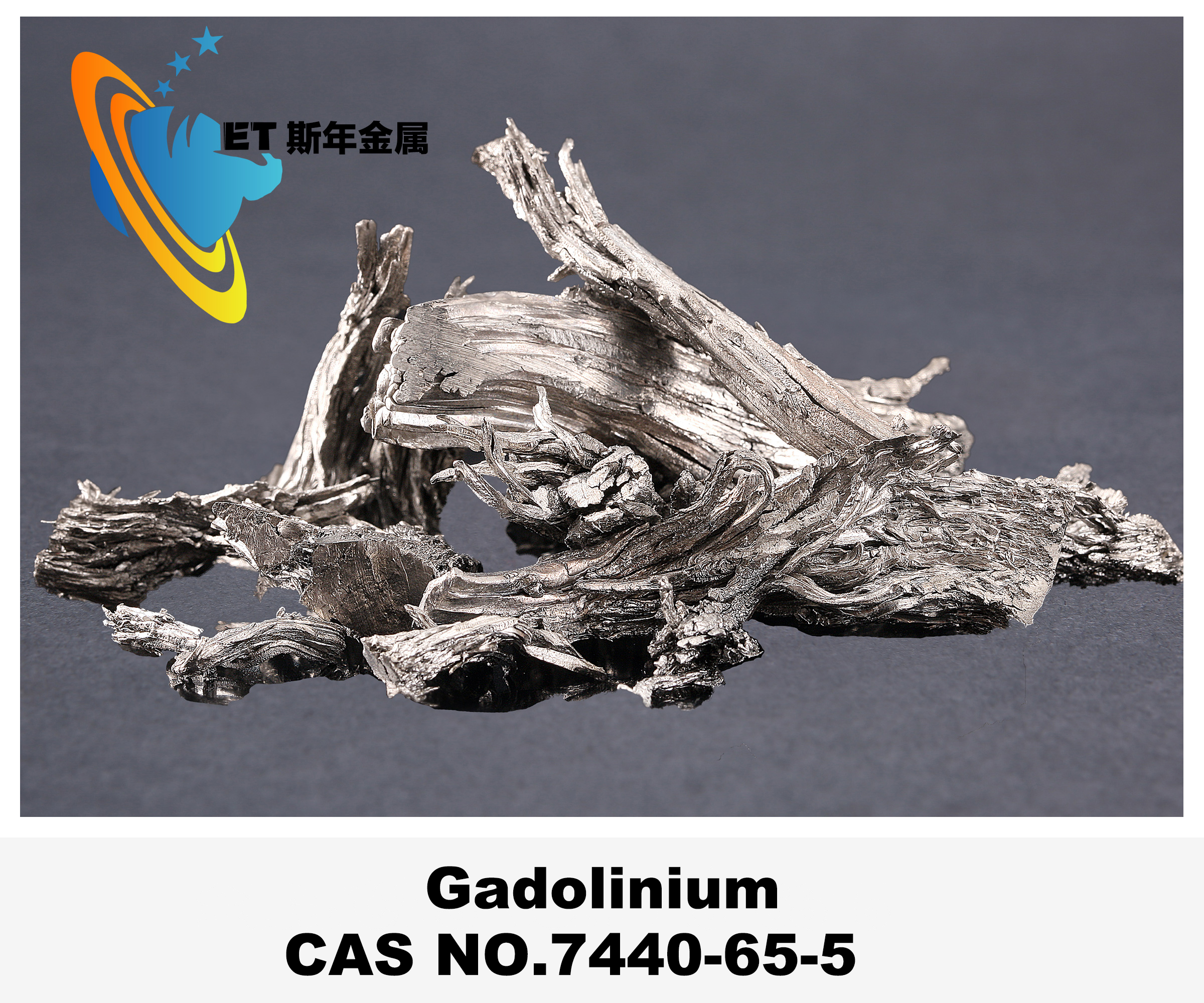

99.99% Gadolinium Gd Rare Earth Metals For Nuclear Control Rods
99.99% Gadolinium Gd Rare Earth Metals For Nuclear Control Rods
Specifications
Supply Ability :
1000 kg
MOQ :
500g
Packaging Details :
0.5-1 kilogram per bottle, 50 kilograms per drum, 500 kilograms per pallet
Delivery Time :
45-60 Workdays
Payment Terms :
T/T
CAS # :
7440-54-2
Molecular Formula :
Gd
EC No. :
231-162-2
Purity :
99.9-99.99%
Molecular Weight :
157.25
Appearance :
Silvery
Melting Point :
1312°C
Boiling Point :
3250°C
Density :
7901 kg/m³
Electrical Resistivity :
140.5 microhm-cm @ 25°C
Electronegativity :
1.1 Paulings
Heat of Fusion :
3.70 Cal/g·mole
Heat of Vaporization :
72 K-Cal/g·atom at 3266°C
Poisson's Ratio :
0.259
Specific Heat :
0.055 Cal/g/K @ 25°C
Tensile Strength :
N/A
Thermal Conductivity :
0.105 W/cm/K @ 298.2 K Thermal
Thermal Expansion :
(100°C, poly) 9.4 µm/(m·K)
Vickers Hardness :
570 MPa
Young's Modulus :
(α form) 54.8 GPa
Description

Gadolinium (Gd): Advanced Magnetic Refrigeration Tech, Bubble Memory Storage, Nuclear Control Rods System

Gadolinium is a silvery-white malleable metal with melting point 1312°C, boiling point 3250°C, density 7.901 g/cm³. Exhibits magnetism at room temperature. Relatively stable in dry air, but tarnishes in moist air.

Applications

  1. Industrial magnetic refrigeration technology
  2. Magnetic bubble memory materials
  3. Control rods and neutron absorbers in nuclear reactors

Product Series

Product

Product Code

Safety Data

Technical Data

Gadolinium 99.9%

ET-GdM-01

 Gadolinium.pdf Gadolinium Metal 99.9.pdf

Gadolinium 99.99%

ET-GdM-02

 Gadolinium Metal 99.99.pdf

Health and Safety Information

Signal Word N/A
Hazard Statements N/A
Hazard Codes N/A
Precautionary Statements P231+P232
Flash Point N/A
Risk Codes N/A
Safety Statements N/A
RTECS Number N/A
Transport Information UN 3208 4.3/PG 3
WGK Germany 3

Packaging Specifications

  • Standard packaging: 50 kg/drum, 500 kg/pallet, ton bags
  • Sample packaging: 500 g/bag, 1 kg/bottle

Production Method
After separating gadolinium from other rare earths via ion exchange/solvent extraction, metallothermic reduction prepares metallic gadolinium. Unlike calcium reduction, lithium reduction occurs in gas phase. The lithium reduction reactor has two heating zones, combining reduction and distillation. Anhydrous GdCl₃ is placed in the upper titanium crucible (also serving as distillation chamber), with lithium metal in the lower crucible. The stainless steel vessel is evacuated to 7Pa before heating. At 1000°C, GdCl₃ vapor reacts with lithium vapor, depositing gadolinium particles in the lower crucible. Post-reaction, only the lower crucible is heated to distill LiCl upward. The 10-hour process requires 99.97% pure lithium and doubly distilled anhydrous GdCl₃ for high-purity gadolinium.
