99.9%-99.99% Purity Erbium Er Nuclear Reactor Control Material CAS 7440-52-0
99.9%-99.99% Purity Erbium Er Nuclear Reactor Control Material CAS 7440-52-0
Specifications
Supply Ability :
1000 kg
MOQ :
500g
Packaging Details :
0.5-1 kilogram per bottle, 50 kilograms per drum, 500 kilograms per pallet
Delivery Time :
45-60 Workdays
Payment Terms :
T/T
CAS # :
7440-52-0
Molecular Formula :
Er
EC No. :
231-160-1
Purity :
99.9-99.99%
Molecular Weight :
382.56
Appearance :
Silvery
Melting Point :
1,497°C
Boiling Point :
2,868°C
Density :
9,066 kg/m³
Electrical Resistivity :
107.0 μΩ·cm @ 25°C
Electronegativity :
1.2 (Pauling scale)
Heat of Fusion :
4.10 cal/(g·mol)
Heat of Vaporization :
67 kcal/(g·atom) @ 2,863°C
Poisson's Ratio :
0.237
Specific Heat Capacity :
0.0401 cal/(g·K) @ 25°C
Tensile Strength :
N/A
Thermal Conductivity :
0.145 W/(cm·K) @ 298.2 K
Thermal Expansion :
12.2 μm/(m·K) (poly, rt)
Vickers Hardness :
589 MPa
Young's Modulus :
69.9 GPa
Description

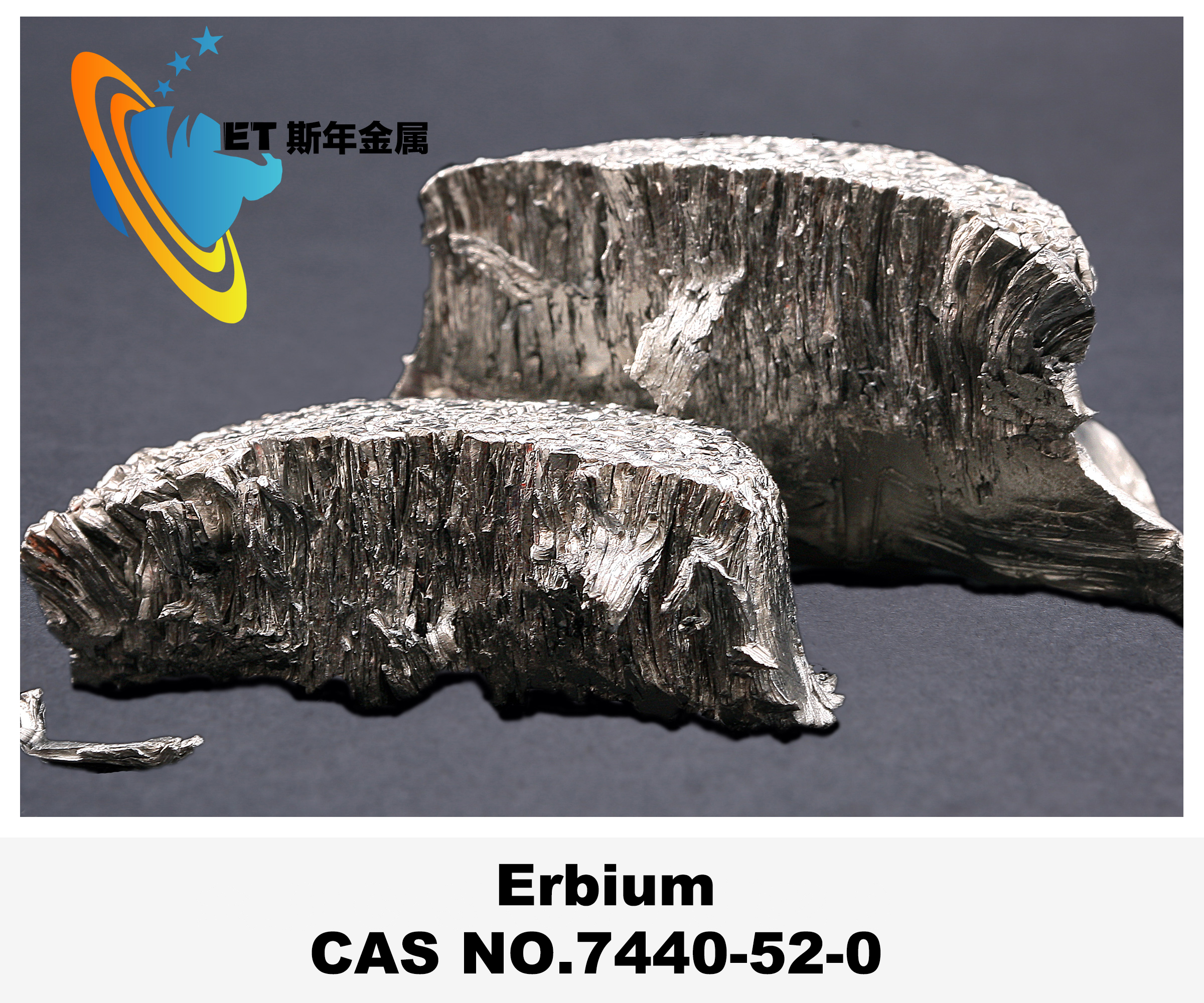

Erbium (Er): Nuclear Reactor Control Material, Activator for Fluorescent Materials

Erbium is a silver-white metal with element symbol Er. It melts at 1497°C, boils at 2868°C, and has a density of 9.006 g/cm³. Erbium is antiferromagnetic at low temperatures, becomes strongly ferromagnetic near absolute zero, and exhibits superconductivity. At room temperature, it slowly oxidizes in air and water, forming rose-red erbium oxide.

Applications

  1. Used as control material in nuclear reactors.
  2. Can serve as an activator for certain fluorescent materials.

Product Series

Product

Product Code

Safety Data

Technical Data

Erbium 99.9%

ET-ErM-01

 Erbium.pdf Erbium Metal 99.9.pdf

Erbium 99.99%

ET-ErM-02

 Erbium Metal 99.99.pdf

Health and Safety Information

Signal Word Danger
Hazard Statements N/A
Hazard Codes F
Precautionary Statements P210-P222-P231+P232-P370+P378-P422-P501
Flash Point Not applicable
Risk Codes N/A
Safety Statements N/A
RTECS Number N/A
Transport Information UN 2813 4.3/PG 1
WGK Germany 3
GHS Pictogram 99.9%-99.99% Purity Erbium Er Nuclear Reactor Control Material CAS 7440-52-0

Packaging Specifications

  • Standard packaging: 50 kg/drum, 500 kg/pallet, ton bags
  • Sample packaging: 500 g/bag, 1 kg/bottle

Production Method

After separating erbium from other rare earth elements via ion exchange or solvent extraction, metallic erbium can be prepared through metallothermic reduction. Unlike calcium reduction of rare earth chlorides, lithium reduction occurs in the vapor phase.

The lithium reduction reactor features two heating zones, combining reduction and distillation in one unit. Anhydrous erbium chloride is placed in the upper titanium crucible (also serving as ErCl₃ distillation chamber), while lithium metal reductant is loaded in the lower crucible. The stainless steel reaction vessel is evacuated to 7Pa before heating.

At 1000°C, maintained for a specific duration, ErCl₃ vapor fully reacts with lithium vapor. Reduced erbium metal particles deposit in the lower crucible. Post-reduction, only the lower crucible is heated to distill LiCl to the upper crucible. The complete reduction process typically requires about 10 hours.

For high-purity erbium :

  • Use 99.97% ultra-pure lithium reductant
  • Employ doubly distilled anhydrous ErCl₃
