Railway Standard Gauge Hopper Wagon AAR / TB Brake 1435mm Track Gauge for Carrying Coal, Grain
Railway Standard Gauge Hopper Wagon AAR / TB Brake 1435mm Track Gauge for Carrying Coal, Grain
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Railway Hopper Wagon
Quantity of unload door :
4
Max. Operating Speed :
50°
Brake Type :
AAR or TB
Track Gauge :
1435mm
Capacity :
65m3
Description

Hopper Wagon Railway Hopper Wagon Standard Gauge Coal Hopper Wagon Freight Wagons

Description of Coal Hopper Wagon:

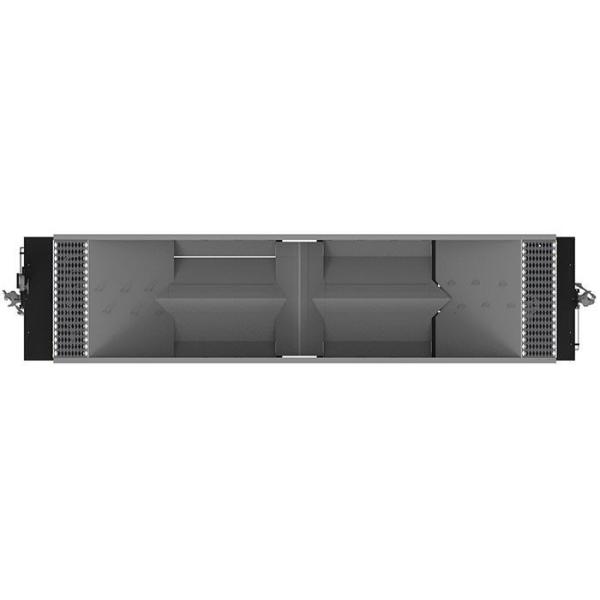

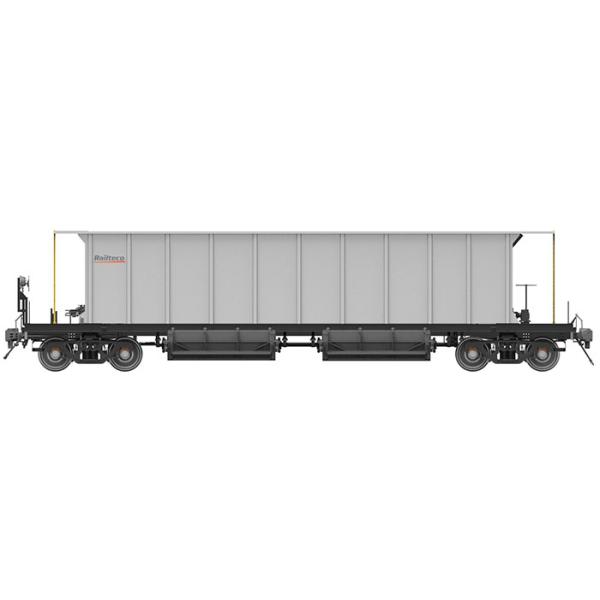

This open hopper wagon is special designed for carrying bulk goods such as coal and ore. Wagon unloading is done via two pairs of doors. The doors are operated pneumatically. The air which operates doors is taken from the train brake pipe. The doors can also be operated by manpower. The wagon is loaded from the open top and unloaded from two sides of wagon.

Parameters of Coal Hopper Wagon:

Tare weight ≤24t
Payload 60t
Capacity 65m3
Axle load As per client
Track gauge As per client
Maximum operating speed 80km/h
Length over coupler 14730mm (approximately)
Rmin (single wagon) 70m
Quantity of unload door 4
Bottom door opening 520mm (approximately)
End wall angle 50°
Break type AAR or TB
Coupler type As per client
Bogie type Cast type
Operating type of bottom door Pneumatically and manually

Railway Standard Gauge Hopper Wagon AAR / TB Brake 1435mm Track Gauge for Carrying Coal, Grain
