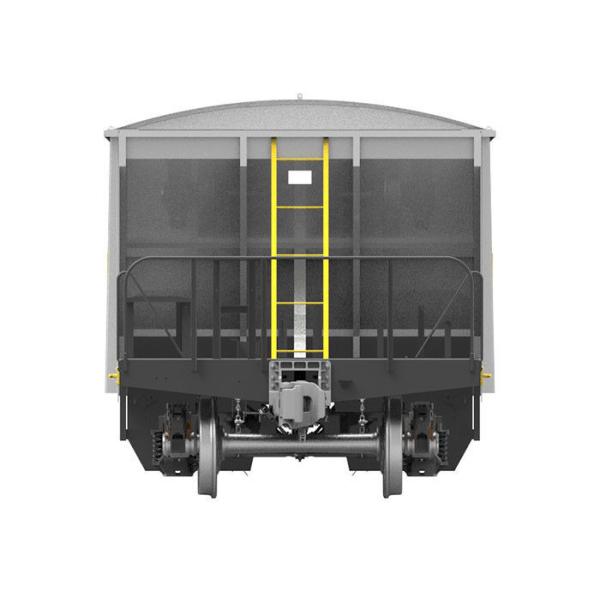

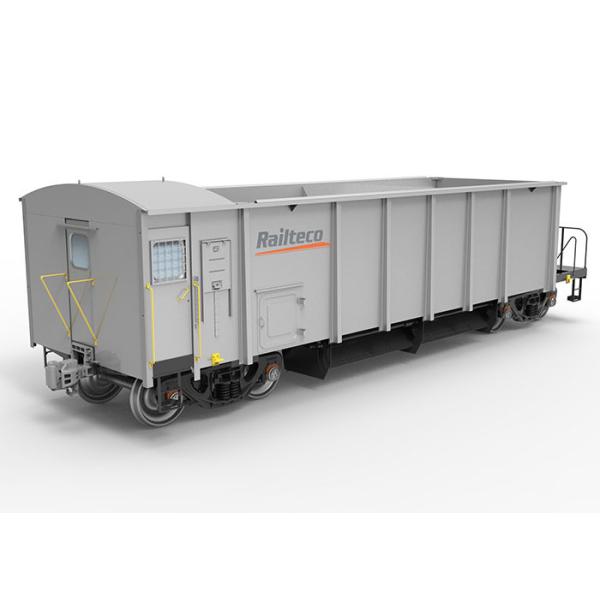

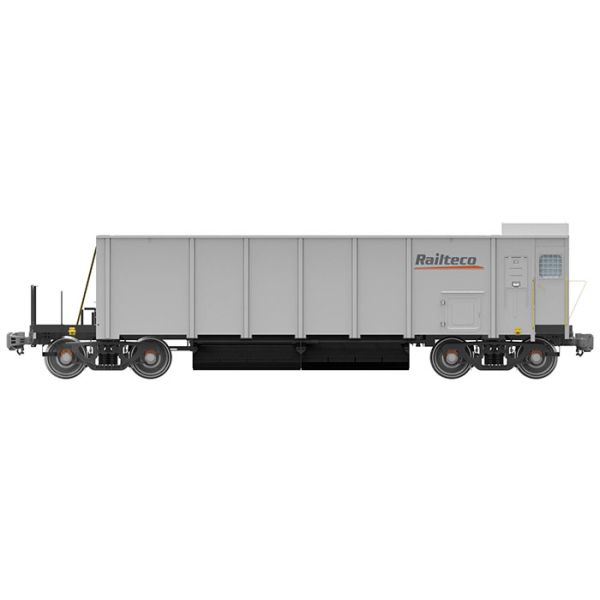

Railway Ballast Hopper Wagon , Open Top Hopper Car 36m3 Custom Axle Load
Railway Ballast Hopper Wagon , Open Top Hopper Car 36m3 Custom Axle Load
Railway Ballast Hopper Wagon , Open Top Hopper Car 36m3 Custom Axle Load
Railway Ballast Hopper Wagon , Open Top Hopper Car 36m3 Custom Axle Load
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Hopper Wagon
Axle Load :
As per client
Max. Operating Speed :
80km/h
Brake Type :
AAR or TB
Track Gauge :
1435mm
Capacity :
36m3
Description

Hopper Wagon Railway Hopper Wagon railroad Ballast Hopper Wagon Freight Wagons

Description of Railway Hopper Wagon:

This self-discharging open hopper wagon is suitable for carrying bulk goods such as ballast and ore. Wagon unloading is done via two left doors, two right doors and two center doors. The doors are operated pneumatically. The air which operates doors is taken from the train brake pipe. The left doors and right doors can also be operated by manpower. The wagon is loaded from the open top and discharged either on the two sides of rails also between rails. The wagon design meets the requirements of AAR and TB standard.

The wagon is loaded from the open top.

The goods is discharged either on the two sides of rails also between rails.

The range of axle-load is from 16t to 23t according to client’s requirement.

Parameters of Railway Hopper Wagon:

Tare weight ≤24t
Payload 60t
Capacity 36m3
Axle load As per client
Track gauge As per client
Maximum operating speed 80km/h
Length over coupler 12038mm (approximately)
Rmin (single wagon) 70m
Quantity of unload door 6 (2 left doors, 2 right doors, 2 center doors)
Bottom door opening 190mm (approximately)
End wall angle 36.5°
Break type AAR or TB
Coupler type As per client
Bogie type Cast type
Operating type of bottom door Pneumatically and manually
