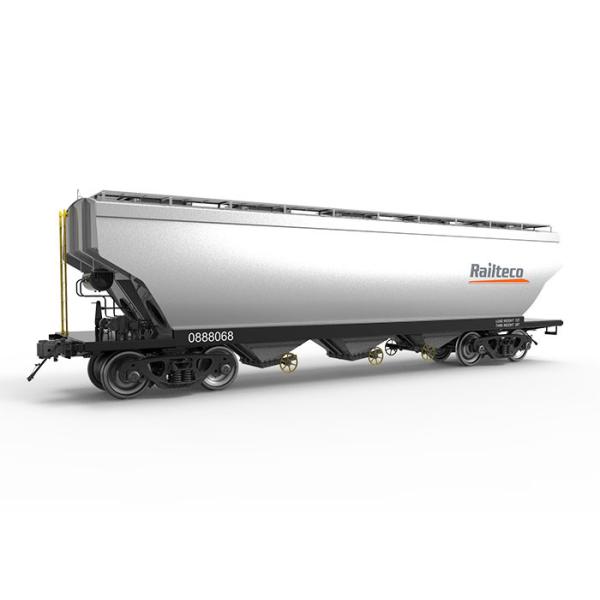

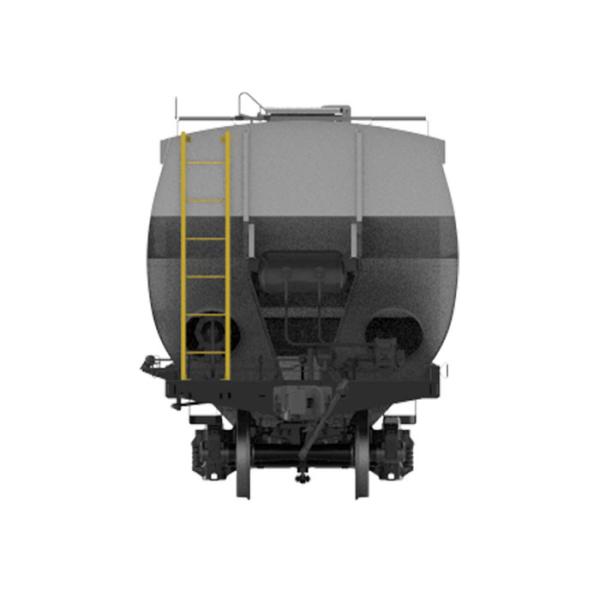

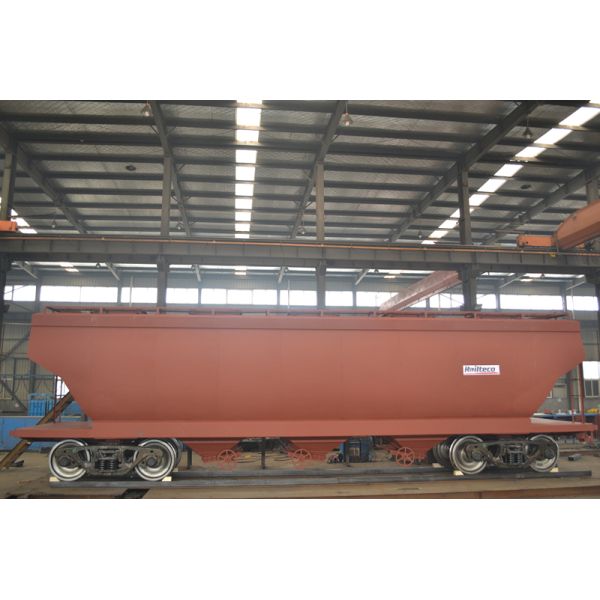

Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard
Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard
Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard
Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Grain Hopper Wagon
Capacity :
66 m3
Max. operating speed :
80km/h
Brake type :
AAR
Track gauge :
1067mm
Bogie type :
Cast
Description

Hopper Wagon Railway Hopper Wagon Railroad Grain Hopper Wagon Freight Wagons AAR / TSI

Description of Railway Hopper Wagon:

The wagon is suitable for carrying bulk goods, such as grain, corn, soya etc., which need to be protected against weather conditions. Loading hatches are covered with five independent covers, unloading hatches are covered with sliding doors. The wagon is loaded from the top after the top covers are opened. Top covers are manually operated from wagon top platform. The wagon is unloaded from the bottom hatches. Sliding doors are manually operated from both wagon sides, each door separately. The goods are unloaded between the rails. The wagon design meets the requirements of AAR standard.

Parameters of Railway Hopper Wagon:

Tare weight ≤20t
Payload 54t
Capacity 66m3
Axle load 18.5t
Track gauge 1067mm
Maximum operating speed 80km/h
Length over coupler 13095mm(approximately)
Quantity of load hatch 5
Size of load hatch 1094mm*600mm
Quantity of unload hatch 3
Size of unload hatch 685mm*325mm
Angle of hopper plate
Horizontal 43°
Longitudinal 38°
Break type AAR
Coupler type As per client
Bogie type Cast type
Operating type of top cover manually
Operating type of bottom door manually

Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard

Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard

Railway Hopper Wagon , Railroad Grain Hopper Cars AAR / TSI Standard
