Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Rail Cargo Wagon
Load Weight :
180 T
Gauge :
1435mm
Max. Operating Speed :
12km/h
Tare Weight :
≤35t
Total Driving Power :
≥90kW
Description

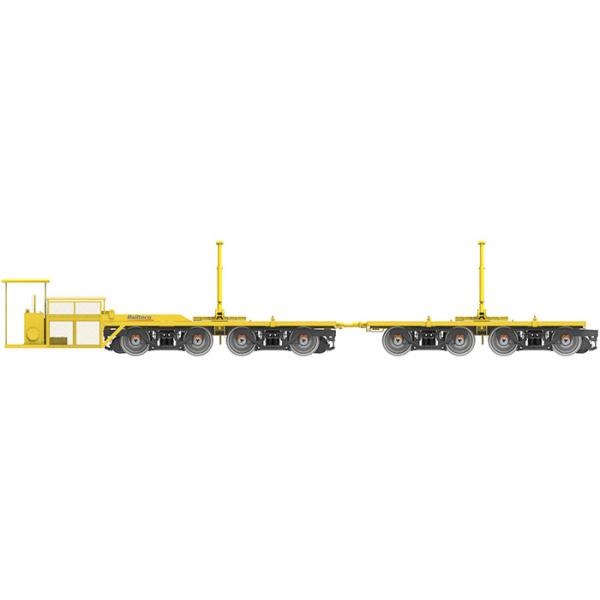

Rail Cargo Wagon Concrete Beam Carriage Vehicle Standard Gauge Transportation of Concrete Beams

Description of Rail Cargo Wagon Concrete Beam Carriage Vehicle:

The vehicle is used by cooperating with 180t bridging machine on Chinese standard gauge. It can be used to transport the bridge 2201, 2101, and all kinds of railway concrete bridge. It can also meet the requirement of feeding beam for 180t bridging machine such as TJ180.

The vehicle is composed of front car and rear car. The rear car have a power cabin and is driven and supported by two electric-powered bogies. The front car is driven and supported by one electric-powered bogie and one non-powered bogie.

Parameters of Rail Cargo Wagon Concrete Beam Carriage Vehicle:

Tare weight ≤35t
Load weight 180t
Max. grade ability (loaded) 20‰
Max. operating speed(empty) 0-12km/h
Max. operating speed(loaded) 0-6km/h
Min. horizontal curve radius 180m
Total driving power ≥90kW
Gauge 1435 mm
Fixed wheelbase 1750mm
Max. Width 2500mm

Concrete Beam Railway Freight Wagon 12km/h Maximum Operating Speed
