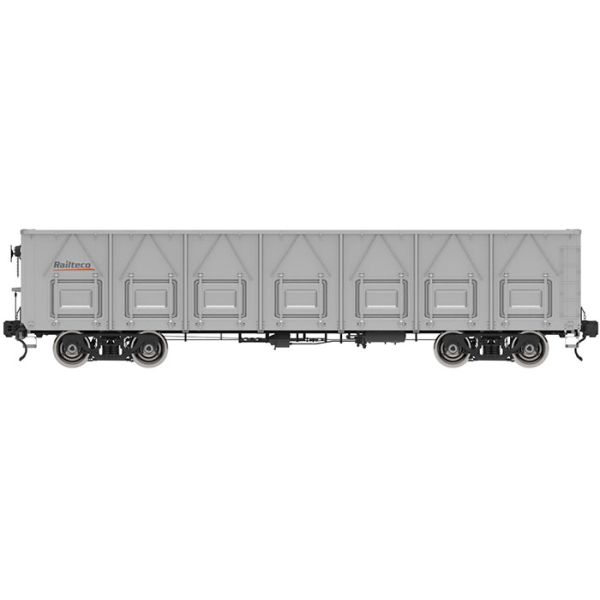

Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Rail Cargo Open Top Wagon
Fixed Wheelbase :
1574.8mm
Axle Load :
20.5 T
Load Capacity :
63 T
Max. Operation Speed :
80km/h
Gauge :
1067mm
Description

Rail Cargo Wagon Railway Open Top Coal Wagon Mineral Wagon Rail Wagon For Coal Freight Car Wagon For Coal

Description of Rail Cargo Open Top Coal Wagon:

This is a special open top wagon for coal transportation and can be used for mechanical unloading operations of a tipper.

Main Characteristics of Rail Cargo Open Top Coal Wagon:

1)The wagon adopts high-strength steel with a yield strength of 450 MPa, and has the characteristics of light weight and heavy load;

2)The wagon adopts high-strength steel with light weight, heavy load and yield strength of 450 MPa;

3)The wagon can meet the transportation requirements of 10000-ton Heavy-haul Train.

Parameters of Rail Cargo Open Top Coal Wagon:

Gauge 1067mm
Distance between two coupler connecting wire 26400mm
Length 13200mm
Center distance of core plate 9000mm
Max. Height(unloaded) 3210mm
Max. Width 3020mm
Fixed wheelbase 1574.8mm
Diameter of wheel 762mm
Height from track surface to coupler center line (unloaded) 889m
Axle load 20.5t
Tare weight 19t
Load capacity 63t
Volume capacity 70.9m³
Max. Operation speed 80km/h
Min. Curve radius 60m

Heavy Load Rail Cargo Wagon , Open Top Wagon Yield Strength 450 MPa
