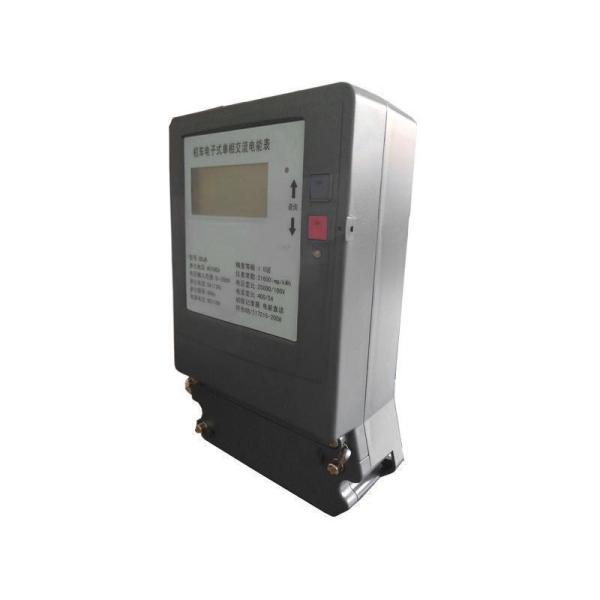

5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
Specifications
Brand Name :
HTR
Model Number :
HTJB
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Rated Voltage :
110 VAC
Voltage Input Range :
0–150 VAC
Rated Current :
5 A (maximum input current: 12 A)
Power Supply Voltage :
110 VDC
Reference Frequency :
50 Hz
Meter Constant :
6400 imp/kWh
Power Consumption :
≤ 4 VA
Display Type :
LCD display
Description

Products Description

The electronic single-phase AC energy meter is a fully digital device designed for accurate measurement of both forward and reverse active and reactive energy in single-phase AC systems. In addition to precise energy metering, the device supports intelligent energy management based on crew dispatch or duty cycles, making it well-suited for applications in locomotives and rail vehicles.

With its fully electronic architecture, the meter offers high reliability, stable performance, and resistance to electromagnetic interference. It enables real-time monitoring and efficient energy usage tracking, contributing to operational safety and cost-effective power management in modern railway systems.


Specification

Item

Specification

Rated Voltage

110 VAC

Voltage Input Range

0–150 VAC

Rated Current

5 A (maximum input current: 12 A)

Power Supply Voltage

110 VDC

Reference Frequency

50 Hz

Meter Constant

6400 imp/kWh

Voltage Ratio

25000/100

Current Ratio

400/5

Accuracy Class

Active energy: Class 1.0; Reactive energy: Class 2.0;
Other measurements: Class 1.5

Starting Current

0.02 Ib

Power Consumption
(Voltage Circuit)

≤ 0.1 W

Power Consumption
(Current Circuit)

≤ 4 VA

Display Type

LCD display

Meter Type

Primary energy meter with direct reading

Maximum Cumulative
Energy Display

124,275,677 kWh
