Specifications
Brand Name :
QINWEIYB
Model Number :
QWYB-UZ600
MOQ :
1Set
Price :
Negotiable
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
100PCS/Month
Product Name :
Magnetic Flap Level Gauge
Output Signal :
4-20 mA / Reed Switch / Hall Effect Sensor
Accuracy :
±1 mm to ±5 mm
Measure Menttype :
Liquid Level Measurement
Installation Type :
Vertical Mounting
Measurement Range :
0-10 meters (varies by model)
Operating Pressure :
Up to 10 MPa
Power Supply :
24 V DC (typical)
Protection Rating :
IP65 / IP67
Operating Temperature :
-40°C to 150°C
Description

Magnetic Flap Level Gauge 300-15000mm Range 2.5MPa Pressure

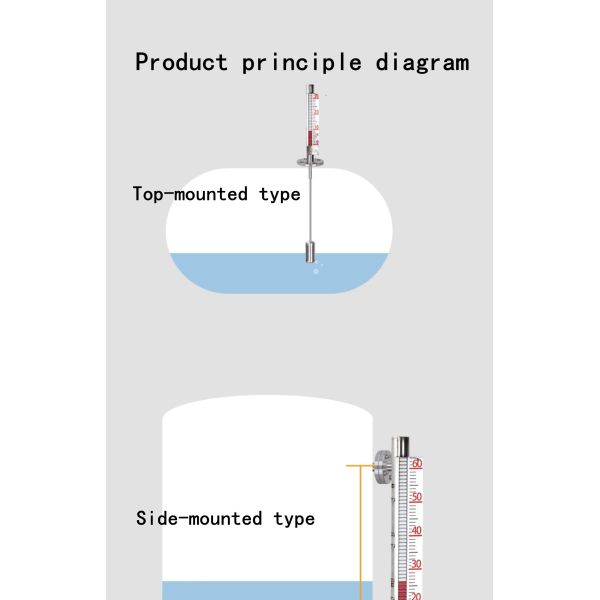

Magnetic flap level gauge with remote transmission, magnetic switch float top-mounted magnetic flap water level gauge, magnetic flap switch.

The magnetic flap level gauge operates based on the magnetic coupling principle and is an instrument used to output control liquid level signals. It is installed on the extended pipe outside the tank or trough, and the liquid level inside the tank or trough can be clearly indicated by the flap indicator. A magnetic switch can also be added to the outside of the bypass pipe to serve as an electrical contact signal output, or a liquid level transmitter can be installed for remote liquid level signal transmission and liquid level control.

It is widely applicable to various occasions. It is suitable for medium detection, remote observation and control of all kinds of towers, tanks, troughs, spherical containers and boilers, such as reservoirs, crude oil storage tanks, fuel tanks, juice factories, tomato paste storage tanks, chemical material storage warehouses, etc. It is durable and suitable for high temperature/high pressure/strong corrosion/high viscosity media.

Product Name Magnetic Flipping Plate Level Gauge
Measurement Range 300 - 15000mm
Accuracy ±10mm, ±16mm
Diameter of Flipping Plates 10mm, 16mm
Working Pressure ≤2.5MPa (Custom design available for pressures above 2.5MPa); Anti-corrosion type: ≤1.0MPa
corrosion type ≤1.0MPa
Medium Density ≥0.45g/cm³
Density Difference of Medium ≥0.15g/m³ (For interface measurement)
Medium Temperature -20°C to +250°C
Medium Viscosity ≤0.4Pa.S For media with high viscosity or those prone to crystallization at low temperatures, a heated jacketed type level gauge can be selected based on user requirements.
Connection Flange Size DN20, PN1.0 (Metric)

Reference Table of Liquid Medium Density and Float Distance (Reference Data)

Due to the different densities of the medium, the lengths of the floats also vary. Please reserve a certain installation space.

Liquid medium density: (g/cm³) Submerged cylinder distance (mm) Typical examples of liquid media
0.45 - 0.6 450 - 600 Liquefied petroleum gas,liquid nitrogen
0.61 - 0.74 300 - 500 Gasoline,butadiene
0.75 - 0.85 250 - 300 Methanol,light oil
0.86 - 0.99 220 - 250 Propanol,beer
1.0 - 1.10 200 - 220 Water,acetic acid
1.11 - 1.25 170 - 200 Hydrochloric acid,tar
1.26 - 1.39 160 - 170 Liquid caustic soda,20% dilute sulfuric acid
1.40 - 1.59 150 - 160 Liquid chlorine,chloroform
1.60 - 2.0 120 - 150 98% sulfuric acid,fluorine oil

National standard flange, sturdy and durable: 16mm thick forged flange plate
Seamless steel pipe one-piece molding: effectively eliminates the risk of liquid splashing under high pressure
High-quality magnet, strong magnetic force: longer service life, magnetic flip board internal float ball
