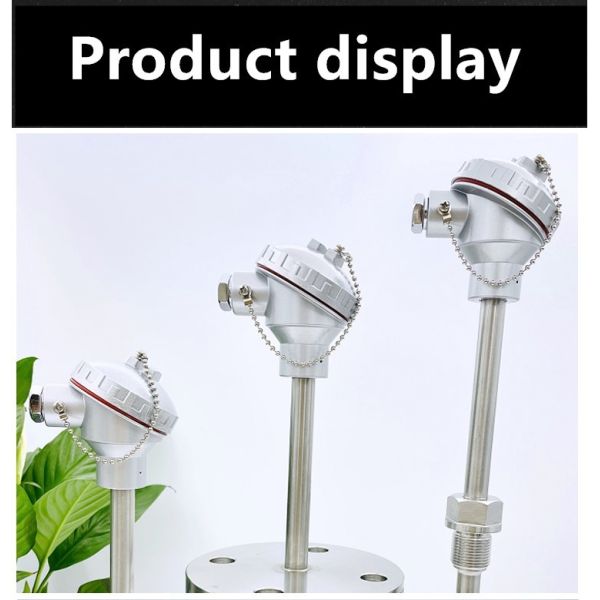

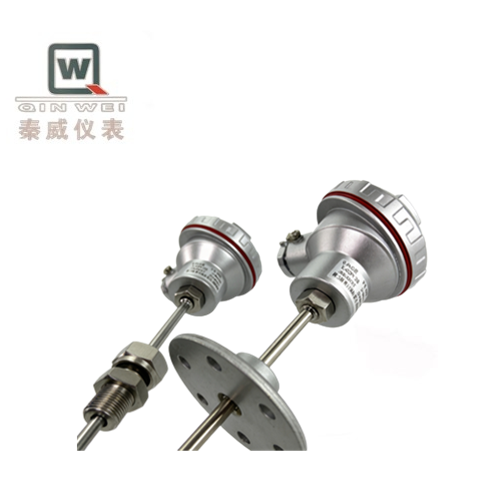

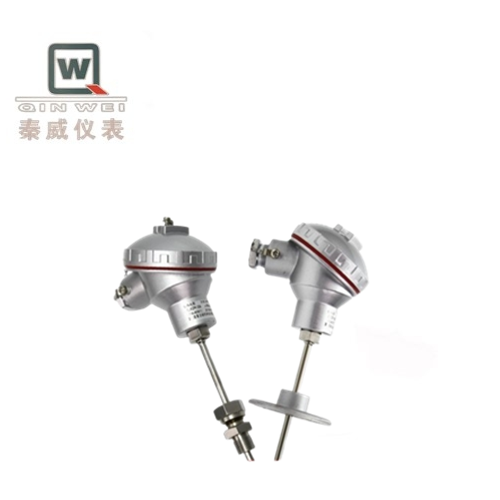

Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
Specifications
Brand Name :
QINWEIYB
Model Number :
QW-SLS67
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Protection Tube :
Stainless steel
Package :
Carton
Input Signal :
PT100
Temperature Accuracy :
±0.2°℃@25°℃
Communication Protocol :
HART
Charging Voltage :
DC5V
Probe Type :
Stick
Sensing Element :
NDIR
Electrical Connection :
Screw Terminal
Condition :
Original 100%
Description

High-temperature resistant K-type thermocouple, PT100 temperature sensor probe, thermal resistance temperature transmitter, platinum-rhodium thermocouple

A thermal resistor is a high-precision temperature sensor that measures temperature by utilizing the characteristic of metal resistance varying with temperature.

It has a wider range of applications and has been used for a long time in industries such as steel, chemical, cement, power generation, medical, glass, and ceramics. For long-term temperature measurement above 1000 degrees, it is recommended to use 2520 high-temperature resistant material or 310S stainless steel protective tube.

Product Name PT100 Thermal Resistance Temperature Sensor
Model Assembly Type WRN; Armored Type WRNK
Installation Method 1. Direct Insertion 2. Threaded 3. Flanged 4. Others
Measurement Range 0 - 1100°C
Diameter of Assembly Type Ф16MM, Ф20MM, ФOthers
Diameter of Armored Type Ф3MM, Ф5MM, Ф6MM, Ф8MM, ФOthers
Material Default 304 Stainless Steel, Customizable to Other Materials as Per Usage Requirements
Number of Thermocouple Wires Single Wire, Double Wire
  • Waterproof and rust-proof wiring box: stable performance, sturdy and durable, long service life
  • Wiring method: default two-wire system, can be made into four-wire system

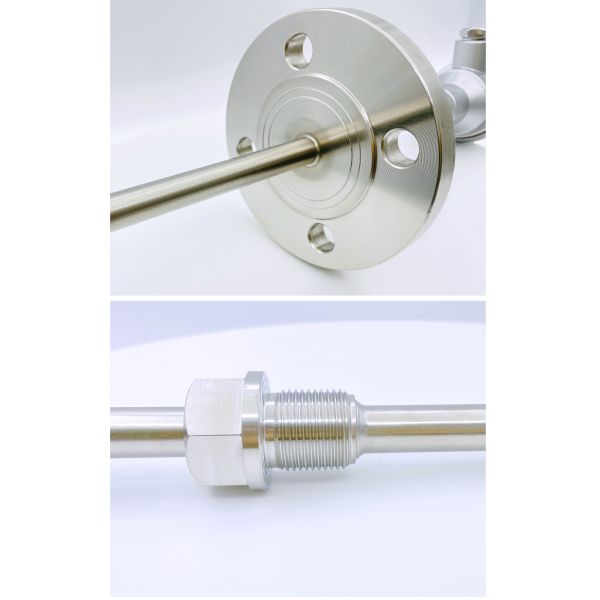

  • Various pipe fittings, high-frequency welding: stainless steel material, not easy to rust, more stable temperature measurement

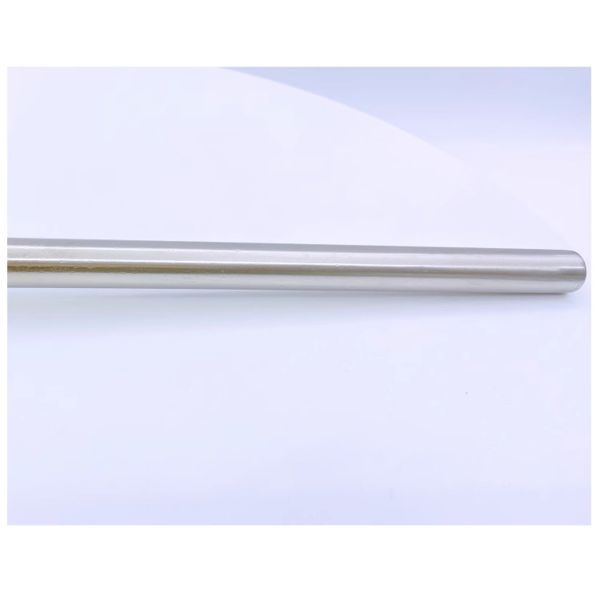

  • High-temperature resistant stainless steel pipe: high temperature resistance, fast response, high precision, more stable performance
Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe Thermal Resistance Temperature Transmitter PT100 Temperature Sensor Probe
