Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Dust Concentration Meter With On-site Direct Reading And Over-limit Alarm
Specifications
Model Number :
YRF100A
Alarm Mode :
Sound + Vibration
Price :
Negotiable
Target Gas :
PM2.5, PM10 Particulate Matter
Type :
Dust PM Monitor
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Measurement Range :
0–50 mg/m³
Place of Origin :
China
MOQ :
1Set
Delivery Time :
5-8 work days
Customization Services :
OEM, ODM, OBM, Software Reengineering
Power Supply :
Ui: 24V, Li: 300mA
Packaging Details :
Carton or wooden box
Material :
Die-cast Aluminum
Brand Name :
QINWEIYB
Product Name :
Wall-mounted Dust Concentration Monitor
Accuracy Grade :
High Precision
Dimensions :
230 × 141 × 64 mm
Description

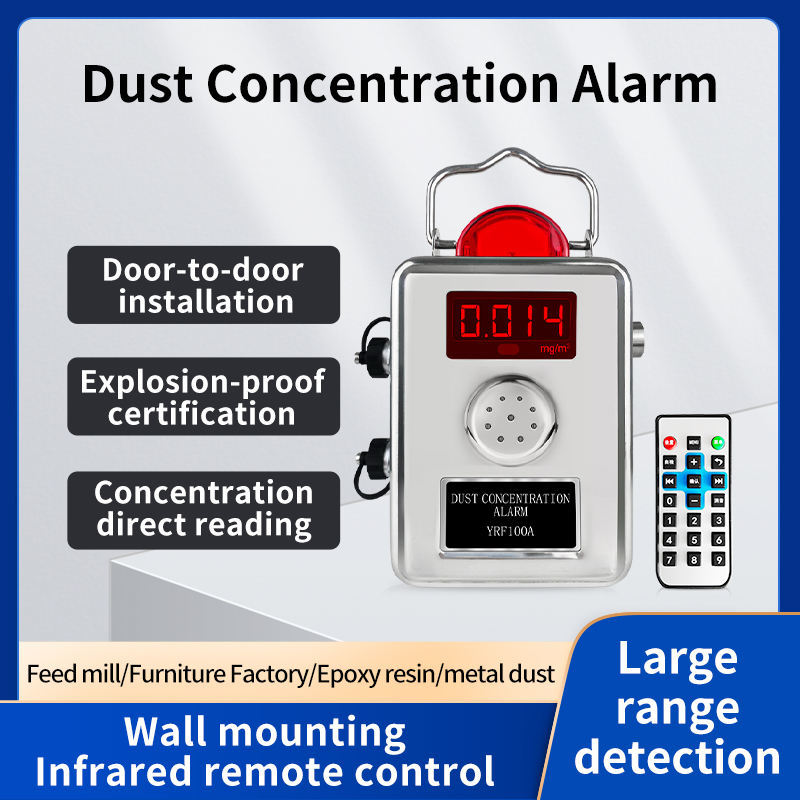

Product Overview

The dust detector is primarily used to measure the concentration of dust in ambient air. Based on laser light scattering detection technology, it continuously and real-time monitors the concentration of suspended particulate matter in the air, providing on-site digital readouts and audible/visual alarms when levels exceed limits. It is suitable for workshops and industrial sites with combustible dust, helping prevent dust explosions and meeting environmental protection and workplace safety regulations. The device features a stainless steel housing and supports both wall-mounted and handheld installation options.

Technical Specifications
Target Gas PM2.5, PM10 Particulate Matter
Accuracy Grade High Precision
Material Die-cast Aluminum
Customization Services OEM, ODM, OBM, Software Reengineering
Model YRF100A
Power Source Electric
Model YRF100A Type
Measurement Range 0–50 mg/m³
Display Method Digital Tube Direct Reading
Dimensions 230 × 141 × 64 mm
Power Supply Ui: 24V, Li: 300mA
Type Dust PM Monitor
Alarm Mode Sound + Vibration
Product Name Wall-mounted Dust Concentration Monitor
Alarm Mode Sound and Visual Alarm
Communication RS485 / 4–20 mA
Typical Application Scenarios

Workshops and facilities with dust pollution and explosion risks, such as wood processing plants, furniture factories, metal polishing workshops, aluminum and magnesium powder workshops, feed processing plants, flour mills, pharmaceutical manufacturing areas, sand and gravel yards, coal storage sheds in coal mines, cement plants, plastic processing facilities, lithium battery powder workshops, and construction sites with high-dust emission zones.
