Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Industrial Explosion-Proof Multi-Parameter Composite Gas Detector (Fixed Type)
Specifications
Model Number :
YA-C10OFT
MOQ :
1Set
Price :
Negotiable
Target Gas :
Carbon dioxide, carbon monoxide, flammable gas, hydrogen sulfide (toxic gas), oxygen
Measurement Error :
<+20% (mg/m³)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Alarm Mode :
Light + Sound + Vibration
Place of Origin :
China
Delivery Time :
5-8 work days
Power :
Electric
Product Name :
Portable Dust Concentration Monitor
Brand Name :
QINWEIYB
Material :
ABS Plastic
Packaging Details :
Carton or wooden box
Customization Services :
OEM, ODM, OBM, Software Reengineering
Type :
Portable Dust PM Monitor
Description

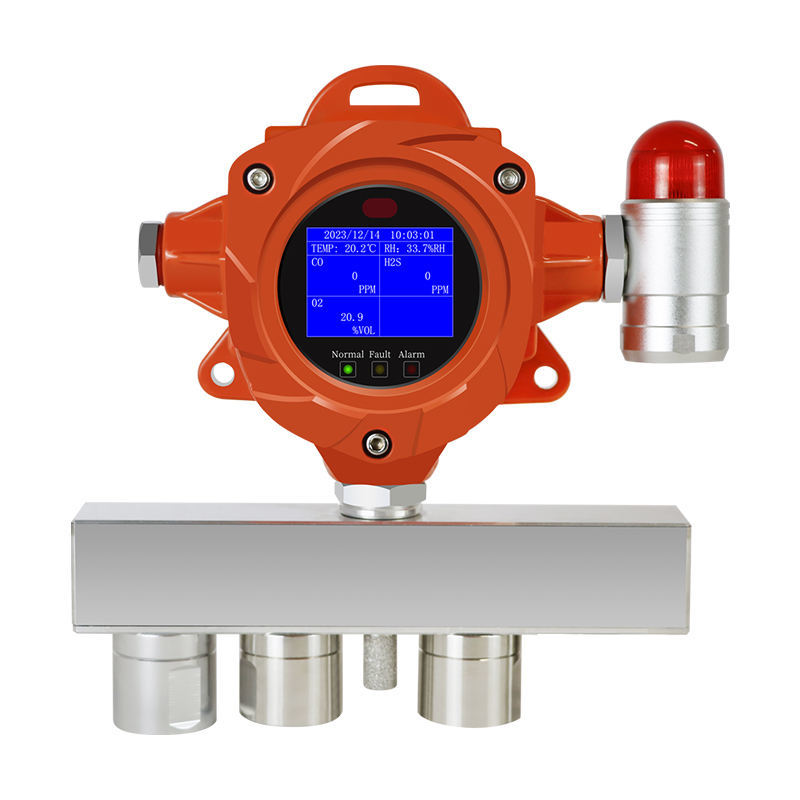

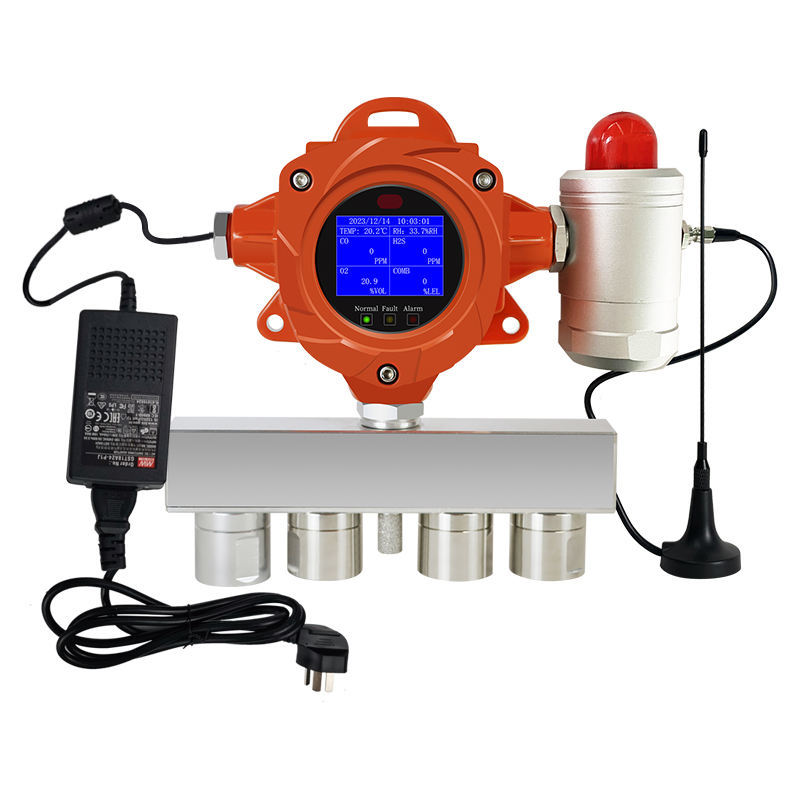

This device is an industrial explosion-proof multi-parameter composite gas detector (fixed type), capable of simultaneously detecting multiple gases. It features a wall-mounted explosion-proof housing, equipped with an LCD display and an external sound and light alarm. Suitable for hazardous environments such as chemical plants, metallurgy facilities, municipal utility tunnels, wastewater treatment plants, and confined spaces, it continuously monitors the concentration of toxic, harmful, and flammable gases in the air. When concentrations exceed safe limits, it triggers audible and visual alarms to prevent risks of poisoning, explosions, and suffocation.

Key Specifications
Parameter Value
Target Gas Carbon dioxide, carbon monoxide, flammable gas, hydrogen sulfide (toxic gas), oxygen
Material Die-casting aluminum + stainless steel
Customization Services OEM, ODM, OBM, software reengineering
Model YA-C10OFT
Power Electric Power
Weight 4KG
Sampling method Natural Diffusion
Color Orange+silver
Degree of Protection IP67
Type Flammable gas detector, infrared (IR) gas detector, oxygen detector, multi-gas detector, toxic gas detector, fixed gas alarm detector
Alarm mode Alarm sounder
Warranty 12 months
Origin China
Product name Fixed Multi Gas Detector
Certificate CE ROHS FCC
Alarm Type Sound+Light Alarm
Response time ≤40 seconds
Display LCD display screen
Product Features
  • Wide Detection Range: Monitors natural gas concentration at the explosive lower limit (EX LEL), from 0% to 100%, enabling precise monitoring.
  • Rugged Construction: IP67 rating ensures durability and protection against harsh environments.
  • Easy Readability: LCD display provides clear visual and audible alarms for timely detection.
  • Remote Monitoring: Up to 8 meters range, allowing convenient and safe monitoring.
  • Multiple Gas Types: Detects various gases including H2S, CH4, H2, LPG, and more.
Typical Application Scenarios
  • wastewater treatment plants, underground utility tunnels, petrochemical facilities, gas stations, metallurgical workshops, landfills, tunnel projects, cold storage facilities, municipal gas stations, pharmaceutical workshops, mine shafts, and confined or limited-space work areas.
