99% Industrial Dust Filtration Equipment For Woodworking Sawdust Sandblasting Treatment Bag Dust Collector
99% Industrial Dust Filtration Equipment For Woodworking Sawdust Sandblasting Treatment Bag Dust Collector
99% Industrial Dust Filtration Equipment For Woodworking Sawdust Sandblasting Treatment Bag Dust Collector
99% Industrial Dust Filtration Equipment For Woodworking Sawdust Sandblasting Treatment Bag Dust Collector
99% Industrial Dust Filtration Equipment For Woodworking Sawdust Sandblasting Treatment Bag Dust Collector
99% Industrial Dust Filtration Equipment For Woodworking Sawdust Sandblasting Treatment Bag Dust Collector
Specifications
Brand Name :
HeBei QiaoDa
Model Number :
QDMC
Certification :
YES
Place of Origin :
China
MOQ :
1
Price :
$1200 - $20000
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10-20 units per month
Delivery Time :
15-30 work days
Packaging Details :
Mutual consultation
Flaw Resistance :
25kg/m³
Motor Power :
5.5~110kw
Filter Speed :
1.20-2.50 M/min
Filtering Bag :
Tailored
Air Pressure :
0.3-0.8Mpa
Feature :
High Efficiency,Large dust collection
Usage :
Industry Dust Collector
Filter Bag Size :
133*2000mm
Graphic Customization :
Accepted
Other Name :
Industrial Welding Dust Collector
Filtration Efficiency :
99%
Filter Speed :
1.0M/min
Air Volume :
2280-23230 m3 / h
Odm :
Yes
Filter Type :
Cartridge
Cleaning Process :
Cold Water Cleaning
Power :
3KW/5.5KW/7.5KW
Marketing Type :
Ordinary Product, Hot Product
Warranty :
2 years
Cleaning Type :
Clean-In-Place (CIP)
Dust Collection Method :
Single Stage
Noise Level :
70 dB
Material :
Plastic
Weight :
100 lbs
Description

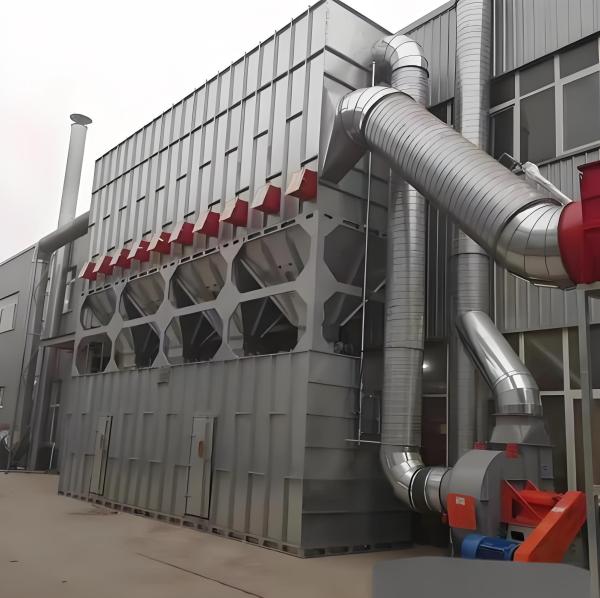

The woodworking dust collector for furniture factories is a dust removal device specially designed for

woodworking workshops, grinding workshops, painting workshops and other scenarios. It features a

modular design, is easy to install and has a high dust removal efficiency. Its core functions are:
1. Dust collection and separation: Based on the principle of negative pressure adsorption, the dusty

airflow (such as sawdust, wood shavings, and paint dust) is introduced into the filter. The dust is intercepted

by filter bags or filter cartridges, and clean air is discharged.
2. Compliant emissions: The dust concentration at the outlet can be controlled below 30mg/m³, and the

emission concentration is ≤10mg/Nm³, meeting environmental protection requirements.
3. Dust recovery and utilization: The collected dust can be conveyed to the silo by a buried scraper conveyor

and automatically pelletized by a sawdust briquetting machine, achieving resource utilization.




Type

Processing air volume

(m³/h)

 Filtration air velocity
(m/min)		 Filtration area
(m²)		 Filter bag model
(mm)		 Quantity of filter bags Resistance
(Pa)		 Gas consumption
(m²min)		 Import concentration
(g/m³)		 Outlet emission concentration
(mg/m³)
DMC-32-3S 6900 1.0
~
1.5		 93 φ127
×
2500		 96 1470
~
1770		 0.27 <1000 <50
DCX-32-4S 8930 124 128 0.37
DCX-32-5S 11160 155 160 0.46
DCX-32-6S 13390 186 192 0.55
DCX-64-4S 17800 248 256 1.2
DCX-64-5S 22300 310 320 1.5
DCX-64-6S 26700 372 384 1.8
MCX-64-7S 31200 434 448 2.1
MCX-64-8S 35700 496 512 2.4
