Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Specifications
Maximum Compressive Space :
300mm
Maximum Tensile Space :
300mm
Type :
Electronic Tensile Testing Machine
Model Number :
HD-T001
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Crossbeam Displacement Accuracy :
≤0.5%
Power Supply :
220 V~240 V
Capacity :
1.0~300N
Sample width :
15.0±0.1mm ( Or optional 50.0±0.5mm)
Sample length :
≥150mm
Adjustable speed :
0.1~200mm/min
Standard Test speed :
50±2mm/min
Maximum stroke :
300mm
Load resolution :
1/250000
Loading accuracy :
≤0.5%
Dimensions :
About 700mm*420mm*325mm (L*W*H)
Weight :
About 50kg
MOQ :
1
Price :
$1,800-3,280
Description
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Product Overview

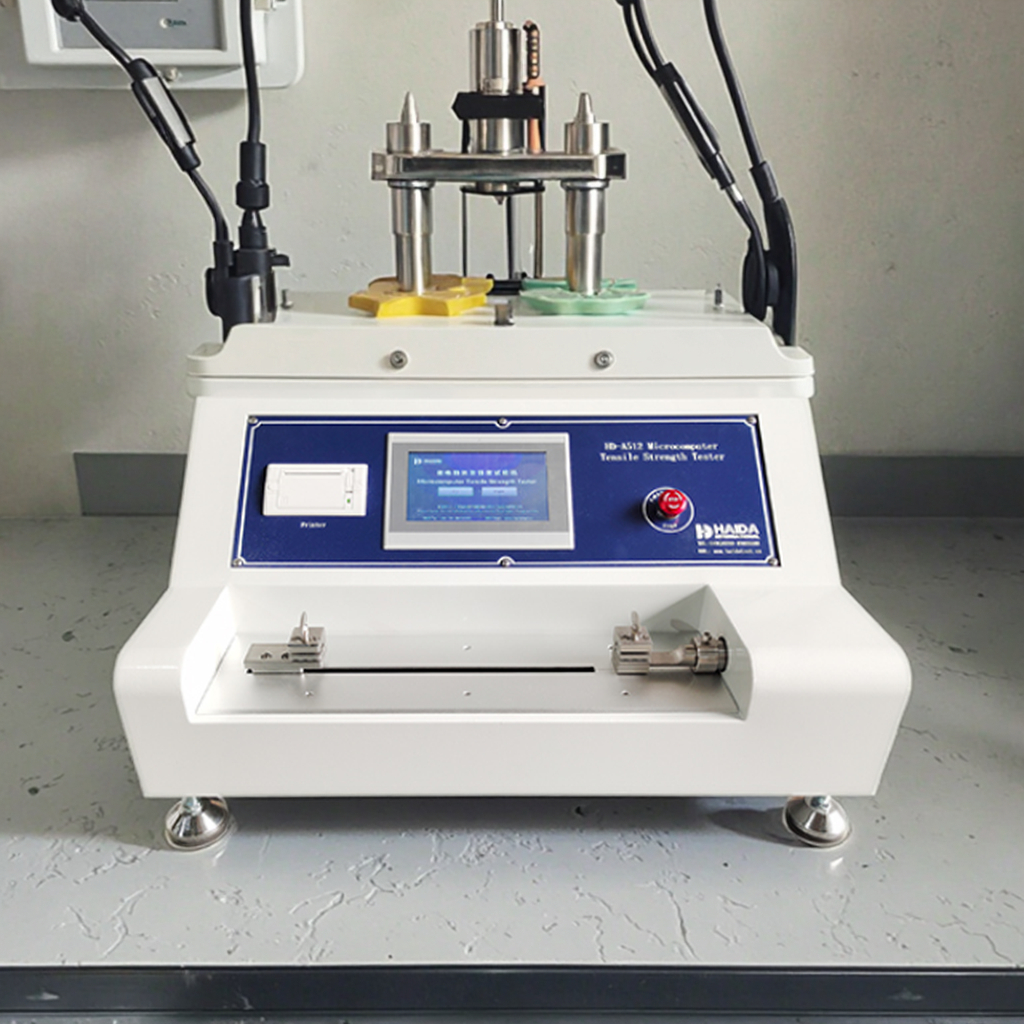

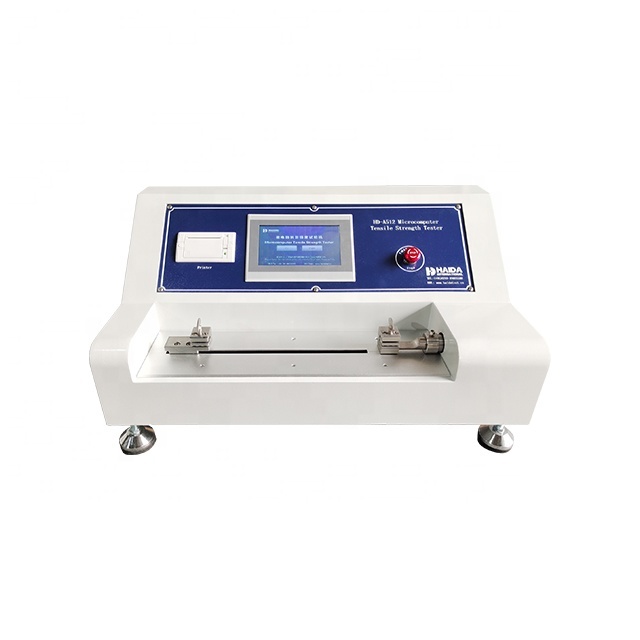

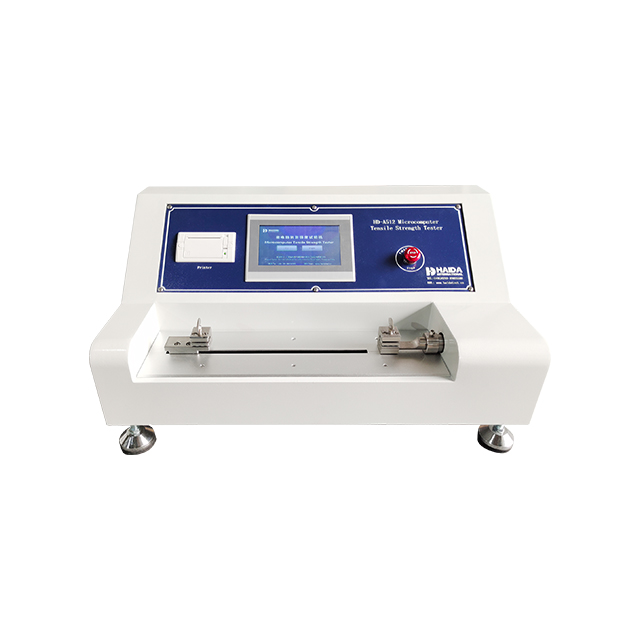

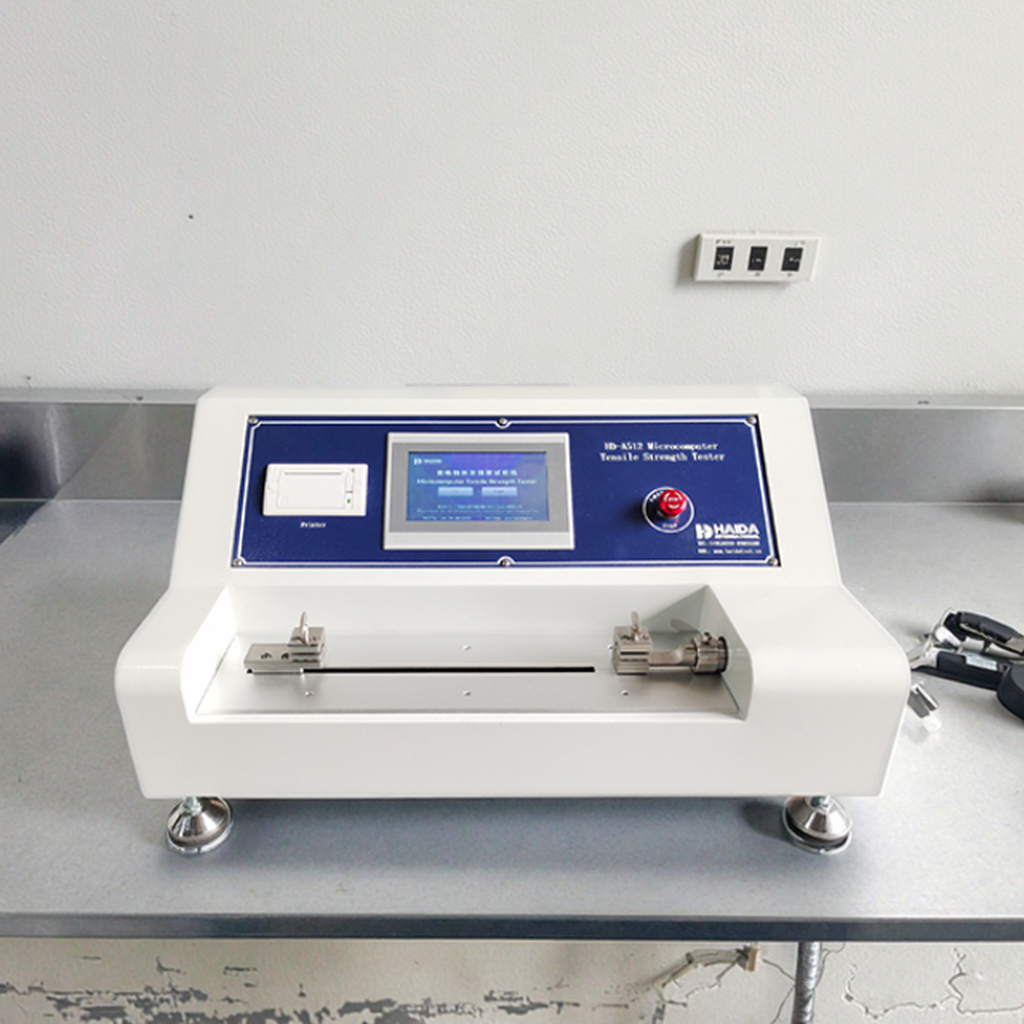

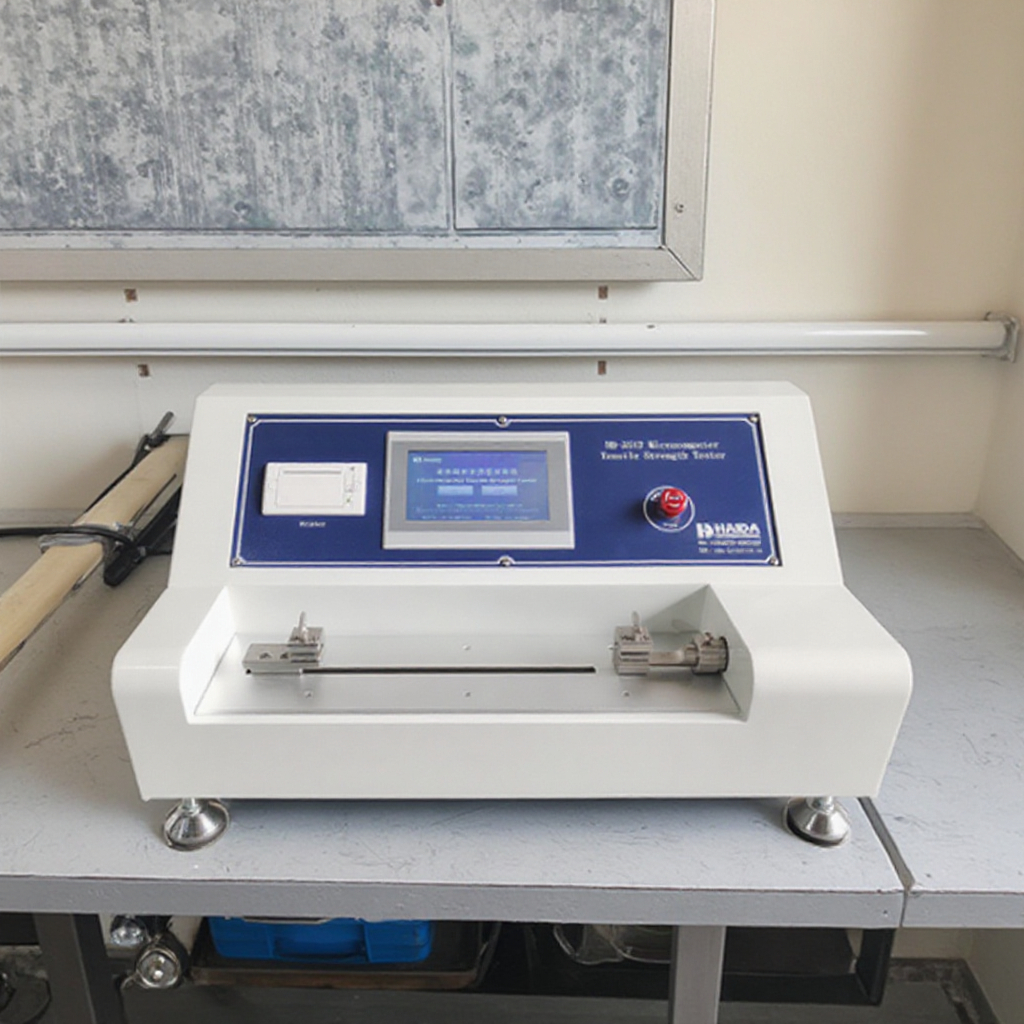

The HD-T001 Tissue Paper Tensile Tester with horizontal system is designed for measuring tensile strength, elongation, breaking length, tensile energy absorption, and tensile index of tissue paper and tissue products. This fully automatic system determines tensile resistance in both dry and wet states, elongation, and TEA (Tensile Energy Absorption) in paper and tissue materials.

Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Technical Specifications
Item Value
Type Test Machine
Customized support OEM, ODM
Place of origin Guangdong, China
Warranty 1 Year
Brand name HAIDA
Application Tissue Paper Test
Capacity 1.0~300N
Sample width 15.0±0.1mm (Or optional 50.0±0.5mm)
Sample length ≥150mm
Adjustable speed 0.1~200mm/min
Standard Test speed 50±2mm/min
Maximum stroke 300mm
Load resolution 1/250000
Loading accuracy ≤0.5%
Effective test force value range 5g～30kg
Unit switching Gf/kgf/n/kn/lbf/t
Motor Stepper motor
Driver Stepper motor driver
Control mode Touch screen control
Power supply 1∮ AC 220V, 500W
Dimensions About 700mm*420mm*325mm (L*W*H)
Weight About 50kg
Test Standards
  • GB∕T24328.3-2020
  • ISO 12624-4：2016
Design Features
  • Automatic detection of the sample
  • Pneumatic clamping
  • TEA value and complete statistics
  • Special tank for tensile tests in wet conditions
Sample Details
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Company Profile
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Our Partners
Tissue Paper Tensile Tester Horizontal Tensile Strength and Elongation Test Machine for Toilet Paper
Our Service Advantages
Technical Support
  • 48-hour response time for technical issues
  • Solutions provided within 3 working days
  • Operation videos and English manuals
  • Video conference support available
Onsite Services
  • Device installation and setup
  • Equipment operation and technology training
  • Equipment calibration services
  • Daily maintenance and equipment care
  • Free technical training for factory visits
  • 24-hour online contact support
  • Free software upgrades
Documentation & Resources
  • Product instruction manuals
  • Product operation instructions and videos
  • Experiment test applications and reports
Problem Resolution
  • 24-hour social media communication
  • Seamless email support
  • Video conferencing for troubleshooting
  • Free door-to-door technical service
