Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Specifications
Type :
Testing Machine
Accuracy :
≤0.5%
Brand Name :
HaiDa
Place of Origin :
Guangdong, China
Application :
Tissue Paper Test
customized support :
OEM, ODM
power :
500w
Protection Class :
/
Voltage :
220 V
warranty :
1 year
Logo/graphic design :
Hot Stamping, SCREEN PRINTING
Load capacity :
50N/1kN/2kN
Motor :
400w servo motor
Driver :
400w servo driver
Control method :
Computer/touch screen control
Data output :
USB/Windows mode /Office mode /thermal printer output
Screw :
Ball screw
Adjustable speed :
0.1-500mm/min (Standard Test speed 125± 0.1 mm/min)
Unit switching :
gf/kgf/N//kN/LBf/T
Load accuracy :
≤0.5%
Net weight :
70Kg
MOQ :
1
Price :
$2,400-4,250
Description
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Product Overview

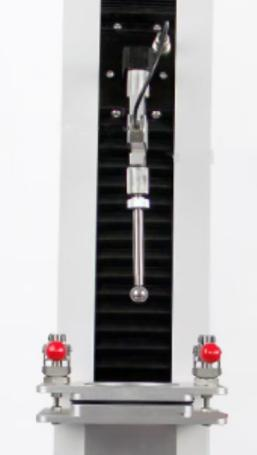

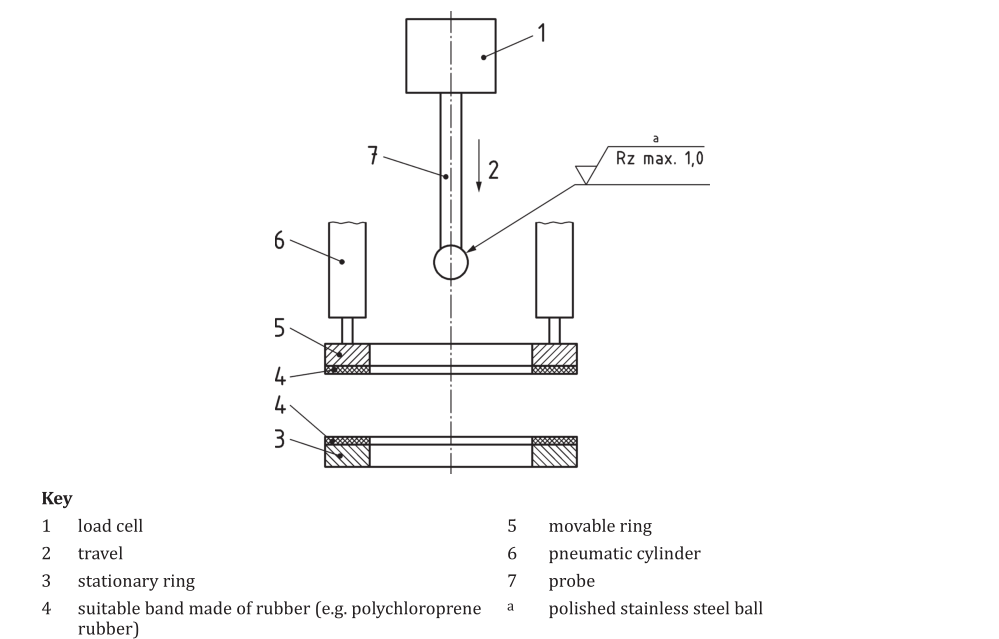

The Tissue Paper Ball Burst Strength Tester is designed for testing the ball-shaped burst strength of tissue paper and tissue products. The test involves measuring the resistance force of a highly polished stainless steel burst ball moving at a constant speed, penetrating perpendicularly through a tissue test piece clamped between two concentric rings.

Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Technical Specifications
Item Description
Load capacity 50N/1kN/2kN
Motor 400w servo motor
Driver 400w servo driver
Control method Computer/touch screen control
Data output USB/Windows mode /Office mode /thermal printer output (with printing curve function)
Screw Ball screw
Adjustable speed 0.1-500mm/min (Standard Test speed 125±0.1 mm/min)
Ball diameter Φ16 ±0.05mm Sphericity: better than 1 µm
Pressure ring diameter Φ50±0.2 mm Optional: Φ89±0.2 mm
Vertical test space 900mm (Not including clamp)
Load resolution 1/250,000
Load accuracy ≤0.5%
Unit switching gf/kgf/N/kN/LBf/T
Dimension 580*550*1250mm (L*W*H)
Net weight 70Kg
Power 1∮ AC 220V 500W
Curves display Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information strength (Kpa, Mpa, N/mm, N/mm2) etc.
Safety features E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Applications
  • Tested sample: laminated materials, paper, wood, leather, rubber & plastic, metal material, etc.
  • Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force
  • Deformation under defined load: Test deformation under defined load of tested sample
  • Load under defined deformation: Test load under defined deformation of tested sample
  • Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Compliance Standards
  • Dry: GB/T 24328.7-2020 / ISO 12625-9:2015
  • Wet: GB/T 24328.9-2020, ISO 12625-11:2012
Available Clamps
Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper Tissue & Toilet Paper Ball Burst Strength Tester Universal Tensile Strength Test Machine Equipment for Paper
Our Service & Support
Technical Support
  • If you face any problems during testing process, we promise to reply within 48 hours and provide solutions within 3 working days
  • We provide operation videos and English operation manuals
  • We offer video-conference support
Onsite Services
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment maintenance
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
Documentation & Resources
  • Product instruction manuals
  • Product operation instructions and videos
  • Experiment test applications and test reports
Problem Resolution
  • Social media 24 hours online communication
  • Email seamless docking
  • Video conferencing support
  • Free door-to-door service when needed
