Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Specifications
Type :
Test Machine
Accuracy Class :
Standard Accuracy
Accuracy :
±0.5%~±1.0% FS
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Tissue Paper Test
customized support :
OEM, ODM
power :
/
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Display :
7-inch color touch screen display
Measure range :
10~1000 mN
Resolution :
0.1mN
Indication error :
±1% (Range 5%~100%)
Total probe stroke :
12±0.5mm(adjustable)
Probe indentation depth :
8mm
Result Output :
Thermal printer
Communication interface :
RS-232 (USB, WIFI optional)
Dimension :
425*290*300 mm(L*W*H)
Net weight :
20Kg
MOQ :
1
Price :
$2,380-3,180
Description
Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Product Overview

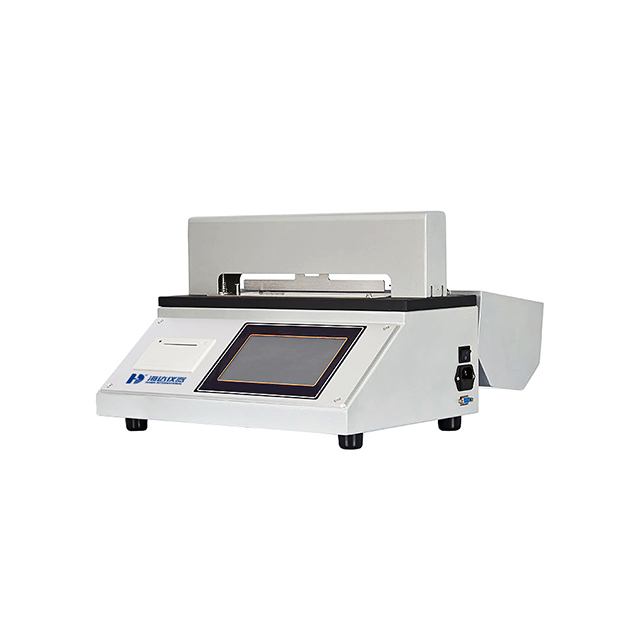

HD-T004 Tissue Paper Softness Tester is applicable to tissues paper, tobacco flakes, fibre fabrics, non-woven fabrics, fabrics, films and other industries. This high-precision intelligent tester adopts modern mechanical design concepts and microcomputer processing technology for reliable performance.

Tissue Paper Softness Tester Toilet Paper Softness Test Machine Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Technical Specifications
Item Value
Type Test Machine
Customized support OEM, ODM
Place of origin Guangdong, China
Voltage 220V
Warranty 1 Year
Brand name HAIDA
Application Tissue Paper Test
Display 7-inch color touch screen display
Measure range 10~1000 mN
Resolution 0.1mN
Indication error ±1% (Range 5%~100%)
Total probe stroke 12±0.5mm(adjustable)
Probe indentation depth 8mm
Test speed 1.2±0.012 mm/s (72±0.72 mm/min)
(1-250 mm/min adjustable)
Specimen table clamping width 5/6.35/10/20mm(Four adjustable gears)
Slit parallelism error ≤0.05mm
Probe centering error ≤0.05mm
Result Output Thermal printer
Communication interface RS-232 (USB, WIFI optional)
Dimension 425*290*300 mm(L*W*H)
Net weight 20Kg
Power Supply AC 220V±10V 50Hz
Test Standards
  • GB/T8942
  • QB/T1060
Design Features
  • One-click test, easy to operate
  • ARM processor for improved response speed and accurate, fast calculation
  • Real-time display of pressure curve
  • Leverage principle to reduce data fluctuation caused by vibration
  • Sudden power outage data saving function
  • Equipped with micro thermal printer for data analysis and statistics
  • Software and hardware over-range protection for sensor safety
  • Compatible with microcomputer software (purchased separately)
Company Profile
Tissue Paper Softness Tester Toilet Paper Softness Test Machine Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Our Partners
Tissue Paper Softness Tester Toilet Paper Softness Test Machine Tissue Paper Softness Tester Toilet Paper Softness Test Machine
Our Service Advantages
Technical Support
  • 48-hour response time for technical issues
  • Solutions provided within 3 working days
  • Operation videos and English manuals available
  • Video conference support
Onsite Services
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment care
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
Documentation & Resources
  • Product instructions
  • Product operation instructions/videos
  • Experiment test applications and reports
Problem Resolution
  • Social media 24-hour online communication
  • Seamless email support
  • Video conferencing solutions
  • Free door-to-door service
