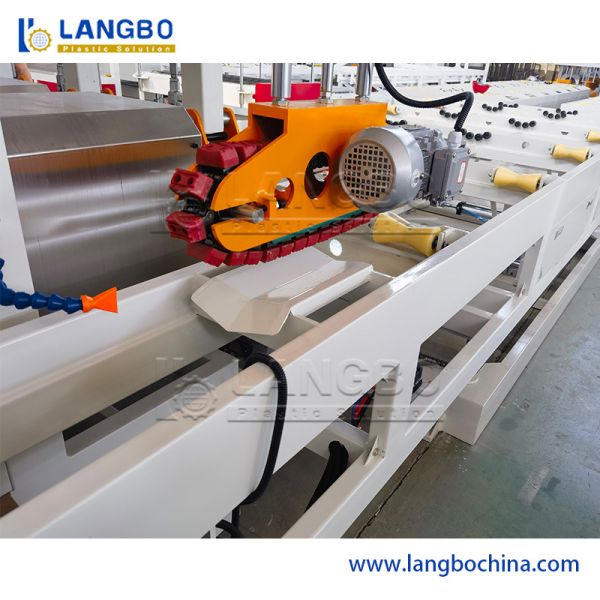

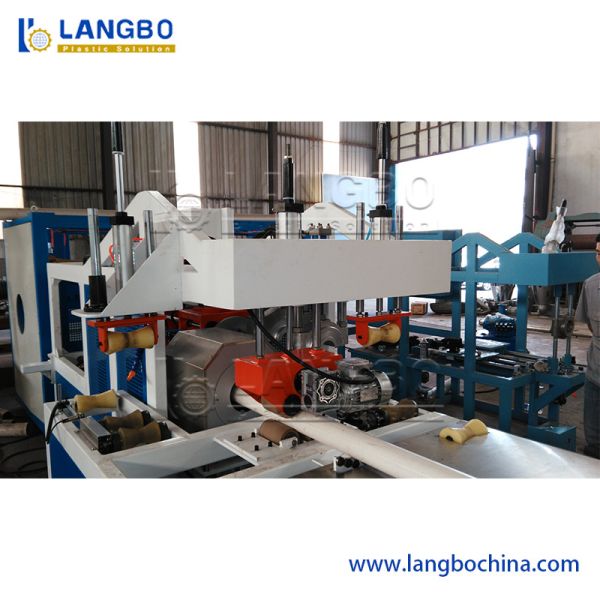

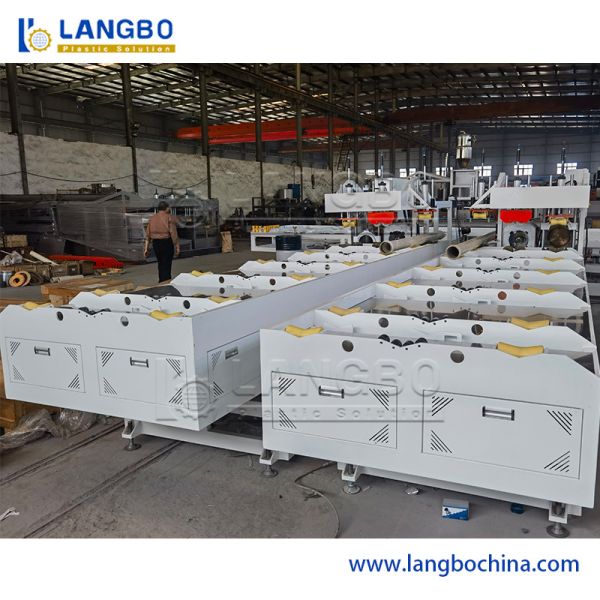

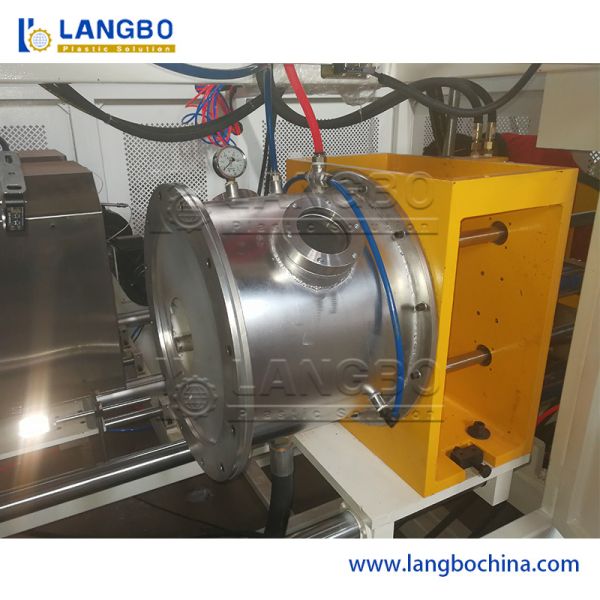

Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Specifications
Supply Ability :
15 SETS PER MONTH
Brand Name :
LB
Heating Method :
Light heating
Model Number :
LB-80/156
Certification :
CE ISO
Price :
Negotiable（USD EUR）
Packaging Details :
NORMAL PACKAGE
Warranty :
2 years
Install Power :
37~600kw
Coolingmethod :
Air Cooling / Water Cooling
Processed Pipe :
PVC pipe
Expansion Shape :
U shape, R shape, Rectangle shape
Type :
Full-automatic and Semi-automatic
Place of Origin :
ZHANGJIAGANG
Payment Terms :
L/C,T/T
Belling Range :
16~630mm
MOQ :
1 SET
Delivery Time :
45 WORKING DAYS
Description
Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming
Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/Hydraulic Oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm ± 50mm
Machine Dimensions 8615 * 3125 * 2500mm
