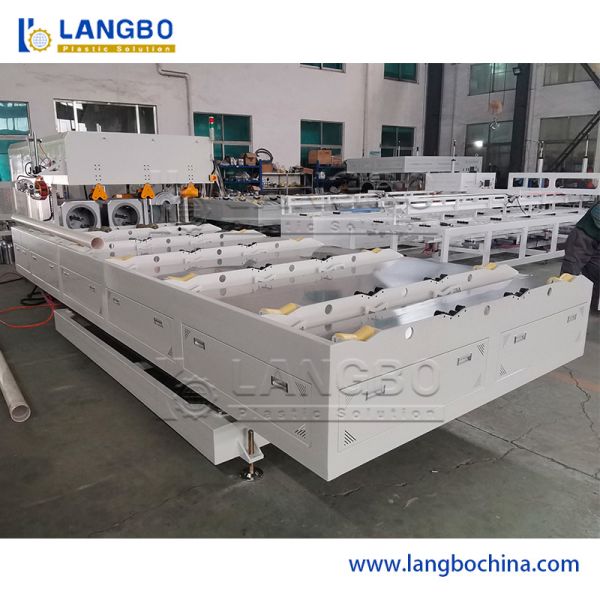

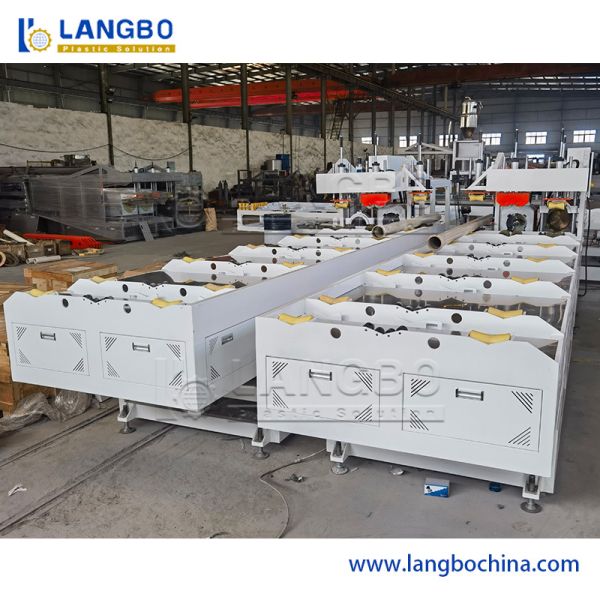

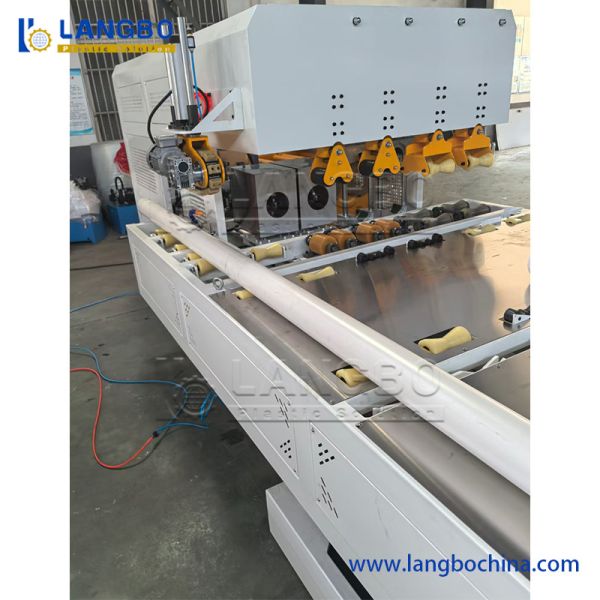

Automatic PVC Pipe Socketing Machine
Pipe Belling Machine

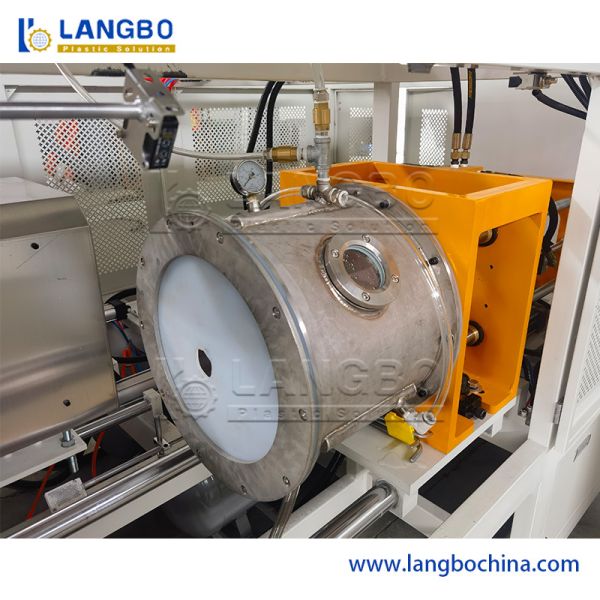

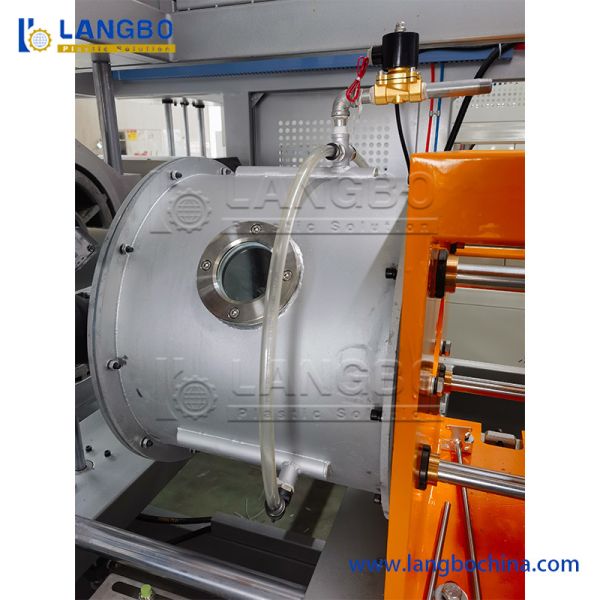

This belling machine integrates with extrusion production lines to manufacture socket ends for pipes in "U", "R", and rectangular configurations. The belling process occurs within a dedicated belling room, utilizing vacuum shaping inside the core of the belling mould combined with external water cooling to achieve precise socket formation.
Components and Features
- Compatible with pipe extrusion production lines

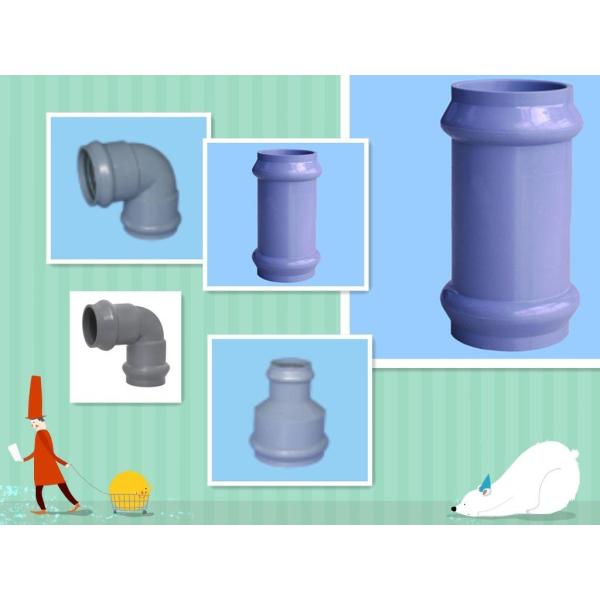

- Produces socket ends in "U", "R", and rectangular shapes
- Vacuum shaping technology for precision
- Water cooling system for optimal results
- Dedicated belling room environment
Technical Specifications
| Model |
Pipe Diameter (mm) |
Belling Method |
Cooling Method |
Socket Shape |
Control Method |
| LB-40 |
16-40 (double) |
Pneumatic |
Blowing Air |
"U" |
Automatic/Manual |
| LB-200 |
50-200 |
Hydraulic |
Water |
"U"/"R"/Rectangular |
Automatic/Manual |
| LB-250 |
50-250 |
Hydraulic |
Water |
"U"/"R"/Rectangular |
Automatic/Manual |
| LB-400 |
160-400 |
Hydraulic |
Water |
"U"/"R"/Rectangular |
Automatic/Manual |
| LB-500 |
200-500 |
Hydraulic |
Water |
"U"/"R"/Rectangular |
Automatic/Manual |
| LB-630 |
315-630 |
Hydraulic |
Water |
"U"/"R"/Rectangular |
Automatic/Manual |
