Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
Specifications
Delivery Time :
45 WORKING DAYS
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG
Supply Ability :
15 SETS PER MONTH
Item :
pipe coiling machine
Oven :
Two heating ovens
Application :
Drain Pipe
Belling Range :
16~630mm
Capacity :
120~800kg/h
Materialcompatibility :
PVC, UPVC
Model Number :
LB-51/105
Brand Name :
LB
MOQ :
1 SET
Payment Terms :
L/C,T/T
Production Output :
120-800kg/hr
Packaging Details :
NORMAL PACKAGE
Coolingmethod :
Air Cooling or Water Cooling
Weight :
5000kg
Price :
Negotiable（USD EUR）
Motorpower :
3kW to 7.5kW
Description
PVC Pipe Belling Machine 16–630mm With Reduced Manual Operation
Product Overview

Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Key Features
  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage

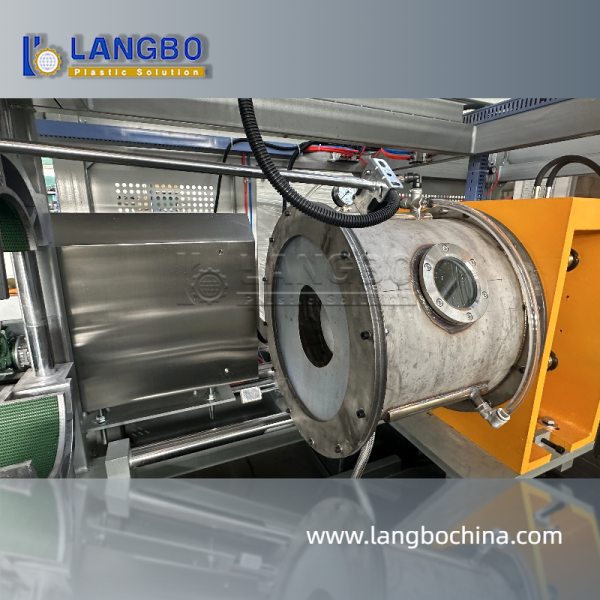

  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/Hydraulic Oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm ± 50mm
Machine Dimensions 8615 × 3125 × 2500mm
Product Gallery
Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven
