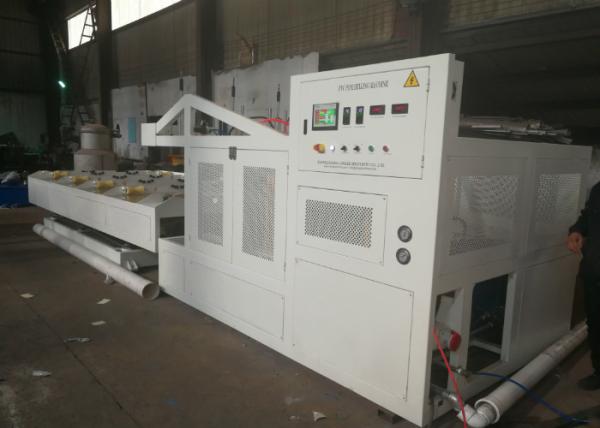

Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Specifications
Brand Name :
LB
Model Number :
LB-63D
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Application :
Drain Pipe
Warranty :
12 months
Voltage :
380V
Type :
pvc pipe automatic plastic belling machine
PIPE COLOUR :
WHITE, ORANGE, BLANK
PLC :
FULL AUTOMATIC
Description

16mm-630mm Automatic plastic pipe socketing machine/PVC pipe Belling machine

Application:

LANGBO MACHINERY is a company that makes belling machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.

With young. dynamic powerful engineers, we produce standard, customer design and fully automated plastic machine. Our R & D department is improving the machine quality, making low cast and increasing the durability of the machine.

Equipped with expanding mould of relative specifications, this auto pipe-expanding machines and relative pipes production line can realize full procedure automatic production of straight opening and protruding opening pipe-expanding of all plastic pipes from 16-630

Feature:


1. Used for plastic pipe belling, such as PVC, PE, PP-R pipe and UHMW PE tubes .
2. Important auxiliary machine for pipe extrusion line, it can not only be operated separately, but also be a part of extrusion line.
3. Enlarging solvent type socket (straight type) and enlarging stretch seal type socket (R type and rectangle type

4.It is very convenient to choose the way of tube expansion, with strong craft adaptability. It has many excellences like reasonably structured, attractive appearance, advanced technology, easy to operate and all the progress is automatic.

Main Technical Parameter:

Model SGK160 SGK250 SGK400 SGK630 SGK1000
Pipe OD(mm) 40-160 50-250 160-400 315-630 500-1000
Pipe Length(m) 3-8 3-8 4-8 4-8 6-8
Hydraulic working pressure(mpa) 5 6.3 6.3 8 8
Compressed air pressure(mpa) 0.6 0.6 0.6 0.6 0.6
Total power(kw) 18 18 25 32 50
Total weight (kg) 2300 2500 3000 3500 8000
Overall size(L*W*H)mm 7000*1530*1963 7300*1730*1950 7900*2140*2125 8423*2970*2650 10000*4600*2570
Production speed(s) 45-500 50-600 60-900 150-1200 500-2500
Forming mode: With pressurized cylinder (or vacuum pump)and expandable belling moulds
Cooling mode: Water-cooled
R-type belling moulds: 3Cr13 for collapsible core,40Cr for die block,and other mater are 45#steel,electro- plating for surface treatment
