PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
PP PET Strapping Belt Tape Extrusion Production Line Two Cavity
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 45000-95000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets/ year
Delivery Time :
20-40 working days
Packaging Details :
Standard export package
Screw Design :
Single-screw
Screw diameter :
65 mm
Usage :
PET PP strapping tape
Screw L/D Ratio :
28:1
Motor power :
37kw
Inverter :
ABB Brand
Warranty :
1 year
Description

Two Cavity PP PET Strapping Belt Tape Extrusion Making Production Line

PET Strap Making Machine / PET Package Strap Band Extrusion Line / Plastic PET Strap Making Plant

Purple Horn machinery is the professional manufacturer of PET PP strap extrusion line. We could meet high quality strap production and high capacity request from customers.
Our PET strap machine could meet over 6:1 stretching rate, and 200m/min speed extrusion.


This production line is used to product the pet packing band,pet packing strap;adopt the plc control the whole line do the auotmatic production,it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other

Characteristic :

It use single screw extruder system

For PET strap production, It use 100% recycling material

Measurement pump ensure constant and stable production

Two pull four station filter can efficiently eliminate impurity

Large hauling force stretch device and insulation oven


PET Strap Making Line Equipment List:

No. Description Qty.
1 PET200 Efficient dehumidification drying preliminary crystal system 1 set
2 Three constituents mixing and feeding system 1 set
3 Single screw extruder 1 set
4 Double-column exhausting hydraulic screen changer 1 set
5 High temperature melt pump 1 set
6 PET extrusion dies 1 set
7 Water cooling tank 1 set
8 The first 5-roller preheating unit 1 set
9 Convection oven 1 set
10 The first stretching machine 1 set
11 The second stretching machine 1 set
12 Embossing machine 1 set
13 Heat setting machine 1 set
14 Water cooling tank 1 set
15 3-roller traction machine 1 set
16.1 Double-position winding machine (PLC controlled) 2 sets
16.2 Double-position winding machine (mechanical) 2 sets
17 Electrical Control system 1 set
18 Technical Information 1 Manual

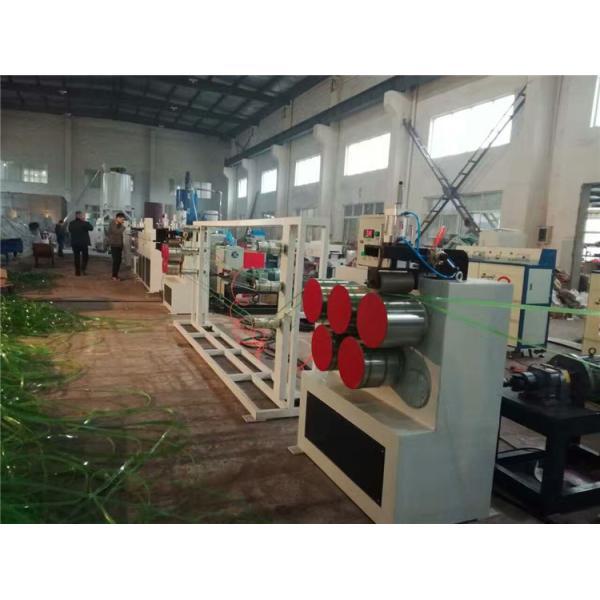

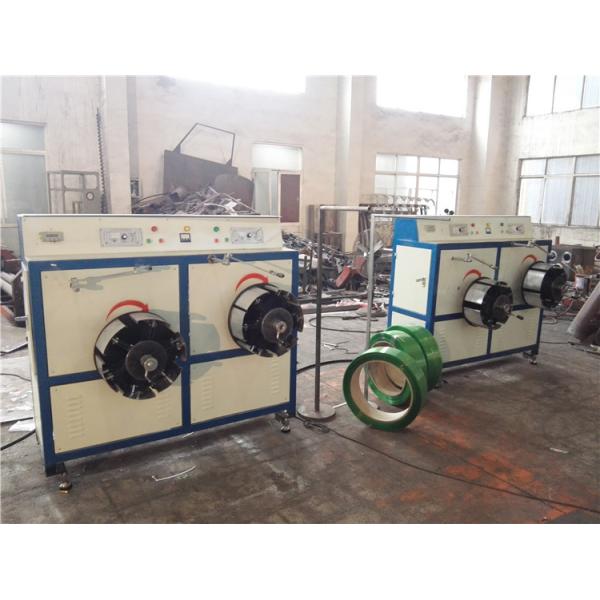

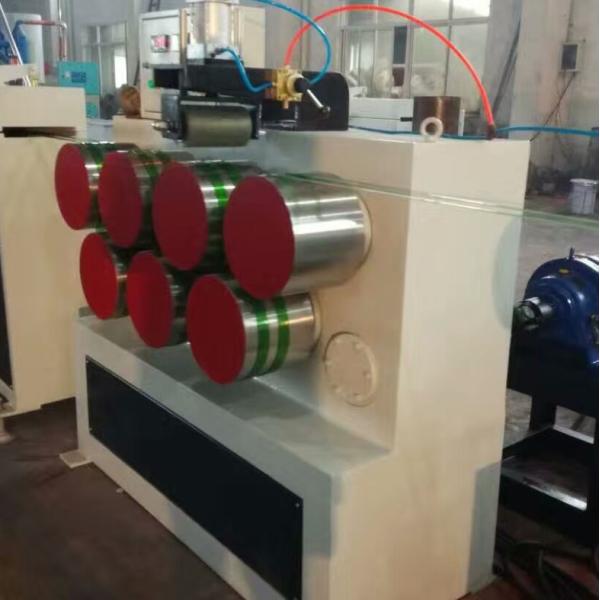

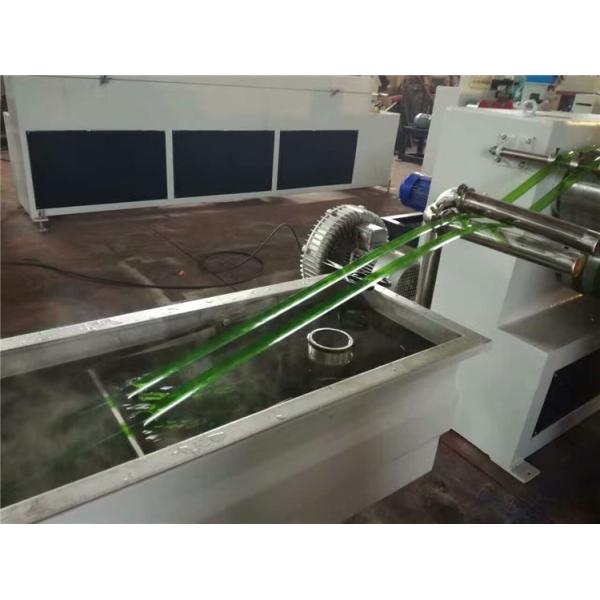

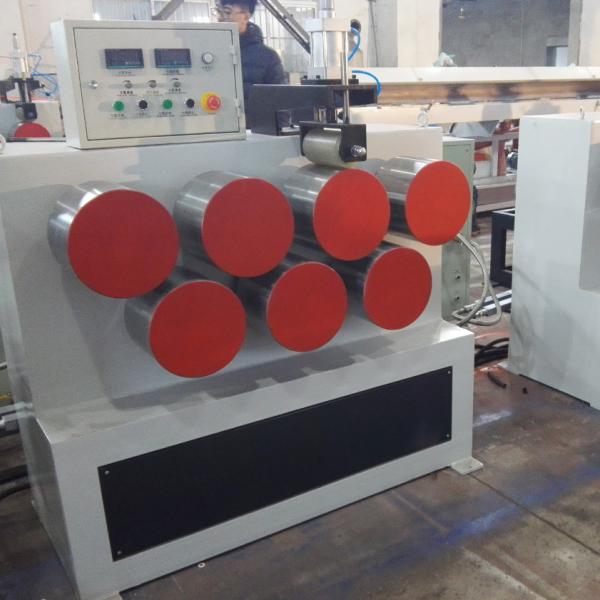

PET PP strapping extrusion line pictures:

PP PET Strapping Belt Tape Extrusion Production Line Two CavityPP PET Strapping Belt Tape Extrusion Production Line Two CavityPP PET Strapping Belt Tape Extrusion Production Line Two CavityPP PET Strapping Belt Tape Extrusion Production Line Two CavityPP PET Strapping Belt Tape Extrusion Production Line Two Cavity
