Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 15000-25000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets/ year
Delivery Time :
20-40 working days
Packaging Details :
Standard export package
Screw Design :
Single-screw
Screw diameter :
45 mm
Screw L/D Ratio :
28:1
Usage :
Medical catheter
Capacity :
20-40kg/h
Inverter :
ABB Brand
Motor power :
37kw
Description

Plastic PVC PE TPE Soft Medical Tube Hose machine Extrusion Production Line

Medical hose extrusion line is used for the production of PVC medical hoses, oxygen tubes, blood vessels, indwelling catheters, drainage tubes, tracheal intubation, central venous catheters, anesthesia tubes, urinary catheters, capillaries, porous tubes and other types of precision medical catheters for medical purposes level.
Model

Main Machine Model for reference:

Model Tube size Screw diameter of extruder Main motor power Output
SJ45 1mm-6mm 45mm 7.5kw Around 20kg/h
SJ50 2mm-10mm 50mm 11kw Around 30kg/h
SJ65 6mm-16mm 65mm 22kw Around 60kg/h

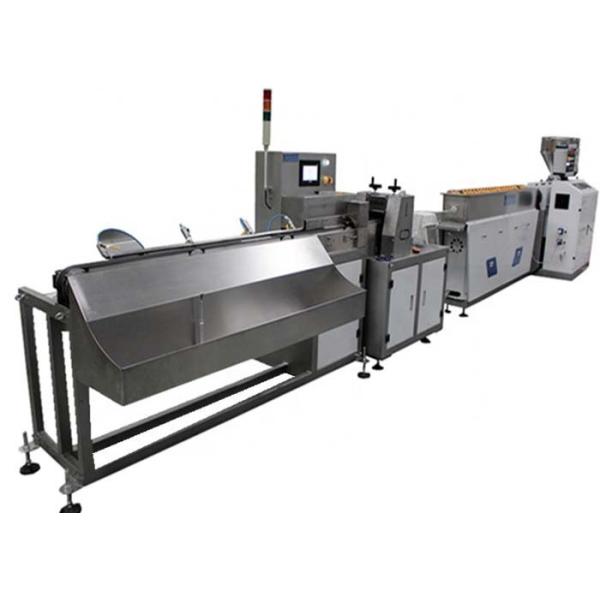

Machine pictures:

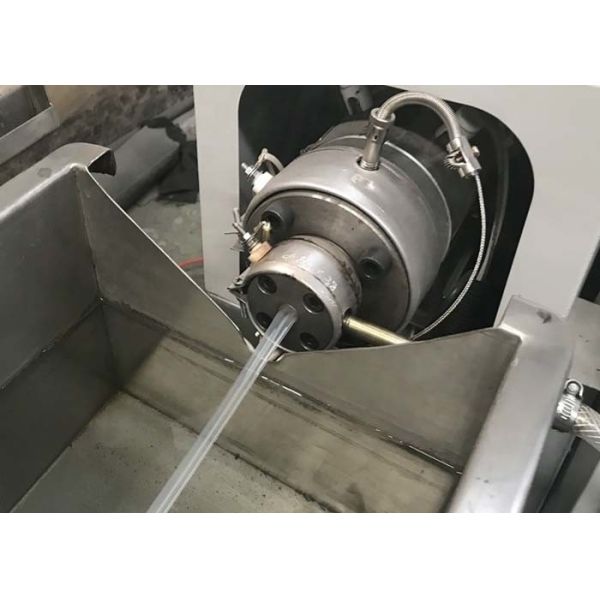

1. Extruder part:
The screw barrel is made of high-strength nitrided alloy steel (38CrMoALA) or high-strength quenched alloy steel (9Cr18MoV), and the main engine is driven by an AC frequency conversion controller; the temperature controller uses an intelligent temperature control meter, and the temperature control accuracy reaches ±1℃

Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line

2. Mould part:
The mold is made of heat-stable extrusion mold special steel, and the smooth mirror flow channel provides sufficient protection for high-quality medical tubes.

Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line

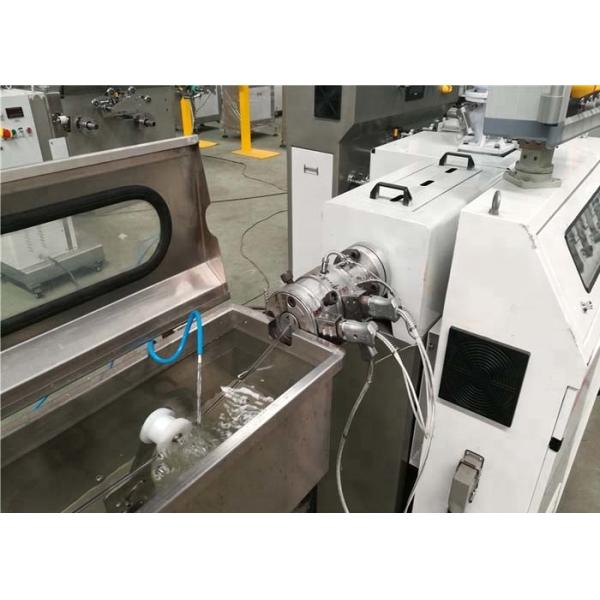

3 Forming and Cooling part:
The stainless steel shaped sinks are all made of imported SUS304 stainless steel for bending and forming, with a closed structure with a full glass cover, and a special sealed blow-drying device without water splashing.

Plastic PVC PE TPE Soft Medical Tube Hose Extruder Extrusion Production Line
