20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 15000-25000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets/ year
Delivery Time :
20-40 working days
Packaging Details :
Standard export package
Screw diameter of extruder :
45mm
Product name :
Hose Extruder Medical Tube Extrusion Line
Tube size :
1mm-6mm
Output :
Around 20kg/h
SJ45 :
Model
Main motor power :
7.5kw
Description

PU PVC Hose Pipe Medical Tube Extrusion Prodution Line

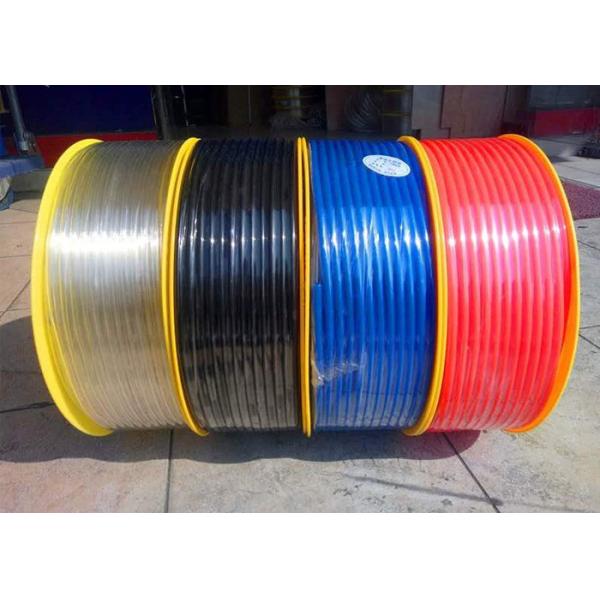

This extrusion production line is composed of single screw extruder machine, cooling and haul off system, electric control cabinet, extruding head, automatic cutting machine etc.. It is suitable for producing kinds of PVC, PU, TPE, PE catheter like suction catheter, nasal oxygen catheter, infusion catheter, multi-cavity catheter, trachea, cannula and enhanced trachea,cannula with steel wire inside etc. The medical catheter produced by this line is well-circled, transparent, lucent, evenly plasticized and clean. This extrusion production line has the advantage of easy structure, simple operating, low expending and low noise level.


Main Machine Model for Reference:

Model Tube size Screw diameter of extruder Main motor power Output
SJ45 1mm-6mm 45mm 7.5kw Around 20kg/h
SJ50 2mm-10mm 50mm 11kw Around 30kg/h
SJ65 6mm-16mm 65mm 22kw Around 60kg/h

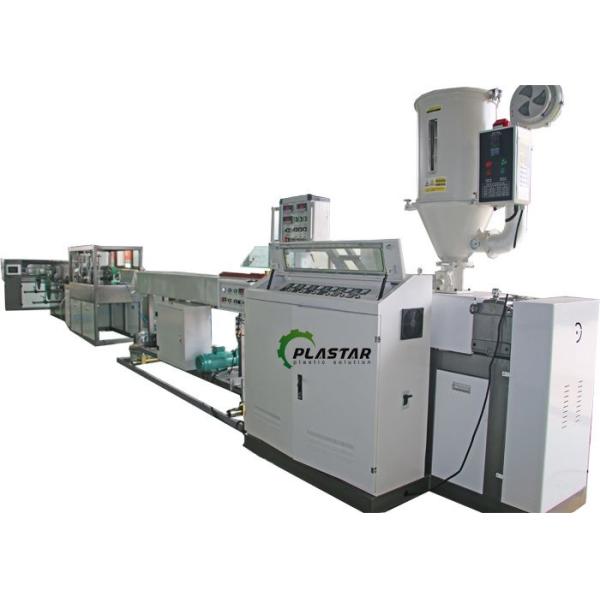

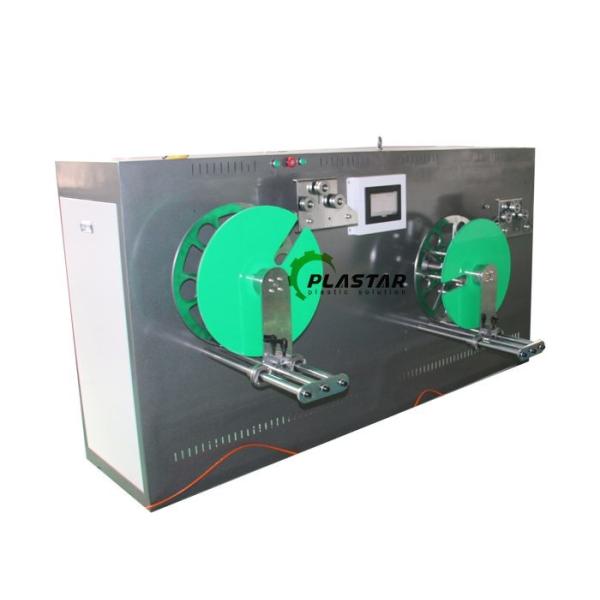

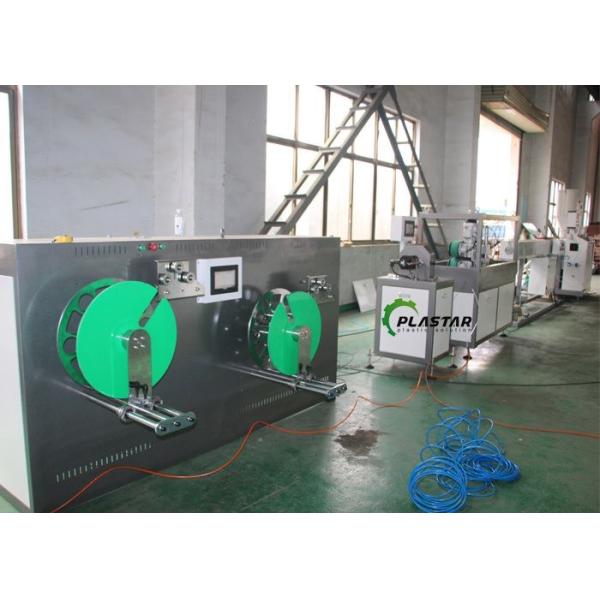

Machine pictures:

20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line

20kg/H PU PVC Hose Extruder Medical Tube Extrusion Line
