200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
Specifications
Brand Name :
Purple Horn
Model Number :
PL500
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 25000-85000$
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
30-50 working days
Packaging Details :
wood box+wood pallet+stretch film package
Raw material :
PBAT PLA PVA PCL Resin+Additive
Cutting type :
Noodle cutting type
Processing capacity :
100-1500kg/h
Screw design :
Parallel Twin Screw Extruder
Machine type :
Mother baby extruder or two stages extruder
Feeding type :
Force feeding
Degassing device :
Vacuum degassing
Main motor brand :
Siemens beide
Description

Parallel Co-Rotating Twin Screw Extruder Manufacturer PLA Biodegradable Pelletizing Line

Regarding this machine, we have different models for your choice as per different capacity's requests from customers.

Model/Parameter PSD20 PSD35 PSD50 PSD65 PSD75 PSD95
Capacity 10-20 30-50 100-200 200-300 300-400 400-800
Main motor 4 45-22 37-65 45-75 75-160 132-250
Screw diameter 21 35.6 50.5 62.4 71 93
L/D 28-40 28-48 28-64 28-64 28-64 28-64
Rotate speed(rpm) 0-600 0-600 0-600 0-600 0-600 0-600
Screw material bi-metal bi-metal bi-metal bi-metal bi-metal bi-metal
Screw hardness HRC65-70 HRC65-70 HRC65-70 HRC65-70 HRC65-70 HRC65-70
Shaft core material 40CrNiMoA 40CrNiMoA 40CrNiMoA 40CrNiMoA 40CrNiMoA 40CrNiMoA

Product Application
PLA Biodegradable Resin Making/Granulating/Pelletizing Machine is mainly used for granulating biodegradable corn starch with formula material that make biodegradable resin to make biodegradable product,like dishes,chopsticks,food container,shopping bags and so on.


Machine configurations:

1. High speed mixer

2. Spiral screw loader

3. Twin screw extruder

---Main feeder

---Water cooling system

---Vacuum system

4. Fan cooling strand pelletizing system

---Conveying belt

---Pelletizer

PLA add starch 100% Biodegradable Resin Making/Granulating/Pelletizing Machine
Product name PLA add starch 100% Biodegradable Resin Making/Granulating/Pelletizing Machine
Processing material PLA/PBAT/PVA+Corn starch/Cassava starch+some small additives
Final product 100% biodegradable granule
Application Films, bags, plates, cups, straws, chopsticks,etc
Capacity 10~1500KG/H (We can provide any capacity model as per cutomers' need)
Certification CE&ISO

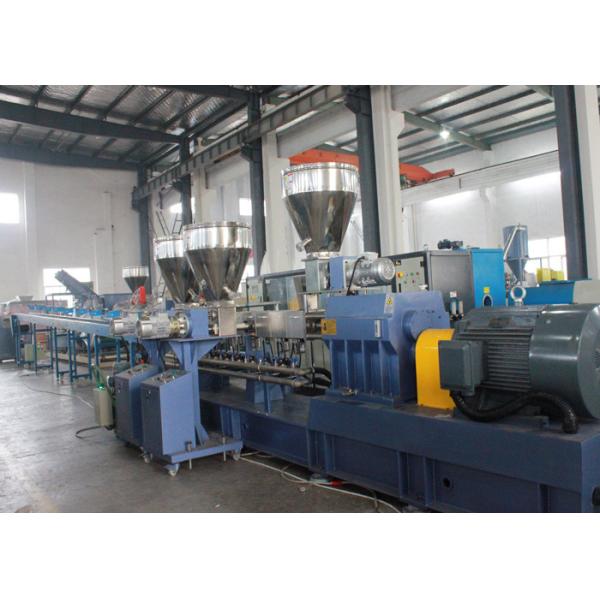

Machine pictures for reference:

200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder

200kg/H Plastic Pelletizing Recycling Machine Parallel Co Rotating Twin Screw Extruder
