Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Noodle Cutting Plastic Granulator Machine
Specifications
Brand Name :
Purple Horn
Model Number :
PL-300
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 35000-95000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
30-60 working days
Packaging Details :
Wood package+wood pallet+stretch film package
Cutting type :
Noodle cutting/pull strip cutting
Feeding type :
Compactor
Filter :
Two stages filter
Capacity :
100-1200kg/h
Raw material :
PP, PE film, shopping bag, soft material
Main extruder :
Single screw extruder
Description

Double Stage Noodle Cutting Plastic Pelletizing Recycling Machine for Waste Plastic Film

Plastic Recycling Line for Waste Plastic Film Bag Pelletizing


Application of Plastic Recycling Line for Waste Plastic Film Pelletizing:

Applicable plastic materials: PP,HDPE,LDPE,LLDPE,TPV,ABS and PS,etc.

Material shapes:Film,bag and flake

Material types:Woven bag,printed LDPE film,film(rolls,loose,bundled),agricultural film waste,foamed plastics(EPS) and raffia.

Features of Plastic Recycling Line for Waste Plastic Film Pelletizing:

1) High efficiency and high performance

2) Material is cut,pre-dried,pre-heated,pre-homogenized and compacted in the shredding drum.

3) Many materials can be processed directly without need of the upstream pre-shredding,resulting in a dramatic reduction in operational costs.

4) Less power consumption cost per kilogram,high throughput,reduced floor space occupation and operator attendance

Note:Depending on material property,various downstream equipment are available

Main pelletizing recycling line capacity for reference:

Machine Size Date of Compactor Data of Single Screw Extruder

Throughput Rate

(kg/h)

Efficiency Volume

(Liter)

Motor Power

(KW)

Diameter of screw

(mm)

 L/D

Motor Power

(KW)
PSD 80 300 37 80 36 45/55 160-220
PSD 100 500 55 100 36 90/110 300-380
PSD 120 800 90 120 36 132 450-480
PSD 140 1000 110 140 36 160/185 500-650
PSD 160 1200 132 160 34 220/250 800-1000
PSD 180 1400 315 180 34 315 1000-1200

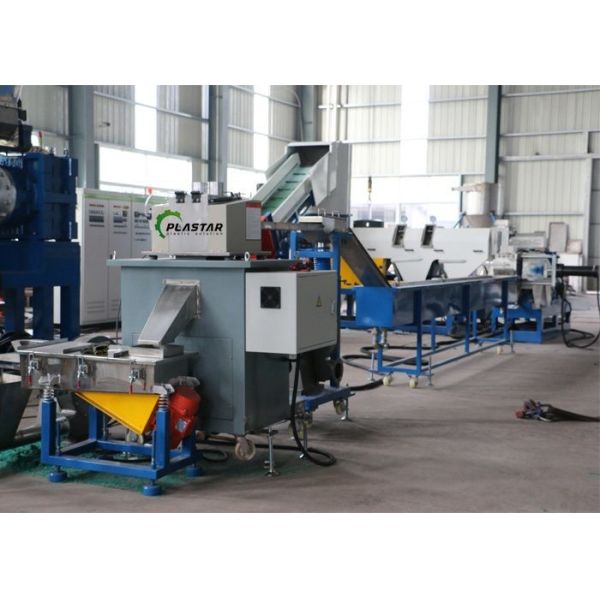

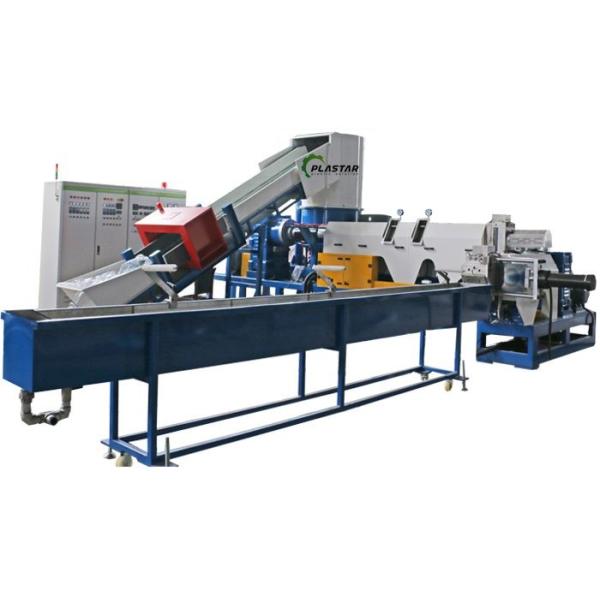

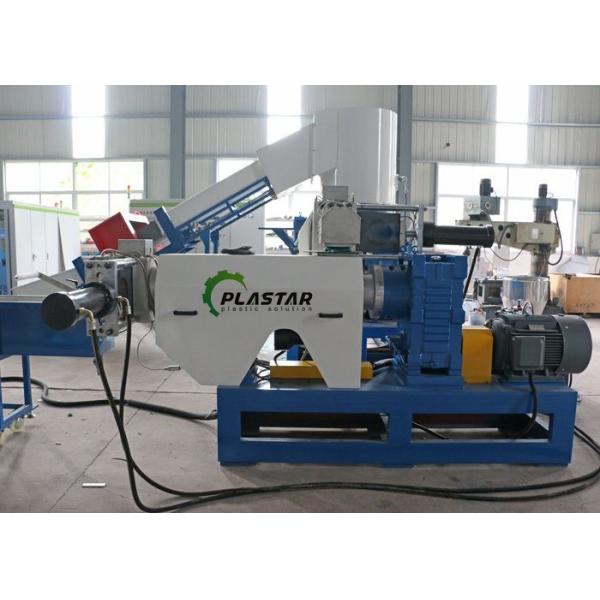

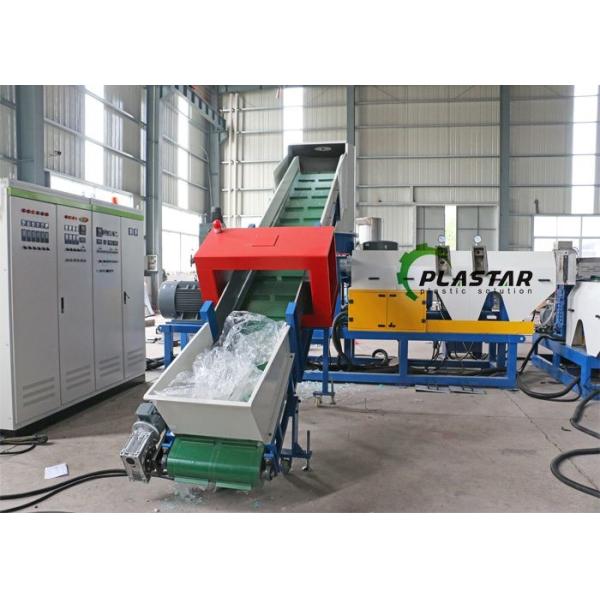

Machine pictures for reference:

Noodle Cutting Plastic Granulator Machine

Noodle Cutting Plastic Granulator Machine

Noodle Cutting Plastic Granulator Machine
