100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine
Specifications
Brand Name :
Purple Horn
Model Number :
PL500
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 25000-85000$
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
30-50 working days
Packaging Details :
wood box+wood pallet+stretch film package
Raw material :
PP battery cases
Processing capacity :
100-1500kg/h
Screw design :
Single screw extruder
Cutting type :
Noodle strip cutter
Machine type :
Mother baby extruder or two stages extruder
Feeding type :
Force feeding
Degassing device :
Vacuum degassing
Screen changer :
Without mesh type filter
Main motor brand :
Siemens beide
Name :
Plastic Recycling Granulator Machine
Description

100-1200kg/h Waste Plastic PP Battery Cases Recycling Pelletizing Granulator Machine Line

This SJ series Plastic recycling granulator with two-stages is mainly applied to pelletize Crushed (rigid) materials, like PP battery cases, bottle flakes & agglomerated films, etc.
This type pelletizing line has special screw design, effective degassing and filter (Hydraulic screen changer) system, with stable output and long service life
Machines are highly-automatic, only need 2 workers for operating the whole pelletizing production line. One worker for controlling the Electric control panel, one for feeding materials and changing Hydraulic Screen Changer.
Our Recycling Pelletizing Line Advantages:
1) Big capacity, our recycling pelletizing line can reach up to 1500kg/h, which provide more choice for customer.
2) More optional filter system for you, now besides the traditional hydraulic screen changer with mesh, we can also provide new design NO MESH screen changer, which saves the cost for mesh and reduces the labor work, equiped with this new design no mesh screen changer, two workers can operate 3-5 pelletizing line.
3) Two stage extrusion system can remove most of the impurities and improve the final pellets quality.

Our recycling line machine model for reference:

Model Screw diameter(mm) Main motor power (kW) Second motor power(kW) Capacity
SJ130/SJ140 130&140 132 45 400-500kg/h
SJ150/SJ160 150&160 160 55 600-800k/h
SJ160/SJ180 160&180 220/250 75 800-1000kg/h
SJ180/SJ200 180&200 250/315 75 900-1100kg/h

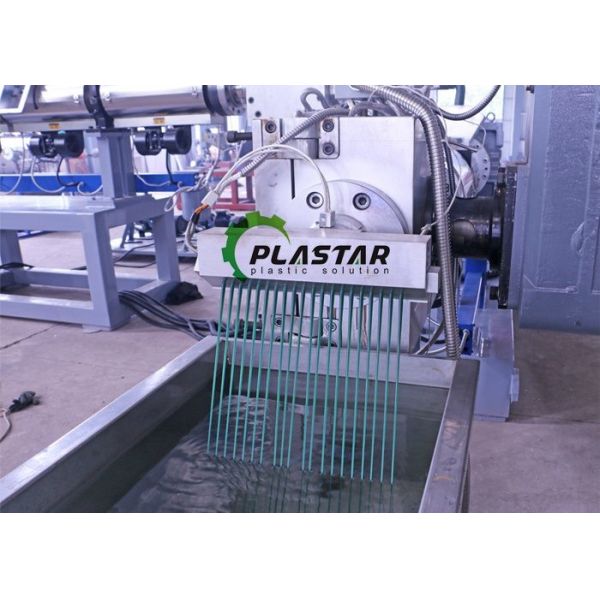

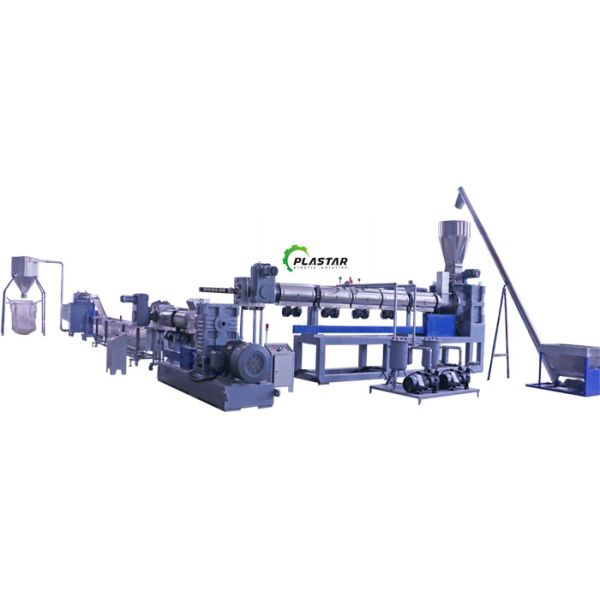

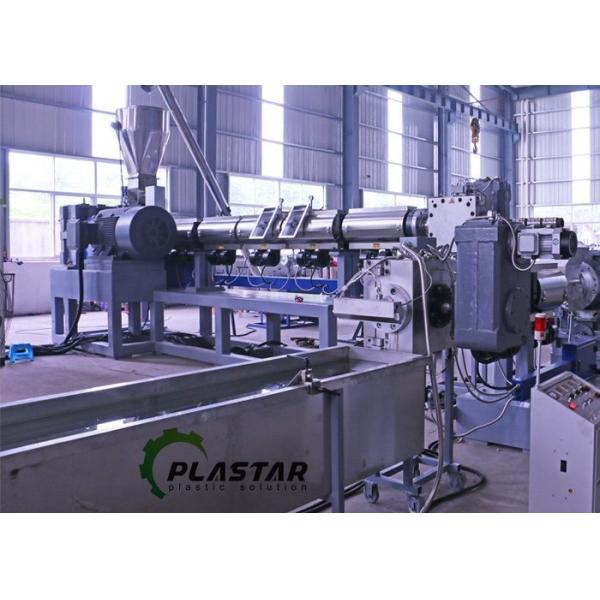

Machine pictures for reference:
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine

100 Kg/H PP Granules Making Machine

100 Kg/H PP Granules Making Machine

100 Kg/H PP Granules Making Machine
