PP Spunbond Non Woven Fabric Agglomerator Pelletizing Recycling Machine

PP Spunbond Non Woven Fabric Agglomerator

PSD series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.

What kind of raw materials are processable with our machines?

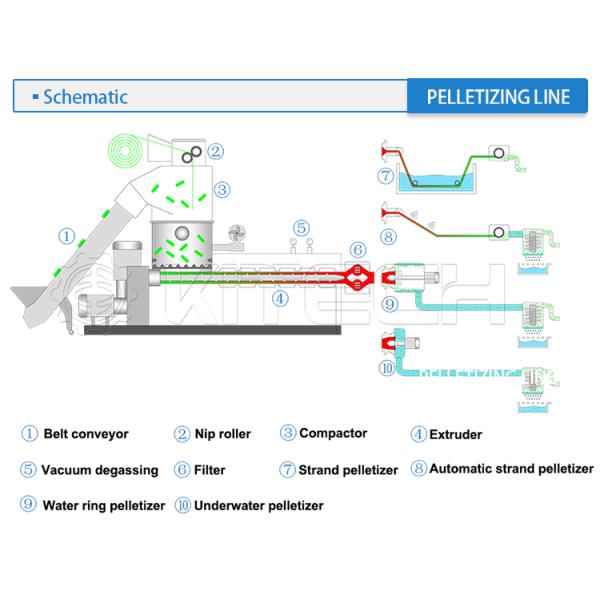

What's the machines working principle?

Purple Horn provides four different pelletiizng solutions for you aiming at different MFI polymer will get different shape output pellets.
Detail Specification

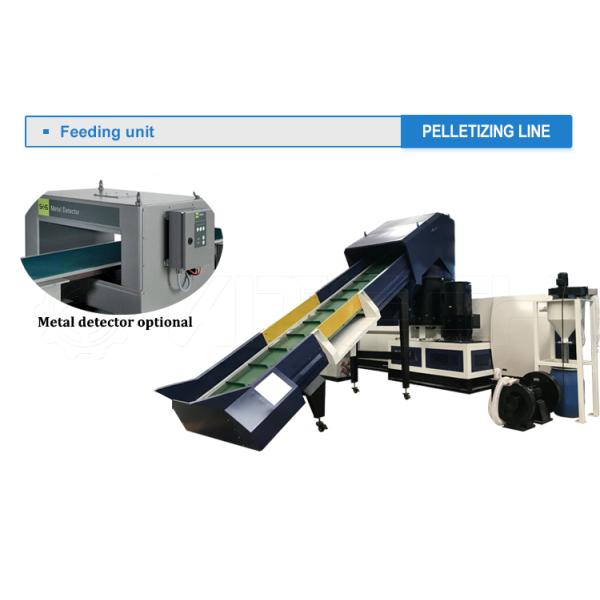

●The plastic material feed through belt conveyor get into the compactor.
●Metal detector can be installed on conveyor, to protect the compactor and extruder machine.

●The rotatory blades of compactor will cut up incoming scraps.
● Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point.
● Optimal designed guide structure compacts the material and directs it into extruder screw.

●A specialized single screw extruder applied to gently melt the pre-compacted material.
●The plastic scraps will be well melted, plasticized in the extruder.
●With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.

●A screen changer can be installed before die head to remove some metal, wood, dust, paper such impurities to get high quality output plastic melt.

●Die-face water ring pelletizing system set as the standard granulating method to get uniform size plastic pellets.
●The pellets would be cooled by water and dried by centrifugal dryer and finally conveyed into storage silo.

●Top brand components. ●PLC controller and HMI screen.
●One button start & stop. ●Multi-language operating system.
Main Features
●Ability:
Purple Horn pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets.
●Stability:
The pelletizing system is available for 24 hours working non-stop operation.
●Efficiency:
The pelletizing system have very low consumption values for electricity, water and labor.

●Control:
Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control.
●Service:
Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.

Purple Horn MACHINE HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable
running in customers' factory

THE AFTER-SALE SERVICE OF Purple Horn MACHINERY!

● After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

Would like to know more about Purple Horn Machine equipments, feel free to send us an inquiry!
