25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Dollar 16500-32000$/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
10-20 working days
Packaging Details :
Wood package
Plastic processed :
PLA, ABS, LDPE, PA12, HIPS, PP, TPU, PVA, PCL
Screw design :
Single-screw
Screw diameter :
45mm
Tolerance :
±0.02mm
Capacity :
20-25KG/H
PLC :
Siemens
Winding Effect :
Neat winding
Main motor brand :
Siemens beide
Usage :
3D Filament Printing,producing pla filament for 3D printer,3d printer filament making
Inverter :
ABB
Description

1.75mm PLA Filament Extruder 3D Printer Filament Extruder Extrusion Line

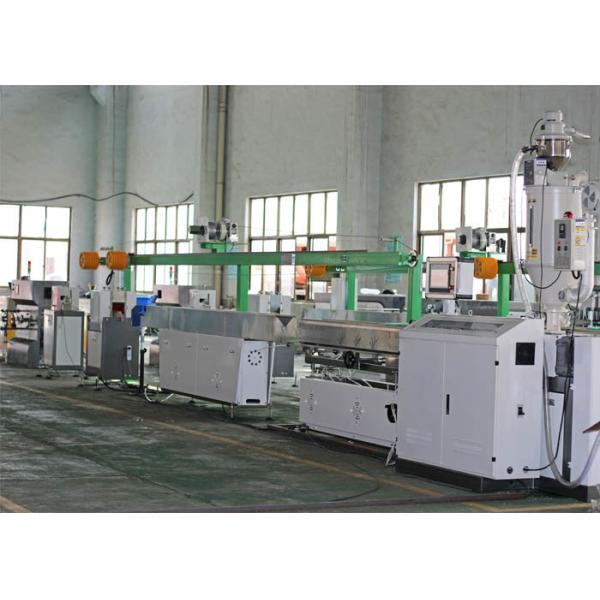

The Machine Composition of 3D Printer Filament Extrusion Line
No. Name Quantity Remarks
1 SJ-45 Main Extruder 1SET 45mm screw
2 High precise extrusion mould (1.75mm/3.0mm) 1SET Extrusion die is S136
3 6meters constant temperature circulating water tank 1SET SUS304 stainless steel
4 Independent drying device 1SET Two Pieces
5 Laser Diameter Measurement 1SET +-0.02mm
6 Storage device 1SET 8 meter
7 Four wheels Haul-off machine 1SET Wearable and thick
8 Single Station auto winding machine 1SET Automatic metering neat wind
Details Images
25KG/H 1.75mm PLA Filament Extruder Single Screw
SJ-45MM Main Extruder
-----Model: Φ45
-----Screw (Special for ABS PLA etc. material):
―Dia: 45mm
―Material: 38CrMoAlA
----Controlling system
—Power: 11KW
—Controlling type: Frequency inverter(Delta)
—Heating control zone: 6
—Barrel air cooling zone: 4
—Mould, a connecting body: 2
1.75mm and 3.0mm Mould
-----Steel Material: S136
-----Size: According to sample size
----One Mould can produce different diameter filament for 3D printer
Such as : Normal specification 1.75mm 3.0mm ,2.0mm 2.85mm
25KG/H 1.75mm PLA Filament Extruder Single Screw
6 meters Water Tank Cooling System
-----Steel Material: S136
-----Size: According to sample size
----One Mould can produce different diameter filament for 3D printer
Such as : Normal specification 1.75mm 3.0mm ,2.0mm 2.85mm
Dryer +Laser X + Four Wheels Puller
----High precision guide pillar to system
---- Screw center high regulation, Zhang He adjusted
----High efficiency, multi wedge belt abrasion resistance of the surface traction
----The precision of Frequency inverter controller
----Motor power: 0.75KW
25KG/H 1.75mm PLA Filament Extruder Single Screw
25KG/H 1.75mm PLA Filament Extruder Single Screw
8meters Storage Device
---The maximum line length: 100 meters
----Motor control: 0.75KW
----Tension control: magnetic particle clutch
----Wire diameter: 4.0mm
----Spool: 250mm
25KG/H 1.75mm PLA Filament Extruder Single Screw
Neat Winding Machine
---The function of automatic meter
---Tension control device
---Automatic cable winding
---Servo Motor Control System
---Motor Power : 0.75Kw*2SET

Company Profile
Expert manufacturer: Purple Horn specializes in the production of fully automated, highly precision 3D Printer Filament Extrusion Line for 10 years. The first supplier of 3D Printer Filament Extrusion Line .
Background: It has more than 100 redundant precision extrusion machines which took professional engineers nearly 7 years to build, and received more than 100 domestic and foreign customers’ experience and feedback.
Advantages: Purple Horn has achieved the standardization of batch production equipment and supplies. Purple Horn has grown as the domestic leading brand suppliers of high accuracy, high productivity, multi-functional 3D Printer Filament Extrusion Line! Precise machinery manufacturing, mature process control, intimate pre-sales customer services are all in Purple Horn. 3D Printer Filament Extrusion Line is your best choice!
