Specifications
Brand Name :
Purple Horn
Model Number :
PL25
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
10-20 working days
Packaging Details :
Wood package
Capacity :
0.5-1KG/H
Winding Effect :
Good winding
Whole Line Size :
12.5L*1.1W*2.3H(meter)
Filament Dia. :
1.75-3mm
Plastic processed :
PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Automatic grade :
Automatic
Main motor brand :
Siemens beide
Machine color :
Customized
Screw design :
Single-screw
Voltage :
Customized
After-sales service provided :
Engineers available to service machinery overseas,commissioning and training,Online support,Video technical support
Condition :
New
Usage :
3D Filament Printing,producing pla filament for 3D printer,3d printer filament making
Inverter :
ABB
Screw diameter :
25mm
Description

PEEK PETG PLA ABS 1-25 Kg/H 3D Printer Filament Extruder Machine

Description:

3D Printer Filament Extruder Machine has been applied in jewelry, footwear, industrial design, construction, engineering and construction, automobile, aerospace, dental and medical industries, education, geographic information system, civil engineering, guns and other fields.

Based on the analysis of the characteristics and performance of different structures of 3d printer filament extruder, we have a clearer understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream material for 3D printing for a long time.

Product Details:

1 Name: single screw extruder(PSD25)
Screw diameter: Φ25mm;
L/D: 25;
Screw material: 38CrMoAlA;
Surface treatment of screw: Hard chromium plating treatment; thickness of chromium coating: 0.5~0.6mm; hardness: HRC65.
Compression ratio: C/R=3.0 BM screw;
The design of screw is applicable to special rollers of ABS PLA plastic granule.
Heater: The stainless steel heater with the internal surface receiving polished finish and the external surface of stainless steel.
Heating section and power: 3 heating sections; 1.8kw/section;
Cooling of the roller: Air cooling of high efficiency and low noise
Cooling section and power: 3 cooling sections, 120w/section;
Reduction box: Hard tooth surface reduction box with spiral speed reduction transmission.
ZLY173 hard tooth surface helical tooth cylindrical gear reduction box, selection of 20CrMn materials, malcomising;the tooth surface receives gear-grinding machining with the noise lower than 75Db and centrifugal lubrication of machine oil.
Bearing brand: Japan "NSK"
Driving motor: AC "TECO" frequency converter, Wannan motor
Control system:
Cabinet form: The configuration of insulating plate and ventilating system conforms to the standard of CE certification.
Setting of functional panel: Power indicator, display of main current/voltage, temperature display of the heating area, heating starting/stoping button, display of screw rotating speed, operation, operation panel, pulling speed control, coiling speed control, plastic wire diameter display alarm button, emergency button.


Product Description:

No. Name Quantity
1.0 Drying hopper 1
2.0 Extruding machine
2.1 ABS PLA single screw extruder 1
2.2 die mold 1
3.0 Water tank 1
4.0 Traction machine 1
5.0 Wire storage support 1
6.0 Infrared diameter gauging device 1
7.0 Winding machine 1
8.0 Single coil forming machine 1

Machine Layout
Hopper; 2. Main machine; 3. Heat-water tank; 4. Cold-water tank; 5. Traction machine; 6. Infrared diameter gauging device; 7. Winding machine

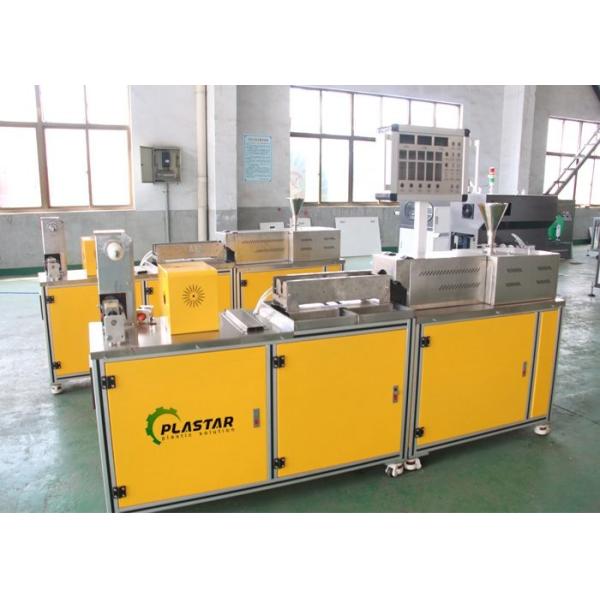

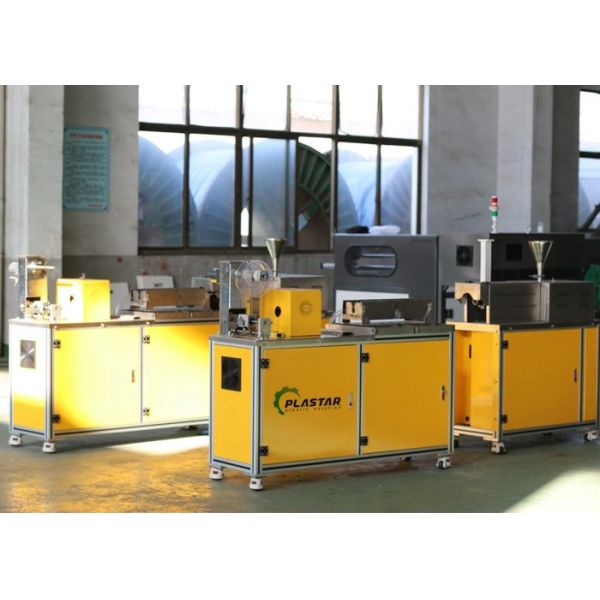

Our filament extrusion line pictures for reference:

PEEK PETG PLA ABS 1-25 Kg/H 3D Printer Filament Extruder MachinePEEK PETG PLA ABS 1-25 Kg/H 3D Printer Filament Extruder Machine
