High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
Specifications
Brand Name :
Purple Horn
Model Number :
PL25
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
10-20 working days
Packaging Details :
Wood package
Capacity :
0.5-1KG/H
Winding Effect :
Good winding
Whole Line Size :
2500mm L * 500mm W * 1700mm H
Filament Dia. :
1.75-3mm
Plastic processed :
PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Automatic grade :
Automatic
Main motor brand :
Siemens beide
Machine color :
Customized
Screw design :
Single screw
Voltage :
Customized
After-sales service provided :
Engineers available to service machinery overseas,commissioning and training,Online support,Video technical support
Condition :
New
Usage :
3D Filament Printing,producing pla filament for 3D printer,3d printer filament making
Inverter :
ABB
Screw diameter :
25mm
Description

PETG PLA ABS Lab Mini Small 3D Printer Filament Extruder Machine

Description:

1.75mm Small ABS PLA PP PE PVC Nylon PVA PC 3D Printer Filament Lab Extruder

1. Our company has been in 3D filament machine manufacturing field for more than 6 years, which means we have rich experience in this machine. No matter you are fresh or professional, we can assist you sove almost all your troubles you may face in the production of 3D filament.

2. Our machine tested all kinds of 3D printer filament suitable plastic material. And we can help you to test the material.

3. Our machine can make PLA, ABS, PETG,PEI, PVA, PU etc. We have many videos for you to study.

4. Our engineer can come your factory to instal the machine and train your workers.

5. We have cooperated with many big compaines and colleagues, and our machine is the leader in this area.

Product Details:

1 Name: single screw extruder(PSD25)
Screw diameter: Φ25mm;
L/D: 25;
Screw material: 38CrMoAlA;
Surface treatment of screw: Hard chromium plating treatment; thickness of chromium coating: 0.5~0.6mm; hardness: HRC65.
Compression ratio: C/R=3.0 BM screw;
The design of screw is applicable to special rollers of ABS PLA plastic granule.
Heater: The stainless steel heater with the internal surface receiving polished finish and the external surface of stainless steel.
Heating section and power: 3 heating sections; 1.8kw/section;
Cooling of the roller: Air cooling of high efficiency and low noise
Cooling section and power: 3 cooling sections, 120w/section;
Reduction box: Hard tooth surface reduction box with spiral speed reduction transmission.
ZLY173 hard tooth surface helical tooth cylindrical gear reduction box, selection of 20CrMn materials, malcomising;the tooth surface receives gear-grinding machining with the noise lower than 75Db and centrifugal lubrication of machine oil.
Bearing brand: Japan "NSK"
Driving motor: AC "TECO" frequency converter, Wannan motor
Control system:
Cabinet form: The configuration of insulating plate and ventilating system conforms to the standard of CE certification.
Setting of functional panel: Power indicator, display of main current/voltage, temperature display of the heating area, heating starting/stoping button, display of screw rotating speed, operation, operation panel, pulling speed control, coiling speed control, plastic wire diameter display alarm button, emergency button.


Product Description:

No. Name Quantity
1 Extruding machine
2 die mold 1
3 Water tank 1
4 Laser diameter measurement 1
5 Winding machine 1

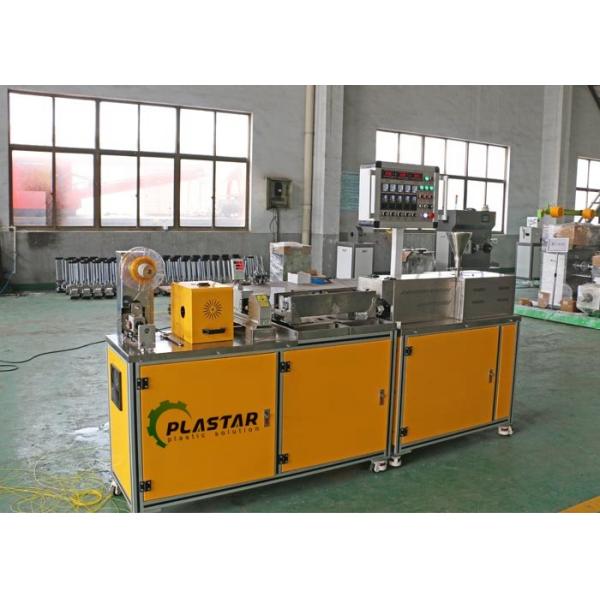

Our filament extrusion line pictures for reference:

High precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder MachineHigh precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder MachineHigh precision Mini Lab Scale SJ25 Single Screw 3D Printing Filament Making Extruder Machine
