Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Dollar 16000-31000$/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
20-30 working days
Packaging Details :
Wood package
Tolerance :
±0.01mm-0.03mm
Capacity :
1-25KG/H
PLC :
Siemens
Whole Line Size :
12.5L*1.1W*2.3H(meter)
Filament Dia. :
1.75-3mm
Plastic processed :
PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Main motor brand :
Siemens beide
Screw design :
Single-screw
Voltage :
Customized
Automatic grade :
Automatic
Warranty :
1 Year
Winding :
Neat winding
Description

Purple Horn Double Disc Winding Machine for 3D Printing Filament Extrusion Production

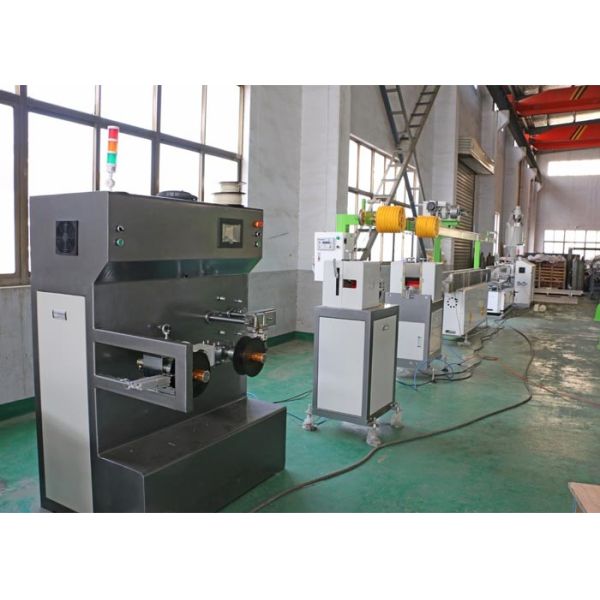

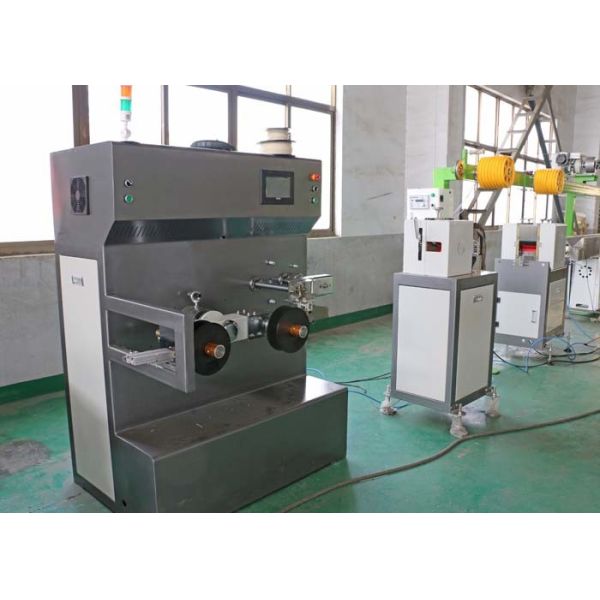

--Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.

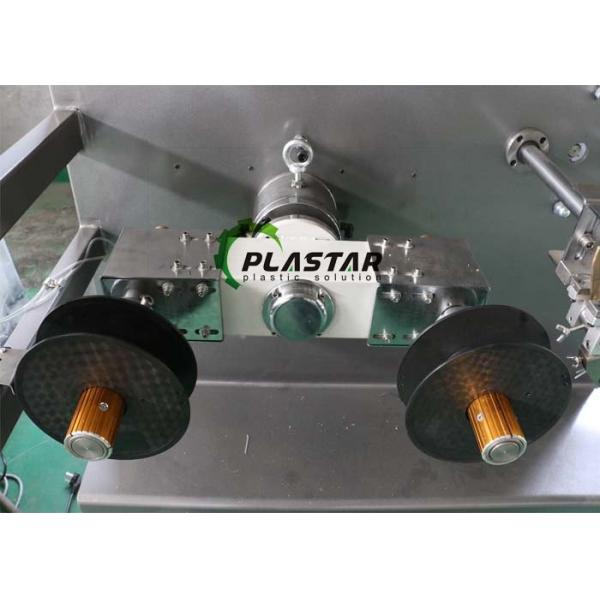

This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.

Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production

---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.

Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production

---The application of 3D printer filament

Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clear understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream
material for 3D printing for a long time.

We have different machine models with different capacity for your choice:

Model Power Diameter Capacity Tolerance Material
PL-25 2.2 KW 1.75mm-3mm

3-5Kg/h

 +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-30 4 KW 1.75mm-3mm 10-15Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-45 7.5 KW 1.75mm-3mm 20-25Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP

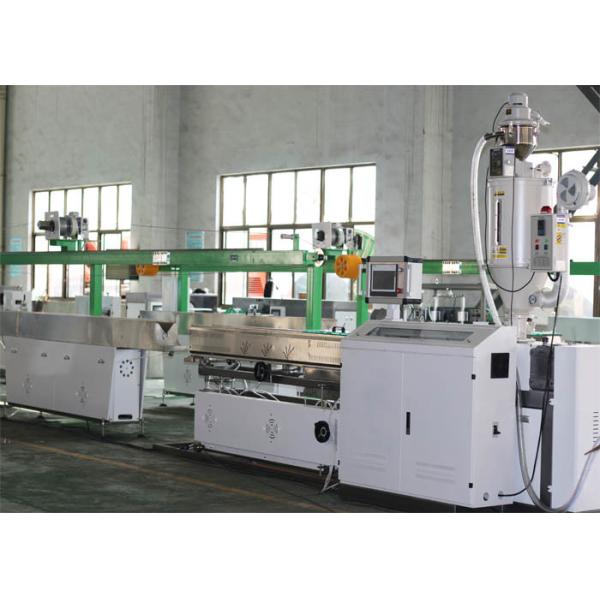

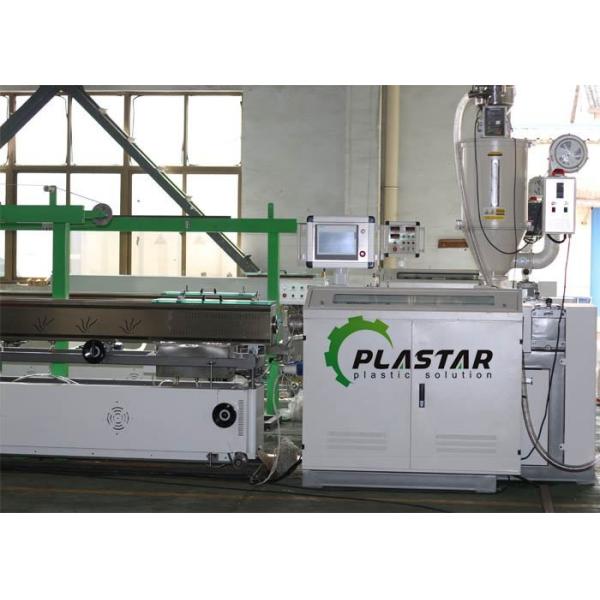

This Filament Extruder Machine is composed by following parts:

No. Item Qty
1 Hopper Dryer 1 Set
2 Single Screw Plastic Extruder 1 Set
3 Die 2 Sets
4 Hot & Cooling water cooling tank 2 Sets
5 Horizontal storage rank 1 Set
6 Backstop machine 1 set
7 Haul-off machine 1 set
8 Winding machine 1 set

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:

Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion ProductionDouble Disc Automatic Winding Machine For 3D Printing Filament Extrusion ProductionDouble Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production
