20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Dollar 16000-31000$/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
10-20 working days
Packaging Details :
Wood package
Plastic processed :
PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Screw design :
Single-screw
Screw diameter :
45mm
Tolerance :
±0.02mm-0.03mm
Filament Dia. :
1.75-3mm
Capacity :
20-25KG/H
PLC :
Siemens
Winding Effect :
Good winding
Whole Line Size :
12.5L*1.1W*2.3H(meter)
Main motor brand :
Siemens beide
Usage :
3D Filament Printing,producing pla filament for 3D printer,3d printer filament making
Inverter :
ABB
Description

3D Filament Extruder Machine 3d Printer Abs Filament Making Machine

Application
Mainly use to make all kinds of 3D printer filament.
Raw material
ABS, ABS+, PLA, PLA+, HIPS, PC, PEI, PVA, PC, PCL, PEEK, PETG etc.
Filament diameter
1.75mm, 2.85mm, 3mm
Filament tolerance
±0.02mm
Machine capacity, price, power consumption
Please contact us to get the latest information

We have different machine models with different capacity for your choice:

Model Power Diameter Capacity Tolerance Material
PL-25 2.2 KW 1.75mm-3mm 3-5Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-30 4 KW 1.75mm-3mm 10-15Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-45 7.5 KW 1.75mm-3mm 20-25Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP


This Filament Extrusion Line is Composed by following parts:

No. Item Qty
1 Hopper Dryer 1 Set
2 Single Screw Plastic Extruder 1 Set
3 Die 2 Sets
4 Hot & Cooling water cooling tank 2 Sets
5 Horizontal storage rank 1 Set
6 Backstop machine 1 set
7 Haul-off machine 1 set
8 Winding machine 1 set

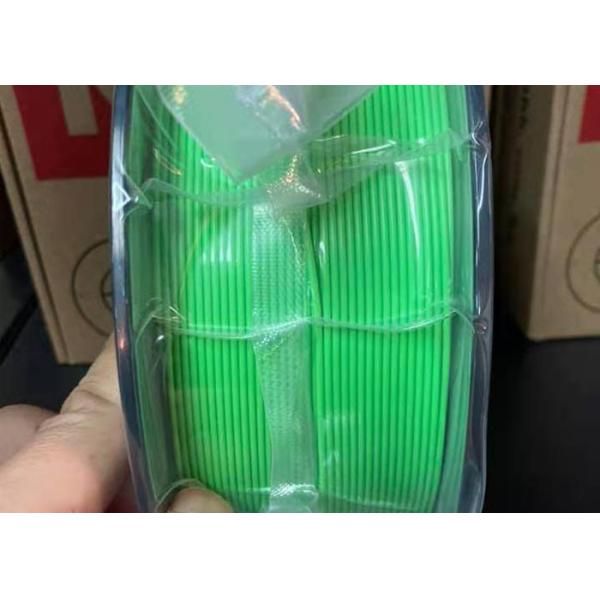

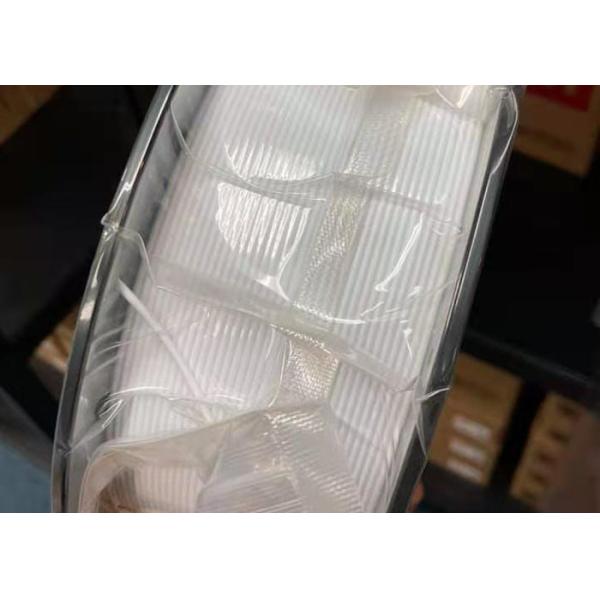

Our filament making extruder machine pictures for reference:

20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine

20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine20KG/H 3D Filament Extruder Machine ABS 3D Printer Filament Making Machine
