3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
3mm PLA ABS 3D printer filament production line 3KG/H
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Dollar 16000-31000$/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
20-30 working days
Packaging Details :
Wood package
Tolerance :
±0.01mm-0.03mm
Capacity :
1-25KG/H
PLC :
Siemens
Whole Line Size :
12.5L*1.1W*2.3H(meter)
Filament Dia. :
1.75-3mm
Plastic processed :
PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Main motor brand :
Siemens beide
Machine color :
Customized
Screw design :
Single-screw
Voltage :
Customized
Automatic grade :
Automatic
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,commissioning and training,Online support,Video technical support
Warranty :
1 Year
Usage :
3D Filament Printing,producing pla filament for 3D printer,3d printer filament making
Inverter :
ABB
Screw diameter :
45mm
Winding :
Neat winding
Description

1.75mm 3mm PLA/ABS 3D Filament Extruder Machine For 3D Printer

This new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.

This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.

3mm PLA ABS 3D printer filament production line 3KG/H

As the 3D printing becomes more and more popular in this world, the demand for the printing filament making extruder machine is also growing very fast, generated by our years' experience on extrusion machinery, our company developed the 3D printer filament extruder for 3D printer filament manufacturing. nowadays, our 3D printer filament extruder machine has been exported to many countries like France,Czech, UK,USA,Russia and so on. Our filament extruder machines are very welcomed because its multi-advantages:

Advantages:

1. Higher capacity compared with other suppliers using the same model.

2. Perfect tolerance: within +/-0.03mm, even+/-0.01mm.

3. It can produce the different diameter of filament from 1.75mm-3.0mm.

4. Easy operation: PLC full-automatically control system.

5. Produce different raw material: ABS PLA PA HIPS PETG,PEEK, PLA, WPC.

6. Low maintain. We did not receive any complaint once the machine is put into opearation.

7. We can provide installation services overseas.

---The application of 3D printer filament

Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clear understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream
material for 3D printing for a long time.

We have different machine models with different capacity for your choice:

Model Power Diameter Capacity Tolerance Material
PL-25 2.2 KW 1.75mm-3mm

3-5Kg/h

 +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-30 4 KW 1.75mm-3mm 10-15Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-45 7.5 KW 1.75mm-3mm 20-25Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP

This Filament Extruder Machine is composed by following parts:

No. Item Qty
1 Hopper Dryer 1 Set
2 Single Screw Plastic Extruder 1 Set
3 Die 2 Sets
4 Hot & Cooling water cooling tank 2 Sets
5 Horizontal storage rank 1 Set
6 Backstop machine 1 set
7 Haul-off machine 1 set
8 Winding machine 1 set

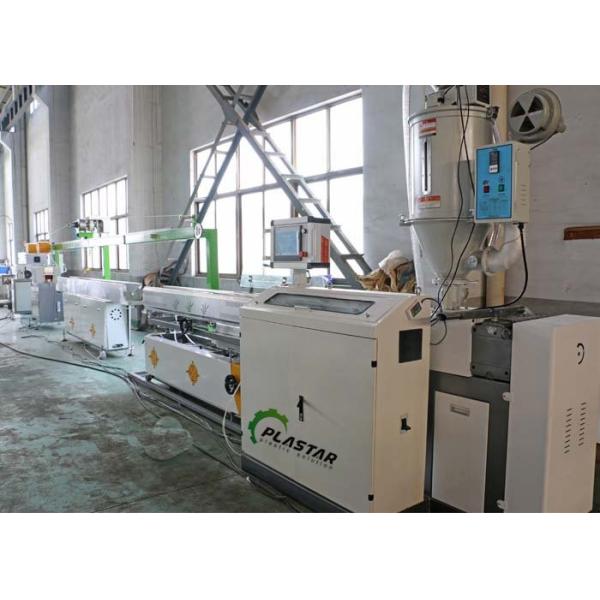

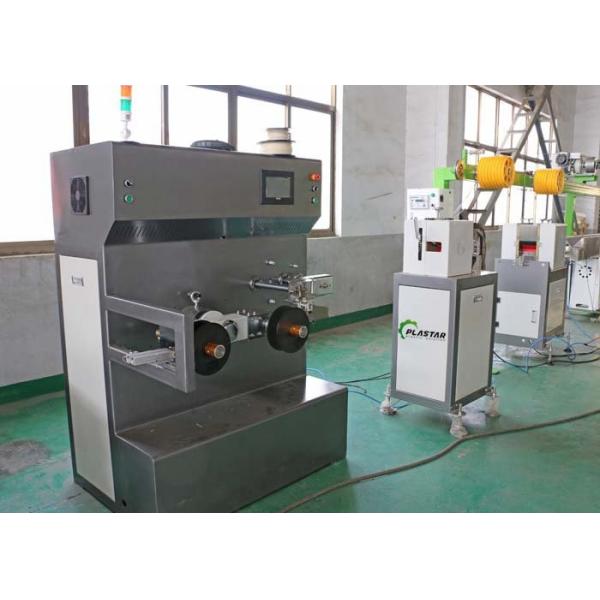

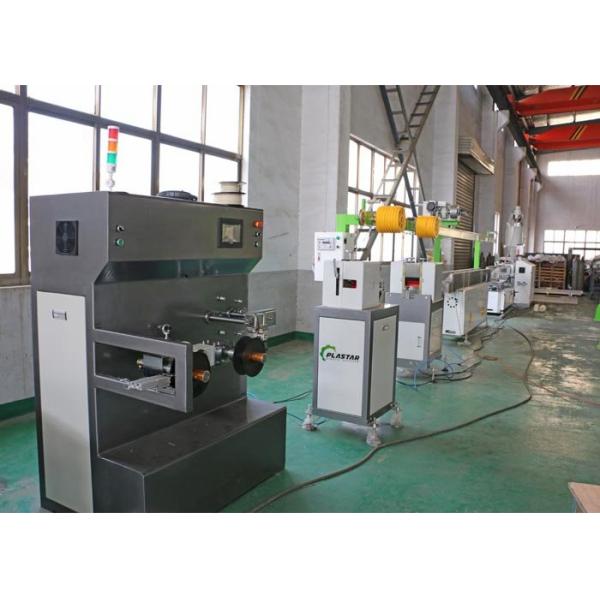

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:

3mm PLA ABS 3D printer filament production line 3KG/H3mm PLA ABS 3D printer filament production line 3KG/H3mm PLA ABS 3D printer filament production line 3KG/H
