ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
Specifications
Brand Name :
Purple Horn
Model Number :
PL45
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Dollar 16000-31000$/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/year
Delivery Time :
20-30 working days
Packaging Details :
Wood package
Tolerance :
±0.01mm-0.03mm
Capacity :
1-25KG/H
PLC :
Siemens
Whole Line Size :
12.5L*1.1W*2.3H(meter)
Filament Dia. :
1.75-3mm
Plastic processed :
PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Main motor brand :
Siemens beide
Machine color :
Customized
Screw design :
Single-screw
Voltage :
Customized
Automatic grade :
Automatic
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,commissioning and training,Online support,Video technical support
Warranty :
1 Year
Usage :
3D Filament Printing,producing pla filament for 3D printer,3d printer filament making
Inverter :
ABB
Screw diameter :
45mm
Winding :
Neat winding
Description

ZHANGJIAGANG Purple Horn ABS PLA Plastic 3D Printer Filament Extruder Making Machine

PLA TPU 3D Printer Filament Extruder Machine
3D Printing Filament Extruder/ Extruding Machine has high output and and performance. It can produce ABS/PLA filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within 0.03mm.
Advantages:
1. Large capacity: Max capacity can reach 22kg/h ( 18kg/h for PETG)

2. Easy operation: humanization design

3. Stable working performance: Tolarance 0.02mm

4. Good winding performance: Most can be perfect.

5. 9 years experience, customers all around the world.

Suitable material: PLA, PLA+, ABS, PCL, PETG, PA, PC, PCL, PEI, PVA, PEEK etc, for some special material, we can test for you.
Filament diameter: 175mm, 2.85mm
Filament tolarance: 0.02mm.
Filament capacity: 16-22kg/h

Model Power Diameter Capacity Tolerance Material
PL-25 2.2 KW 1.75mm-3mm 3-5Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-30 4 KW 1.75mm-3mm 10-15Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-45 7.5 KW 1.75mm-3mm 20-25Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP

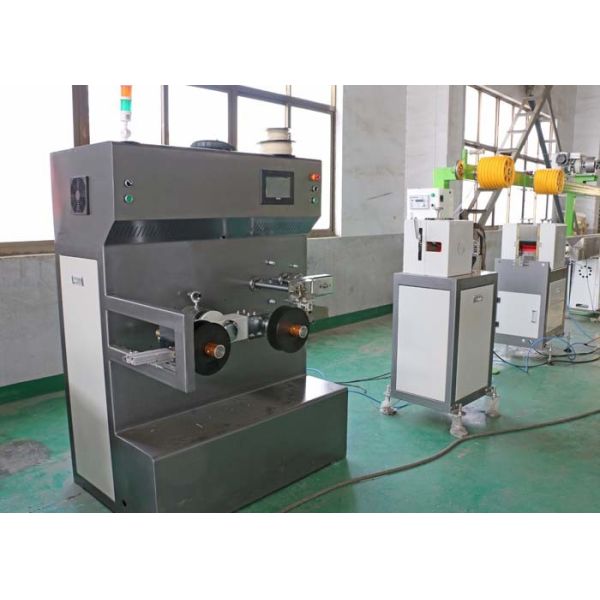

--Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.

This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.

ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H

--Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.

ABS PLA Plastic 3D Printer Filament Making Machine 5kg/H

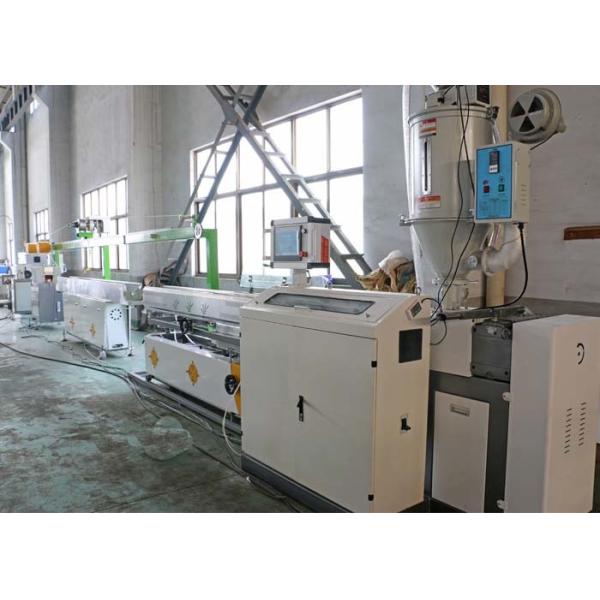

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:

ABS PLA Plastic 3D Printer Filament Making Machine 5kg/HABS PLA Plastic 3D Printer Filament Making Machine 5kg/HABS PLA Plastic 3D Printer Filament Making Machine 5kg/H
