Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Specifications
Brand Name :
Purple Horn
Model Number :
PL500
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 25000-85000$
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
30-50 working days
Packaging Details :
wood box+wood pallet+stretch film package
Raw material :
PP PE ABS etc
Processing capacity :
100-1500kg/h
Screw design :
Single screw extruder
Cutting type :
Water ring type
Machine type :
Mother baby extruder or two stages extruder
Feeding type :
Force feeding or compactor
Degassing device :
Vacuum degassing
Screen changer :
Without mesh type filter
Main motor brand :
Siemens beide
Name :
Plastic Recycling Pelletizing Line
Description

Water Ring Type Waste PP PE Flakes Pelletizing Recycling Line

This type of plastic pelletizing production line is desighed for hard pp hdpe ldpe crushed flakes specially,with features of energy saving ,stable performance , good plasticizing , cleaning and drying effection;

Pelletizing flow: the bulk materials or thick flakes after crushed will be conveyed into the single screw extruder by screw loader,then,compressing,plasticizing in the extruder and remove the violatile and moisture by the vacuum system,after filtering through the filtration system to pelletize into granules. with different screw diameters of single screw extruders, the capacity can cover 100 to 1500kg/h.

Recycling Material of Plastic Recycling Pelletizing Machine:

Material PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc.
Shape Film, Bag, Woven bag, Raffia,Bubble film, Foam, nonwoven fabric, Filament,sheet,chips
Type Loose, Bundle, Roll, Scrap
Origin Off cut, Washed film, In house waste, Regrind

Basic data of Plastic Recycling Pelletizing Machine:

Machine Size Date of Compactor Data of Single Screw Extruder

Throughput Rate

(kg/h)

Efficiency Volume

(Liter)

Motor Power

(KW)

Diameter of screw

(mm)

 L/D

Motor Power

(KW)
PSD 80 300 37 80 36 45/55 160-220
PSD 100 500 55 100 36 90/110 300-380
PSD 120 800 90 120 36 132 450-480
PSD 140 1000 110 140 36 160/185 500-650
PSD 160 1200 132 160 34 220/250 800-1000
PSD 180 1400 315 180 34 315 1000-1200

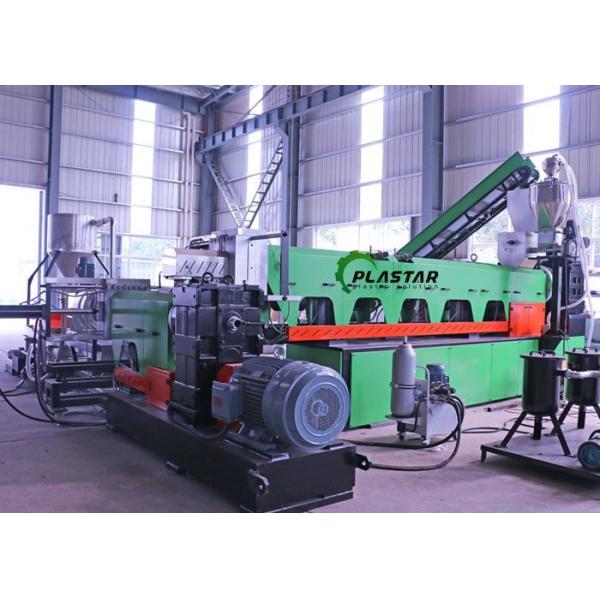

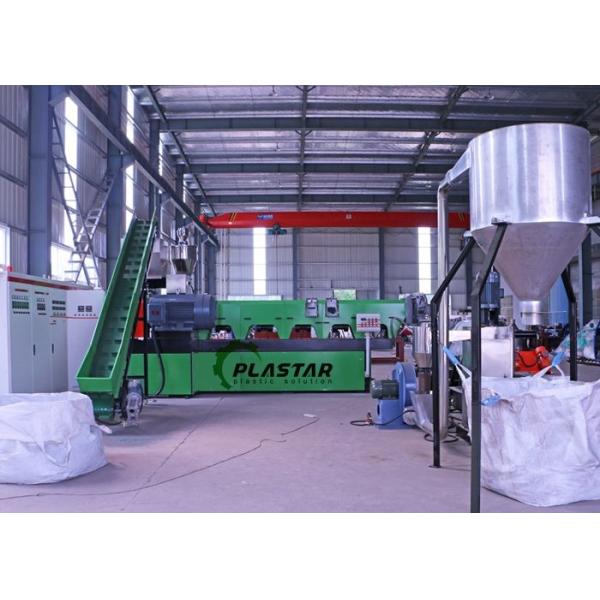

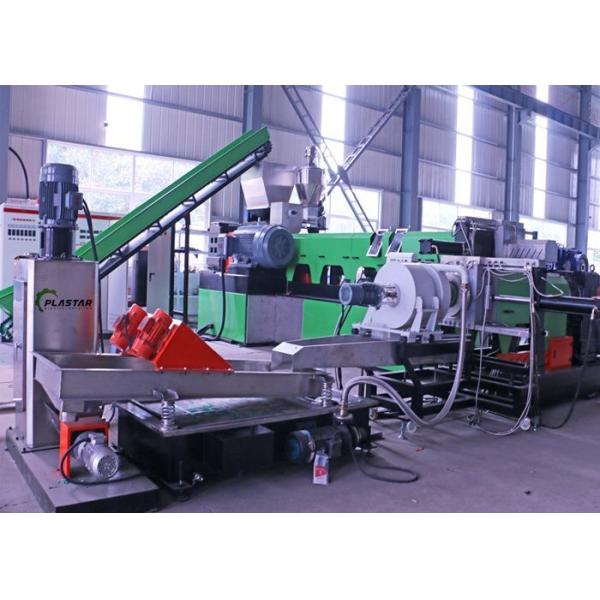

Machine pictures for reference:
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes

Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes

Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes

Water Ring Plastic Pelletizing Recycling Machine For Waste PP PE Flakes
