HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
Specifications
Brand Name :
Hanlong
Model Number :
HLSPL07
Certification :
GRS, BSCI,ISO9001,Authentic and traceable
Place of Origin :
Haining,Zhejiang,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100,000.00--150,000.00 sqm meters per day
Delivery Time :
15-20 days
Packaging Details :
Craft Paper Or Hard Tupe Package
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Name :
Swimming Pool Vinyl Liner
Color :
Blue
Tear Resistance :
High
Installation :
Easy
Chemical Resistance :
High
Thickness :
1.5mm
Surface :
Smooth, Embossed Or Customized
Durability :
UV-resistant
Application :
swimming pool
Description

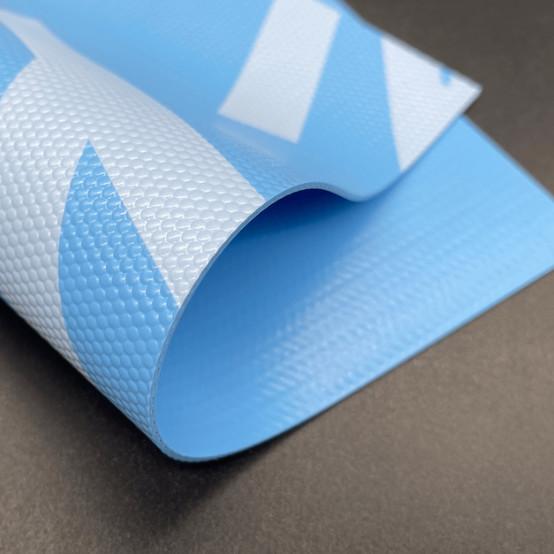

HLSPL07 1.5MM Durable PVC Swimming Pool Vinyl Liner Alphabet Printing Design

Superior Features of PVC Swimming Pool Liner Fabric

The fabric is fabricated from a strengthened, varnished, and calendered flexible PVC film. Its stabilization mechanism contains no heavy metals, ensuring safety and environmental - friendliness. With built - in UV stabilization, it can resist the harmful effects of sunlight. Moreover, we offer the possibility to create various colors, thicknesses, and embossed patterns according to your specific needs. Our customizable OEM production service guarantees that your unique requirements are met precisely.
​
The performance of the tarpaulin in terms of weather resistance, durability, and application adaptability hinges on the PVC formula. By incorporating specialized functional additives into the PVC coating, the material is enhanced with multiple advantageous properties:
​
✦ Fire - retardant feature, making it an excellent choice for building materials and interior design projects​
✦ UV - shielding ability, which effectively inhibits degradation and color fading under prolonged sun exposure​
✦ Anti - microbial property, providing reliable protection in environments where pests and high humidity are prevalent​
✦ Chemical - resilient characteristic, allowing it to maintain integrity in acidic and alkaline conditions​
✦ Electro - static - resistant quality, which is beneficial for the production of mine ventilation ducts​
✦ Exceptional flexibility, enabling the tarpaulin to endure repeated folding, unfolding, and bending without damage

Diverse Application of PVC Swimming Pool Liner Fabric

For the construction or renovation of residential and private swimming pools, our liners are fully customizable and straightforward to install. In public pool facilities, including community centers, hotels, and water parks, they are designed to handle high - volume usage and large - scale installations. Temporary or mobile pools, such as inflatable and kiddie pools, can be assembled rapidly, and our liners can be stored compactly when not in use. In aquaculture and landscape ponds, the liners offer waterproofing, microbial resistance, and contribute to water purification. For industrial tanks dealing with chemicals or sewage, they act as a robust, corrosion - resistant, and leak - proof lining. Special pools, like hot springs, saltwater pools, and spas, can also benefit from our liners, as they can adapt to the specific water and temperature conditions.

Specifications of PVC Swimming Pool Liner Fabric

General Properties

PropertyUnitStandardTypical Value
Surfaceg/m²EN ISO 1849-21850 ± 5%
Water Absorption% (Weight)EN ISO 62 Method 1≤ 1
Available Widthmm-1500-1830

Physical Properties

PropertyUnitStandardTypical Value
Thickness Over EmbossmmEN 1849-21.5 ± 5%
Elongation at Break%EN 12311-2 Method A15 ≤ E ≤ 30
Tensile Strength at BreakN/50mmEN 12311-2 Method A≥ 1100
Peel ResistanceN/50mmEN 12316-2≥ 80
Tear StrengthNEN 12310-2≥ 180
Dimensional Stability%EN 1107-2≤ 0.5
Foldability at Low Temperature°CEN 495-5-25
Welding Peel ResistanceN/50mmEN 12316-2≥ 80

Reinforcement (100% PES)

PropertyUnitStandardTypical Value
Construction (warp, weft)thr/cm-2.8
Weightg/m²-93
Fabric TexTex-110

Durability

PropertyUnitStandardTypical Value
Artificial Ageing (6000h)Grey scaleEN ISO 4892-2:2006 Method A, cycle 1
EN 20105-A02		≥ 3
Microorganism Resistance% (Weight loss)EN ISO 846:1997 Method D≤ 1
Bacterium Resistance-EN ISO 846:1997 Method C
Strain: ATCC 25607		No Staining
Chlorine ResistanceGrey ScaleEN 15836-2 Annex C≥ 3
Staining Agent ResistanceDegreeEN 15836-2 Annex D≥ 4
Abrasion Resistance-EN ISO 5470-1Pass
Temperature Resistance°CEN 15836-2≤ 32

Processing & Storage

CategoryPropertyComments
ProcessingHot Air WeldingOptimization needed depending on machine
Storage & HandlingStorage TemperatureIndoor storage at room temperature (max. 23°C)
Storage TimeRecommended ≤ 18 months after production date
Processing TemperatureStore at room temperature (max. 23°C) for ≥24h before processing


HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design
HLSPL07 1.5MM PVC Swimming Pool Vinyl Liner Alphabet Printing Design

FAQ

Q : What are your main products?
A : We focus on PVC tarpaulin, Industrial tarpaulin, Inflatable boat fabric, PVC mesh fabric, PVC mesh fabric, Functional fabric, Flex banner, etc.
Q : What is your delivery time?
A : It depends on your ordered item and quantity. Normally, we can finish the bulk products within 25 days.

Q : What is your MOQ?
A :lt depends on your requirements, Flexible materials 3000 meters.
Q :Can I request free samples?
A :Yes, of course. We can offer normal color and thickness samples to you free of charge. But with freight cost collection.
Q :What are the payment terms you can accept?
A:Our Payment Terms are 30% TT in advance,70% balance against BL copy , and L/C At Sight.
Q :What's the shipping way?
A :
1.For small orders, We will suggest sending them by DHL, UPS, or another cheap express so that you can get the products fast and
safely.
2.For big orders, we can deliver them according to the client's requests.
Q :How to ensure order quality?
A :
1. Quality is a priority! Every worker and QC keeps the QC from the very beginning to the very end:
2. All materials we used passed the strength test.
3. Skillful workers care for every detail in the sewing, printing, stitching, and packing process;
