Specifications
Place of Origin :
Haining,Zhejiang,China
Brand Name :
Hanlong
Certification :
GRS, BSCI,ISO9001,Authentic and traceable
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Craft Paper Or Hard Tupe Package
Delivery Time :
15-20 days
Supply Ability :
100,000.00--150,000.00 sqm meters per day
Tear Resistance :
High
Name :
PVC Swimming Pool Liner
Easy To Install :
Yes
Chemical Resistance :
Yes
Thickness :
1.5mm
Size :
Customizable
Application :
Swimming Pool Lining
Waterproof :
Yes
Design :
Water Ripple Design
Description

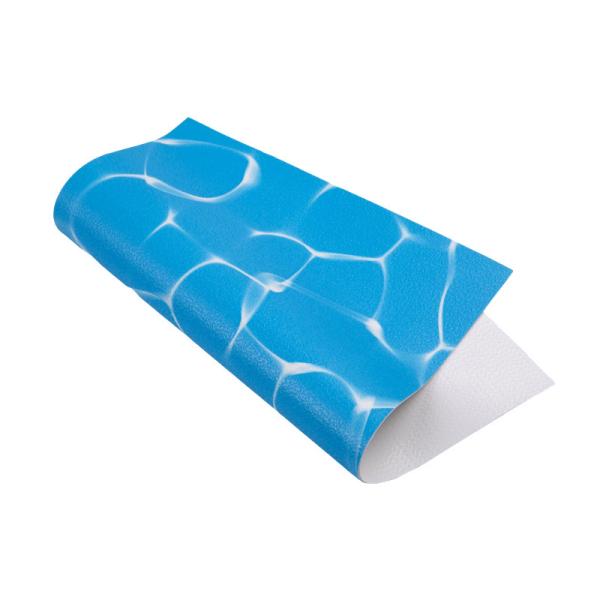

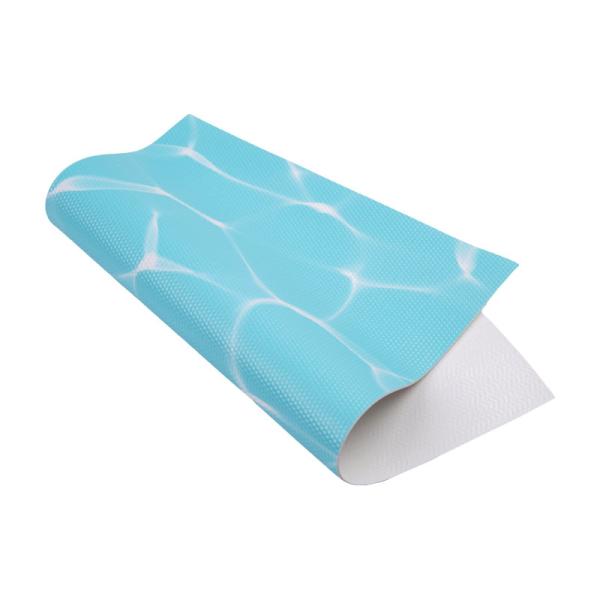

1.5MM PVC Water Ripple Design Swimming Pool Vinyl Liner Fire Retardancy

Features of PVC Swimming Pool Liner Fabric

Our PVC Swimming Pool Liner Fabric is the epitome of safety and customization. Constructed from reinforced varnished calendered flexible PVC film, it utilizes a heavy-metal-free stabilization system, ensuring a clean and healthy swimming environment. With built-in UV stabilization, it can withstand prolonged sun exposure without degradation. Tailor it to your needs with a wide range of colors, thicknesses, and embosses available upon request. Our customized OEM production service allows you to bring your unique pool vision to life, making it suitable for residential pools, public aquatic centers, and more.

The PVC formulation dictates the tarpaulin's performance in terms of weather resistance, durability, and compatibility with various applications. By integrating functional additives into the PVC coating, the material is endowed with features such as:
▶ Fire retardancy, ideal for building materials and interior decorations
▶ UV resistance, safeguarding against degradation and fading under intense UV exposure
▶ Bacterial resistance, providing protection in pest - prone and high - humidity environments
▶ Chemical resistance, suitable for acidic and alkaline conditions
▶ Anti - static properties, applicable in the manufacturing of mine ventilation ducts
▶ High flexibility, enabling the tarpaulin to endure repeated folding, unfolding, and bending

Application of PVC Swimming Pool Liner Fabric

Residential/private pool construction/renovation liners: Customizable and easy to install

Public pools (community/hotels/water parks): Compatible with high - usage and large - area scenarios

Temporary/mobile pools (inflatable/kiddie): Quick assembly and compact storage

Aquaculture/landscape ponds: Waterproof, microbial - resistant, and water - purifying

Industrial tanks (chemical/sewage): Corrosion - resistant and leak - proof lining

Special pools (hot spring/saltwater/spa): Adaptable to unique water and temperature conditions

Specifications of PVC Swimming Pool Liner Fabric

General Properties

PropertyUnitStandardTypical Value
Surfaceg/m²EN ISO 1849-21850 ± 5%
Water Absorption% (Weight)EN ISO 62 Method 1≤ 1
Available Widthmm-1500-1830

Physical Properties

PropertyUnitStandardTypical Value
Thickness Over EmbossmmEN 1849-21.5 ± 5%
Elongation at Break%EN 12311-2 Method A15 ≤ E ≤ 30
Tensile Strength at BreakN/50mmEN 12311-2 Method A≥ 1100
Peel ResistanceN/50mmEN 12316-2≥ 80
Tear StrengthNEN 12310-2≥ 180
Dimensional Stability%EN 1107-2≤ 0.5
Foldability at Low Temperature°CEN 495-5-25
Welding Peel ResistanceN/50mmEN 12316-2≥ 80

Reinforcement (100% PES)

PropertyUnitStandardTypical Value
Construction (warp, weft)thr/cm-2.8
Weightg/m²-93
Fabric TexTex-110

Durability

PropertyUnitStandardTypical Value
Artificial Ageing (6000h)Grey scaleEN ISO 4892-2:2006 Method A, cycle 1
EN 20105-A02
≥ 3
Microorganism Resistance% (Weight loss)EN ISO 846:1997 Method D≤ 1
Bacterium Resistance-EN ISO 846:1997 Method C
Strain: ATCC 25607
No Staining
Chlorine ResistanceGrey ScaleEN 15836-2 Annex C≥ 3
Staining Agent ResistanceDegreeEN 15836-2 Annex D≥ 4
Abrasion Resistance-EN ISO 5470-1Pass
Temperature Resistance°CEN 15836-2≤ 32

Processing & Storage

CategoryPropertyComments
ProcessingHot Air WeldingOptimization needed depending on machine
Storage & HandlingStorage TemperatureIndoor storage at room temperature (max. 23°C)
Storage TimeRecommended ≤ 18 months after production date
Processing TemperatureStore at room temperature (max. 23°C) for ≥24h before processing


1.5mm Water Ripple PVC Swimming Pool Liner Manufacturers Fire Retardancy
1.5mm Water Ripple PVC Swimming Pool Liner Manufacturers Fire Retardancy
1.5mm Water Ripple PVC Swimming Pool Liner Manufacturers Fire Retardancy
1.5mm Water Ripple PVC Swimming Pool Liner Manufacturers Fire Retardancy
1.5mm Water Ripple PVC Swimming Pool Liner Manufacturers Fire Retardancy
1.5mm Water Ripple PVC Swimming Pool Liner Manufacturers Fire Retardancy

FAQ

Q : What are your main products?
A : We focus on PVC tarpaulin, Industrial tarpaulin, Inflatable boat fabric, PVC mesh fabric, PVC mesh fabric, Functional fabric, Flex banner, etc.
Q : What is your delivery time?
A : It depends on your ordered item and quantity. Normally, we can finish the bulk products within 25 days.

Q : What is your MOQ?
A :lt depends on your requirements, Flexible materials 3000 meters.
Q :Can I request free samples?
A :Yes, of course. We can offer normal color and thickness samples to you free of charge. But with freight cost collection.
Q :What are the payment terms you can accept?
A:Our Payment Terms are 30% TT in advance,70% balance against BL copy , and L/C At Sight.
Q :What's the shipping way?
A :
1.For small orders, We will suggest sending them by DHL, UPS, or another cheap express so that you can get the products fast and
safely.
2.For big orders, we can deliver them according to the client's requests.
Q :How to ensure order quality?
A :
1. Quality is a priority! Every worker and QC keeps the QC from the very beginning to the very end:
2. All materials we used passed the strength test.
3. Skillful workers care for every detail in the sewing, printing, stitching, and packing process;
