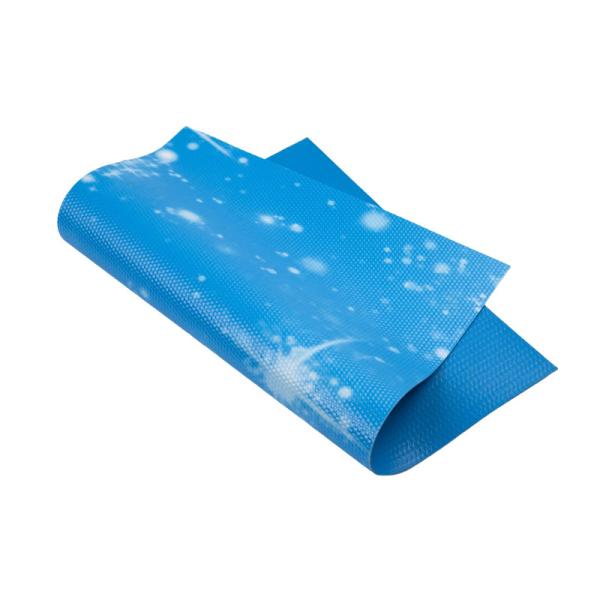

HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
Specifications
Brand Name :
Hanlong
Model Number :
HLSPL09
Certification :
GRS, BSCI,ISO9001,Authentic and traceable
Place of Origin :
Haining,Zhejiang,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100,000.00--150,000.00 sqm meters per day
Delivery Time :
15-20 days
Packaging Details :
Craft Paper Or Hard Tupe Package
Name :
PVC Swimming Pool Liner
Thickness :
1.5MM
Color :
Blue
Application :
swimming pool
Tear Resistance :
High
Suitable For Above Ground Pools :
Yes
Waterproof :
Yes
Easy To Clean :
Yes
Size :
Customizable
Pattern :
Fantastic Star Pattern
Description

HLSPL09 1.5MM PVC Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization

Remarkable Features of PVC Swimming Pool Vinyl Liner

Constructed from a reinforced, varnished, and calendered flexible PVC film, our swimming pool liner fabric stands out. Its stabilization system is heavy - metal - free, which is not only safe but also environmentally conscious. With reliable UV stabilization, it can maintain its quality under sunlight. We are able to develop various colors, thicknesses, and embosses to match your specific demands, and our OEM production service can be fully customized to your requirements.​
The performance of the tarpaulin in terms of weather durability, lifespan, and application suitability depends on the PVC formula. Through the integration of functional additives into the PVC coating, the material is equipped with these remarkable features:​
◆ Fire - proofing property, ideal for applications in building materials and interior decorations​
◆ UV - blocking ability, which safeguards the material from degradation and discoloration due to UV exposure​
◆ Microbe - resistant characteristic, providing protection in environments where pests and high humidity are common​
◆ Chemical - tolerant feature, allowing it to be used in acidic and alkaline conditions​
◆ Static - resistant quality, which is valuable for the production of mine ventilation ducts​
◆ Enhanced flexibility, enabling the tarpaulin to endure repeated folding, unfolding, and bending without issues

Application of PVC Swimming Pool Vinyl Liner

In the construction and renovation of residential and private pools, our liners can be tailored to your needs and are easy to install. For public pools, such as those in communities, hotels, and water parks, they are suitable for high - frequency use and large - scale installations. Temporary or mobile pools, like inflatable and kiddie pools, can be quickly set up with our liners, which can be stored compactly later. In aquaculture and landscape ponds, our liners are waterproof, resistant to microorganisms, and contribute to water quality improvement. In industrial tanks for chemicals and sewage, they act as a corrosion - resistant and leak - proof lining. Special pools, such as hot springs, saltwater pools, and spas, can also use our liners, as they can adapt to the specific water and temperature requirements.

Specifications of PVC Swimming Pool Vinyl Liner

General Properties

PropertyUnitStandardTypical Value
Surfaceg/m²EN ISO 1849-21850 ± 5%
Water Absorption% (Weight)EN ISO 62 Method 1≤ 1
Available Widthmm-1500-1830

Physical Properties

PropertyUnitStandardTypical Value
Thickness Over EmbossmmEN 1849-21.5 ± 5%
Elongation at Break%EN 12311-2 Method A15 ≤ E ≤ 30
Tensile Strength at BreakN/50mmEN 12311-2 Method A≥ 1100
Peel ResistanceN/50mmEN 12316-2≥ 80
Tear StrengthNEN 12310-2≥ 180
Dimensional Stability%EN 1107-2≤ 0.5
Foldability at Low Temperature°CEN 495-5-25
Welding Peel ResistanceN/50mmEN 12316-2≥ 80

Reinforcement (100% PES)

PropertyUnitStandardTypical Value
Construction (warp, weft)thr/cm-2.8
Weightg/m²-93
Fabric TexTex-110

Durability

PropertyUnitStandardTypical Value
Artificial Ageing (6000h)Grey scaleEN ISO 4892-2:2006 Method A, cycle 1
EN 20105-A02		≥ 3
Microorganism Resistance% (Weight loss)EN ISO 846:1997 Method D≤ 1
Bacterium Resistance-EN ISO 846:1997 Method C
Strain: ATCC 25607		No Staining
Chlorine ResistanceGrey ScaleEN 15836-2 Annex C≥ 3
Staining Agent ResistanceDegreeEN 15836-2 Annex D≥ 4
Abrasion Resistance-EN ISO 5470-1Pass
Temperature Resistance°CEN 15836-2≤ 32

Processing & Storage

CategoryPropertyComments
ProcessingHot Air WeldingOptimization needed depending on machine
Storage & HandlingStorage TemperatureIndoor storage at room temperature (max. 23°C)
Storage TimeRecommended ≤ 18 months after production date
Processing TemperatureStore at room temperature (max. 23°C) for ≥24h before processing


HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization
HLSPL09 Reinforced Swimming Pool Vinyl Liner Fantastic Star Pattern UV Stabilization

FAQ

Q : What are your main products?
A : We focus on PVC tarpaulin, Industrial tarpaulin, Inflatable boat fabric, PVC mesh fabric, PVC mesh fabric, Functional fabric, Flex banner, etc.
Q : What is your delivery time?
A : It depends on your ordered item and quantity. Normally, we can finish the bulk products within 25 days.

Q : What is your MOQ?
A :lt depends on your requirements, Flexible materials 3000 meters.
Q :Can I request free samples?
A :Yes, of course. We can offer normal color and thickness samples to you free of charge. But with freight cost collection.
Q :What are the payment terms you can accept?
A:Our Payment Terms are 30% TT in advance,70% balance against BL copy , and L/C At Sight.
Q :What's the shipping way?
A :
1.For small orders, We will suggest sending them by DHL, UPS, or another cheap express so that you can get the products fast and
safely.
2.For big orders, we can deliver them according to the client's requests.
Q :How to ensure order quality?
A :
1. Quality is a priority! Every worker and QC keeps the QC from the very beginning to the very end:
2. All materials we used passed the strength test.
3. Skillful workers care for every detail in the sewing, printing, stitching, and packing process;
