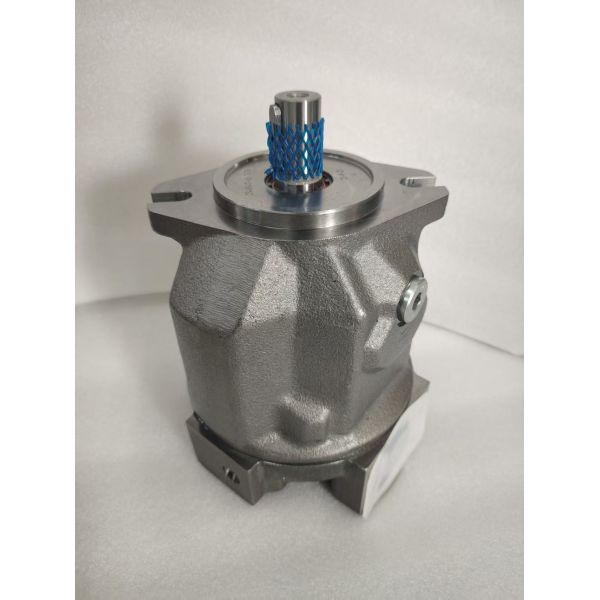

Aluminum Rexroth Hydraulic Pump A10VSO45DR/31L-PPA12N00 A10VSO45DG/31R-PPA12N00
Aluminum Rexroth Hydraulic Pump A10VSO45DR/31L-PPA12N00 A10VSO45DG/31R-PPA12N00
Specifications
Brand Name :
Rexroth
Model Number :
A10VSO45DR/31L-PPA12N00 A10VSO45DG/31R-PPA12N00
Certification :
ISO
Place of Origin :
Germany
MOQ :
negotiation
Price :
negotiation
Payment Terms :
D/P,D/A,L/C,T/T,Western Union,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Power :
Hydraulic
Port :
Foshan, China
Fuel :
Diesel
Pump :
Rexroth
Type :
Hydraulic Pump
Material :
High-grade Steel and Aluminum
Pumptype :
Variable Displacement / Fixed Displacement
Seal Type :
Lip Seal or Mechanical Seal
Description

A10VSO45DR/31L-PPA12N00 A10VSO45DG/31R-PPA12N00 German Rexroth mechanical hydraulic equipment hydraulic pump imported with original packaging

Parameter

Details

Product Name

Hydraulic Piston Pump

Brand Name

REXROTH

Place of Origin

Fujian, China

Pump Type

Piston Pump

Material

Cast Iron

Application

Construction Machinery

Displacement

Depend on Model

Dimension (L*W*H)

Depend on Model

Maximum Flow Rate

Depend on Model

Power (W)

Depend on Model

Pressure

Depend on Model

Structure

Depend on Model

Weight

33 (Unit: Not Specified)

Warranty

1 Year

Package

Wooden Box

Showroom Location

None

Aluminum Rexroth Hydraulic Pump A10VSO45DR/31L-PPA12N00 A10VSO45DG/31R-PPA12N00

A10VSO71DG/31R-VPA12N00

A10VSO45DR/31L-PPA12N00

A10VSO45DG/31R-PPA12N00

A10VSO45DRG/31R-VPA12N00

A10VSO45DFR1/31R-VPA12N00

A10VSO45DFLR/31R-VPA12N00

A10VSO45DR/31L-VPA12N00

A10VSO71DRG/31R-PPA12N00

A10VSO71DRG/31R-PPA42N00

A10VSO71DFR1/31R-PPA12N00

A10VSO71DR/31R-VPA12N00

A10VSO45DR/31R-PPA12N00

A10VSO45DRG/31R-PPA12N00

A10VSO45DFR/31R-PPA12N00

A10VSO45DFR1/31L-PPA12N00

A10VSO71DFLR/31R-PPA42N00

A10VSO71DR/31R-PPA12N00

A10VSO71DR/31R-PPA42N00

A10VSO71DG/31R-PPA12N00

A10VSO71DFLR/31RPPA12N00

A10VSO71DR/31R-VPA42N00

A10VSO45DFR1/31R-PPA12N00

A10VSO45DFLR/31R-PPA12N00

A10VSO45DR/31R-VPA12N00

A10VSO45DFLR/31L-VPA12N00

A10VSO71DG/31R-PPA42N00

A10VSO71DFR/31R-PPA12N00

A10VSO71DFR/31R-PPA42N00

A10VSO71DFR1/31R-PPA42N00

A10VSO28DFLR/31L-VPA12N00

A10VSO28DRG/31L-VPA12N00

FAQ;

1. Model Interpretation & Core Parameters

Q1: What does each segment of the model "A10VSO45DFR/31R-PPA12N00" represent?
A1: The model encodes key configurations: ① A10VSO: Series identifier (A=Axial piston pump, 10=Size series, V=Variable displacement, S=Swashplate design, O=Open circuit); ② 45: Displacement (45 cm³/r at maximum swashplate angle); ③ D: Mounting flange (DIN 24336, Type D); ④ FR: Control mode (F=Flow control, R=Pressure limiting function integrated); ⑤ 31R: Hydraulic control circuit (31=Standard control circuit, R=Right-hand rotation view from drive end); ⑥ PPA12: Seal and port configuration (PP=Pressure port thread type, A12=Seal material compatible with mineral oil); ⑦ N00: Supplementary features (N=No special options, 00=Standard version).
Q2: What are the key performance parameters (pressure, speed, flow) of this pump?
A2: Nominal parameters (mineral oil, 40-60°C): ① Pressure: Nominal working pressure 280 bar (suction port: max 10 bar, case drain: max 6 bar); peak pressure 350 bar (short-term, ≤5% operating time); ② Speed: Minimum stable speed 600 rpm, nominal speed 1500 rpm, maximum speed 2400 rpm; ③ Flow: At 1500 rpm, max flow 67.5 L/min (45 cm³/r × 1500 rpm / 1000), adjustable via swashplate angle (0-100% displacement); ④ Power: Matches 30-37 kW drive motor (calculated by P = Q × p / 600, where Q=flow in L/min, p=pressure in bar).
