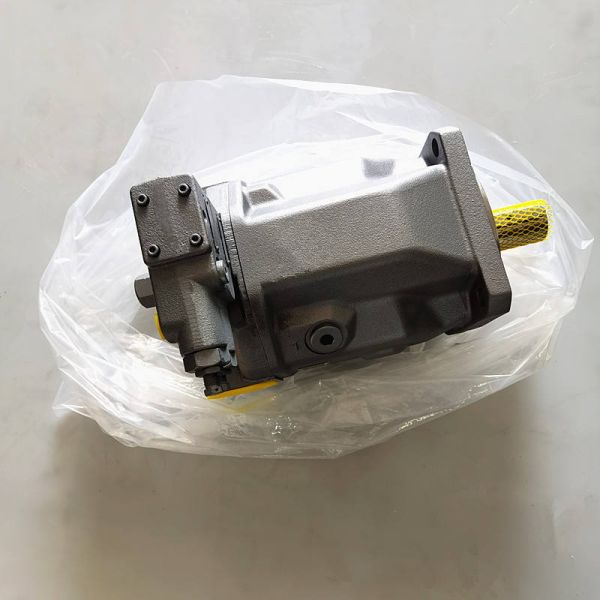

Industrial Rexroth Hydraulic Pump A10VSO71DRG/31R-PPA12N00 A10VSO71DRG/31R-PPA42N00
Industrial Rexroth Hydraulic Pump A10VSO71DRG/31R-PPA12N00 A10VSO71DRG/31R-PPA42N00
Specifications
Brand Name :
Rexroth
Model Number :
A10VSO71DRG/31R-PPA12N00 A10VSO71DRG/31R-PPA42N00
Certification :
ISO
Place of Origin :
Germany
MOQ :
negotiation
Price :
negotiation
Payment Terms :
D/P,D/A,L/C,T/T,Western Union,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Pump :
Rexroth
Productname :
Rexroth Hydraulic Pump
Mounting Type :
Flange, Foot, and Face
Mountingtype :
Flange Mount
Power :
Hydraulic
After Serive :
online video
Cylinder Number :
Single Cylinder
Description

A10VSO71DRG/31R-PPA12N00 A10VSO71DRG/31R-PPA42N00 German Rexroth mechanical hydraulic industrial hydraulic pump imported with original packaging

Parameter

Details

Product Name

Hydraulic Piston Pump

Brand Name

REXROTH

Place of Origin

Fujian, China

Pump Type

Piston Pump

Material

Cast Iron

Displacement

Depend on Model

Dimension (L*W*H)

Depend on Model

Maximum Flow Rate

Depend on Model

Power (W)

Depend on Model

Pressure

Depend on Model

Structure

Depend on Model

Weight

33 (Unit: Not Specified)

Warranty

1 Year

Package

Wooden Box

Showroom Location

None



Industrial Rexroth Hydraulic Pump A10VSO71DRG/31R-PPA12N00 A10VSO71DRG/31R-PPA42N00

A10VSO140DR/31R-PPA12N00

A10VSO140DFR1/31R-PPA12N00

A10VSO71DRG/31R-VPA12N00

A10VSO71DRG/31R-VPA42N00

A10VSO71DFR1/31L-VPA42N00

A10VSO71DFR1/31L-VPA12N00

A10VSO100DRG/31R-PPA12N00

A10VSO100DFR1/31R-PPA12N00

A10VSO100DFLR/31R-PPA12N00

A10VSO100DRG/31R-VPA12N00

A10VSO100DRG/31L-PPA12N00

A10VSO100DRG/31L-VPA12N00

A10VSO140DRG/31R-PPA12N00

A10VSO71DFR/31R-VPA12N00

A10VSO71DG/31R-VPA12N00

A10VSO45DR/31L-PPA12N00

A10VSO45DG/31R-PPA12N00

A10VSO45DRG/31R-VPA12N00-

A10VSO45DFR1/31R-VPA12N00

A10VSO45DFLR/31R-VPA12N00

A10VSO45DR/31L-VPA12N00

A10VSO71DRG/31R-PPA12N00

A10VSO71DRG/31R-PPA42N00

A10VSO71DFR1/31R-PPA12N00

A10VSO71DR/31R-VPA12N00

A10VSO45DR/31R-PPA12N00

A10VSO45DRG/31R-PPA12N00

A10VSO45DFR/31R-PPA12N00

FAQ;

2. Installation & Commissioning

Q1: What is the step-by-step commissioning process for first-time operation?
A8: Follow this sequence to avoid damage: ① Pre-filling: Inject HLP 46 oil into the pump housing via the case drain port until oil overflows; rotate the motor manually 5-8 turns to ensure all components are lubricated; ② Air bleeding: Open the pressure port valve slightly, jog the motor (10s on, 20s off) 3 times—air is purged when continuous oil flows from the pressure port; ③ Control parameter setting: For FR control, adjust the flow control knob to set max flow (e.g., 60 L/min) and the pressure limiting knob to 300 bar (20 bar below peak pressure); ④ Run-in: Operate at 50% speed (750 rpm) and 50% load for 30 minutes, check for leaks (focus on flange and port seals) and abnormal noise (normal noise ≤75 dB); ⑤ Performance test: Gradually increase to full speed and full load, verify flow stability (fluctuation ≤5%) and pressure response time (≤0.2s).
Q2: Can the pump be installed vertically, and what precautions apply?
A9: Vertical installation is allowed (motor above or below the pump), but with additional precautions: ① Motor above pump: Ensure the case drain line is installed with a siphon loop (height ≥ pump center) to prevent oil from flowing back into the motor; ② Motor below pump: Fill the pump housing with oil before startup to avoid dry friction of upper bearings; ③ Suction line: Install a check valve to prevent oil from draining back to the tank when the pump is stopped; ④ Ventilation: Ensure the pump housing has good ventilation to avoid heat accumulation (vertical installation may increase temperature by 5-8°C).
