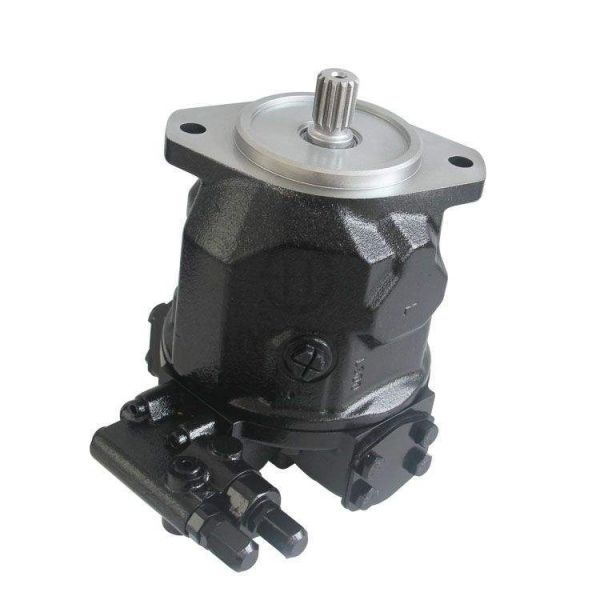

A10VSO45DFR/31R-PPA12N00 A10VSO45DFR1/31L-PPA12N00 Mechanical Hydraulic Pump
A10VSO45DFR/31R-PPA12N00 A10VSO45DFR1/31L-PPA12N00 Mechanical Hydraulic Pump
Specifications
Brand Name :
Rexroth
Model Number :
A10VSO45DFR/31R-PPA12N00 A10VSO45DFR1/31L-PPA12N00
Certification :
ISO
Place of Origin :
German
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Shafttype :
Splined or keyed shaft
After Serive :
online video
Type :
Hydraulic Pump
Pump Shaft Position :
Horizontal
Material :
High-grade steel and aluminum components
Structure :
variable piston pump
Productname :
Rexroth Hydraulic Pump
Description

A10VSO45DFR/31R-PPA12N00 A10VSO45DFR1/31L-PPA12N00 German Rexroth mechanical hydraulic equipment engineering hydraulic pump imported with original packaging

Parameter

Details

Product Name

Hydraulic Piston Pump

Brand Name

REXROTH

Place of Origin

Fujian, China

Pump Type

Piston Pump

Material

Cast Iron

Application

Construction Machinery

Displacement

Depend on Model

Dimension (L*W*H)

Depend on Model

Maximum Flow Rate

Depend on Model

Power (W)

Depend on Model

Pressure

Depend on Model

Structure

Depend on Model

Weight

33 (Unit: Not Specified)

Warranty

1 Year

Package

Wooden Box

Showroom Location

None

A10VSO45DFR/31R-PPA12N00 A10VSO45DFR1/31L-PPA12N00 Mechanical Hydraulic Pump

A10VSO100DFLR/31R-PPA12N00

A10VSO100DRG/31R-VPA12N00

A10VSO100DRG/31L-PPA12N00

A10VSO100DRG/31L-VPA12N00

A10VSO140DRG/31R-PPA12N00

A10VSO71DFR/31R-VPA12N00

A10VSO71DG/31R-VPA12N00

A10VSO45DR/31L-PPA12N00

A10VSO45DG/31R-PPA12N00

A10VSO45DRG/31R-VPA12N00-

A10VSO45DFR1/31R-VPA12N00

A10VSO45DFLR/31R-VPA12N00

A10VSO45DR/31L-VPA12N00

A10VSO71DRG/31R-PPA12N00

A10VSO71DRG/31R-PPA42N00

A10VSO71DFR1/31R-PPA12N00

A10VSO71DR/31R-VPA12N00

A10VSO45DR/31R-PPA12N00

A10VSO45DRG/31R-PPA12N00

A10VSO45DFR/31R-PPA12N00

A10VSO45DFR1/31L-PPA12N00

A10VSO71DFLR/31R-PPA42N00

A10VSO71DR/31R-PPA12N00

A10VSO71DR/31R-PPA42N00

A10VSO71DG/31R-PPA12N00

A10VSO71DFLR/31R-PPA12N00

A10VSO71DR/31R-VPA42N00

A10VSO45DFR1/31R-PPA12N00

A10VSO45DFLR/31R-PPA12N00

A10VSO45DR/31R-VPA12N00

A10VSO45DFLR/31L-VPA12N00

A10VSO71DG/31R-PPA42N00

A10VSO71DFR/31R-PPA12N00

A10VSO71DFR/31R-PPA42N00

A10VSO71DFR1/31R-PPA42N00

A10VSO28DFLR/31L-VPA12N00

A10VSO28DRG/31L-VPA12N00

A10VSO28DFR1/31R-VPA12N00

A10VSO28DR/31R-VPA12N00

A10VSO28DFLR/31R-PPA12N00

A10VSO28DFR/31R-PPA12N00

A10VSO28DR/31R-PPA12N00

A10VSO28DG/31L-PPA12N00

FAQ;

1. Maintenance & Servicing

Q1: What is the recommended maintenance schedule, and what are the key checkpoints?
A15: Tiered maintenance plan: ① Daily: Check oil level (maintain 2/3-3/4 of the tank), case temperature (<90°C), and listen for abnormal noise; record pressure and flow values; ② Weekly: Inspect all hose connections for tightness; clean the suction strainer and pressure gauge; ③Monthly: Test pilot pressure (port X) and adjust to 35 bar if needed; check for oil contamination (use a contamination test kit); ④ 6-month: Replace the return filter (25 μm) and send oil for analysis (check particle count and moisture); ⑤ 12-month: Full disassembly—replace seals (kit R900912345), bearings (R900014567), and valve plates; measure piston-cylinder and swashplate wear; ⑥ 24-month: Replace the entire pump if wear exceeds 30% of allowable limits.
Q2: How to properly replace hydraulic oil and ensure system cleanliness?
A16: Step-by-step oil change: ① Preparations: Heat the oil to 40-50°C (reduces viscosity for thorough drainage); shut down the system and relieve pressure (open the pressure relief valve); ② Drainage: Open the tank drain valve and remove the suction strainer to drain residual oil (takes 15-20 minutes); ③ Cleaning: Flush the tank with 5-10 L of new oil (circulate with a portable pump for 5 minutes); clean the strainer and suction line with compressed air; ④ Refilling: Use a filtered oil filler (10 μm) to add VG 46 oil to the tank; bleed air from the pump (jog motor 3 times); ⑤ Post-check: Run the pump at low speed for 10 minutes, then take an oil sample to verify cleanliness (NAS 9 class).
