Specifications
Place of Origin :
Beijing, China
Brand Name :
TrusTMIG
condition :
New
type :
MIG Welders
arc current :
40A
pulse frequency :
50/60 HZ
pilot arc current :
250A
rated duty cycle :
35%
motor type :
DC MOTOR
dimensions :
560x240x460mm
usage :
Welding
voltage :
230V
weight (kg) :
22
warranty :
1 Year
Plug Type :
US PLUG, european plug
Power :
9.5KVA
Product name :
DC MMA Pulse TIG Pulse MIG Welding Machine
Color :
AS request
Function :
TIG Output Current Range
Stainless Steel Welding :
Yes
2T/4T :
Yes
Lift TIG :
Yes
Synergic MIG :
Yes
Duty Cycle :
35%
MIG Output Current Range :
30-250A
TIG Output Current Range :
10-250A
Description

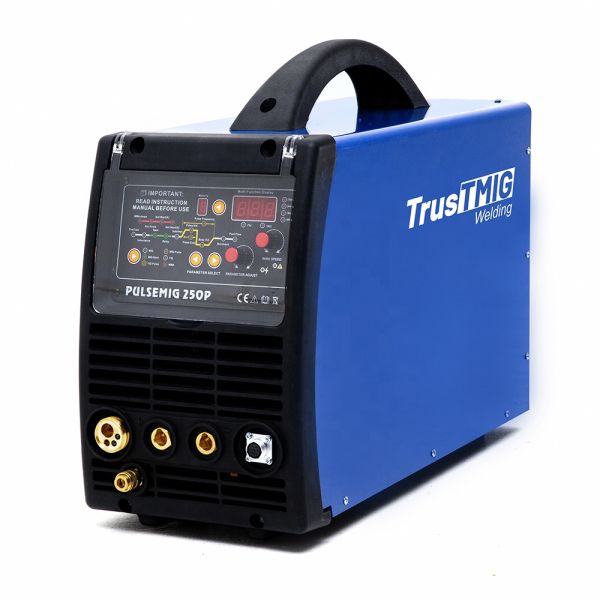

Pulse TIG MIG MMA 3 IN 1 Welder

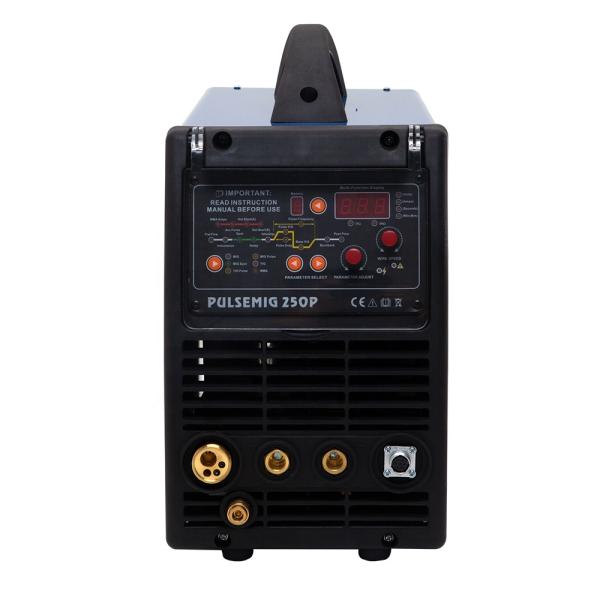

PULSE MIG250P

Product Description

What can you expect from our PULSE MIG250P?
Functions: PULSE TIG, PULSE MIG, SYNERGIC MIG, LIFT TIG, DC MMA
Suitable Material: Mild steel and Stainless Steel

Features:
1. Pulse MIG/Pulse TIG/Synergic MIG/MMA 3IN1 multi-process
2. Lift-TIG
3. IGBT technology

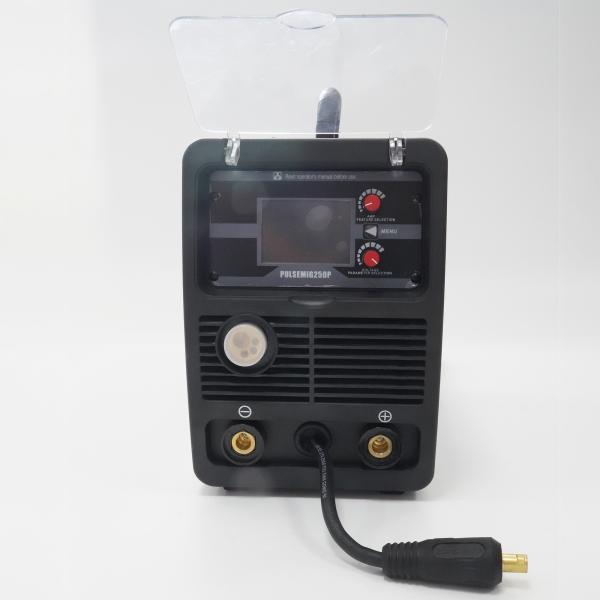

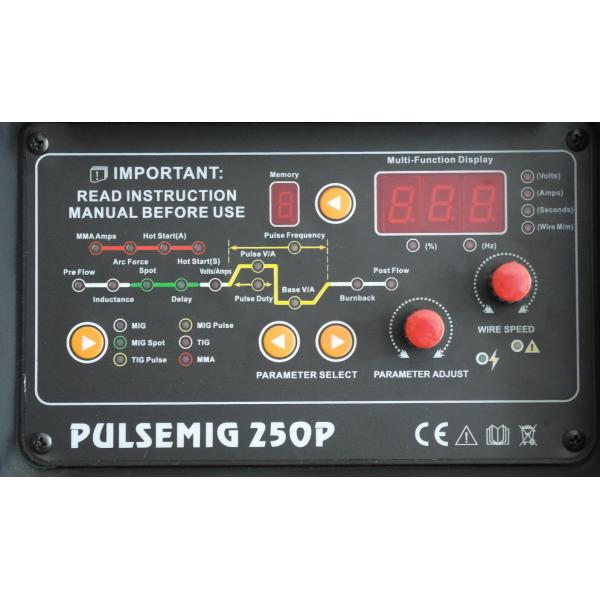

4. Full Digital Control Panel, Friendly Operation Panel
5. MIG has synergic function that automatically adjusts the wire speed when increases or decreases the voltage.
6. Hot Arc Start, arc force, anti-stick function.
7. 2T/4T function
8. Microprocessor inside, 10 channels memory to facilitate saving time and save your settings favorites.
9. Quickly gas connector, Easy Operation.
10. Over thermal and Current Protection.

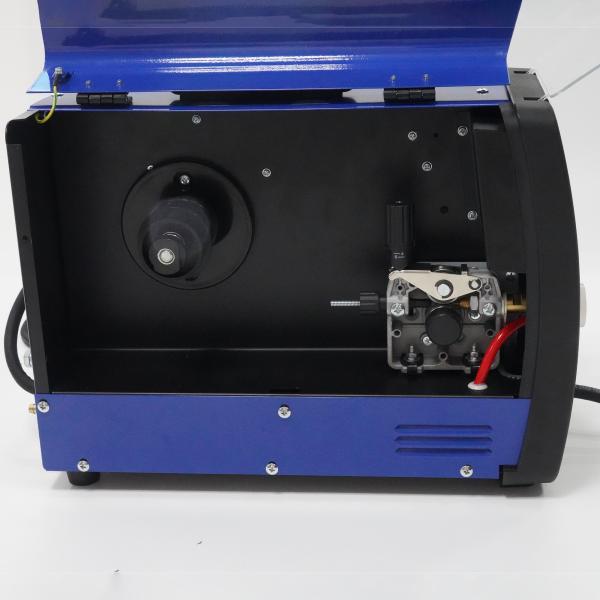

11. 10kg/200mm wire spool.
12. Spool Gun socket optional.

Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder

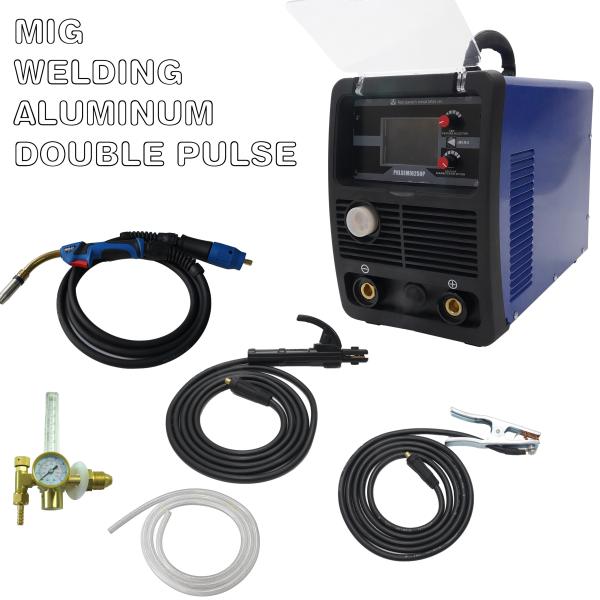

Included Accessories:
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
TIG Torch 3m

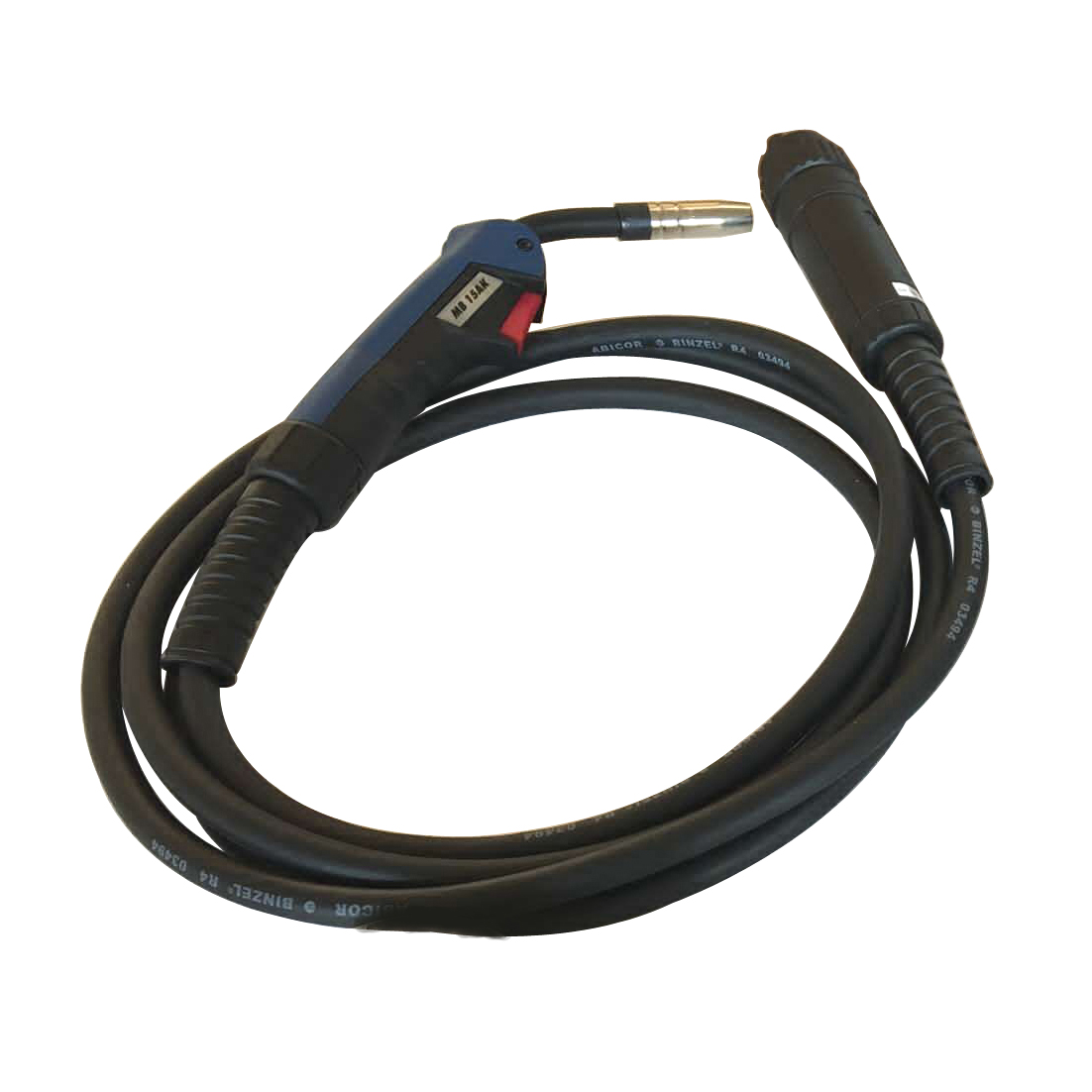

MIG Torch 3m
Gas hose 2m
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
300A Earth Clamp 3m
300A Electrode Holder 3m
Foot peda

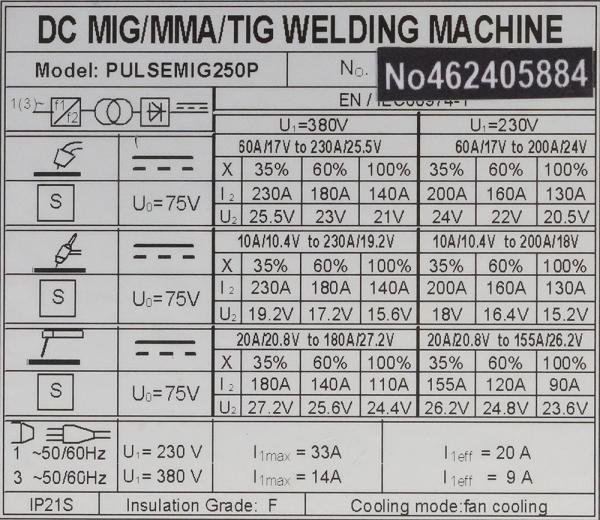

Main Parameters:
MODEL
Model
PULSE MIG250P

INPUT
Voltage
1xAC230V, 50/60Hz
Rated Input Current
40A
Rated Input power
9KVA


MMA
No-load Voltage
60V
Current Adjusting Range
10~200A
Rated Output Current
200A
Rated Duty Cycle
35%




TIG
No-load Voltage
60V
Current Adjusting Range
10~250A
Rated Output Current
250A
Rated Duty Cycle
35%
Base Current Adjusting Range
10-250A
Pulse width
10%~90%
Pulse freq.
0.1~500Hz







MIG
No-load Voltage
60V
Pulse / base Voltage Adjusting Range
14-30V
Rated Output Current
250A
Current Range
30~250A
Rated Duty Cycle
35%
Wire Speed Adjusting Range
1.5~15m/min
Base/Pulse voltage
10~100%
Voltage Adjusting Range
15.5~22V
Pulse width
10%~90%
Pulse freq.
10~250Hz
Suitable wire
0.024'',0.030'',0.035'' (0.6/0.8/1.0mm)
Spot / Stitch time
0.1~15s
Pre gas Flow Time
0~5s
Post gas Flow Time
0~10s
Efficiency
≥80%
Mass
25kg
Protection Class of enclosure
IP21S
Machine Dimension
430*200*290mm
Related Products:
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
DigiTIG250ACDCPULS (PULSE AC DC TIG)
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
MicroTIG185DA (AC DC TIG MMA)
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
PulseMIG250DC-1 (Double pulse MIG)

Company Introduction

Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder

FAQ.

Q1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.
Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
