220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
Specifications
material / metal processed :
Aluminium alloy
rated input voltage :
220V
wire melting type :
Globular Transfer
max. load power capacity :
6.7KVA
rated output voltage :
220V
welding current/voltage range :
220V
rated duty cycle @40°c (mig) :
35%
wire feeding speed :
12
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
dimensions :
560*240*460
usage :
MIG Welding
weight (kg) :
13
warranty :
1 Year
feature :
INVERTER
Engine power :
electric(dc), electric(ac)
mig solid wire diameter mm :
0.8mm, 1.0mm, 1.6mm, 1.2MM
Model :
PULSEMIG200P
Power Supply Voltage :
1*230V 50/60Hz
Rate Input Capacity (KVA) :
6.7
Rate Input Current(A) :
29
No Load Voltage :
60
Output current Range :
MIG10-200A.TIG:10- 200A,MMA:10-175A
Duty Cycle :
35%
Weight :
13kg
L*W*H(mm) :
560*240*460
Description
220V Pulsed Ac Dc Welder Mig Aluminum Welder
1. Introduction to welding machine
220V Pulsed Ac Dc Welder Mig Aluminum Welder
The PULSE MIG200P is a versatile digital control IGBT inverter welding machine that supports DC MMA, pulse TIG, and double pulse MIG welding. Equipped with a 32-bit MCU and SYNERGIC MIG mode, it offers easy operation and exceptional performance. This machine is ideal for industries such as automotive manufacturing and repair, construction, machinery fabrication, and metal processing, efficiently welding a wide range of materials from thin sheets to thick plates.
2.Panel display
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
3.Attribute table
Model
PULSEMIG160P
PULSEMIG200P
PULSEMIG250P
Power Supply Voltage
1*230V 50/60Hz
1*230V 50/60Hz
1*230V 50/60Hz
Rate Input Capacity (KVA)
4.8
6.7
9.5
Rate Input Current(A)
21
29
40
No Load Voltage
60
60
60
Output current Range
MIG10-160A,
TIG:10 160A.
MMA:10-130A
MIG10-200A,
TIG:10- 200A,
MMA:10-175A
MIG10-250A,
TIG:10- 250A,
MMA:10-200A
Duty Cycle
35%
35%
35%
Weight
12kg
13kg
15kg
L*W*H(mm)
560*240*460
560*240*460
560*240*460
4. Analysis of product buying points
220V Pulsed Ac Dc Welder Mig Aluminum Welder
DESCRIPTION
*Digital Control IGBT inverter DC MMA Pules TIG and Double *Pulse Mig
*Lift TIG
*Hot arc start and arc force, Anti-stick for MMA
*32 bits MCU inside
*LED or LCD display
*2T/4T Special 2T/4T and spot
*Easy weld more than 16(65)kinds of materieals
*100/200 wire spool
*2rollers wire feeder
*SYNERGIC mig,singer pluse and double pulse
5. Application scenarios
220V Pulsed Ac Dc Welder Mig Aluminum Welder

Bridge Welding

This welding machine performs excellently in bridge welding with its IGBT high-frequency inverter technology and multi-functional support. It has stable arc, deep penetration, supports gas shielded/gasless welding and aluminum welding. The single PCB design is light and efficient, adapts to complex construction requirements, and is a reliable choice for bridge projects.
220V Pulsed Ac Dc Welder Mig Aluminum Welder

Shipbuilding Welding

This welding machine is specially designed for the shipbuilding industry. It adopts IGBT high-frequency inverter technology and supports gas-shielded/gasless welding and aluminum welding. It has stable arc and strong penetration, and can meet the
high-strength requirements of ship hull steel structures. The lightweight design and multi-functional support are suitable for complex welding in multiple scenarios, making it an efficient and reliable high-quality choice for the shipbuilding industry.
220V Pulsed Ac Dc Welder Mig Aluminum Welder

Pipe Welding

This welding machine performs well in pipeline welding. Relying on IGBT high-frequency inverter technology and stable arc, it supports gas-shielded/gasless welding and adapts to the welding needs of a variety of materials and locations. Its lightweight
design and efficient energy utilization ensure welding quality and strength, making it an ideal tool in pipeline construction.

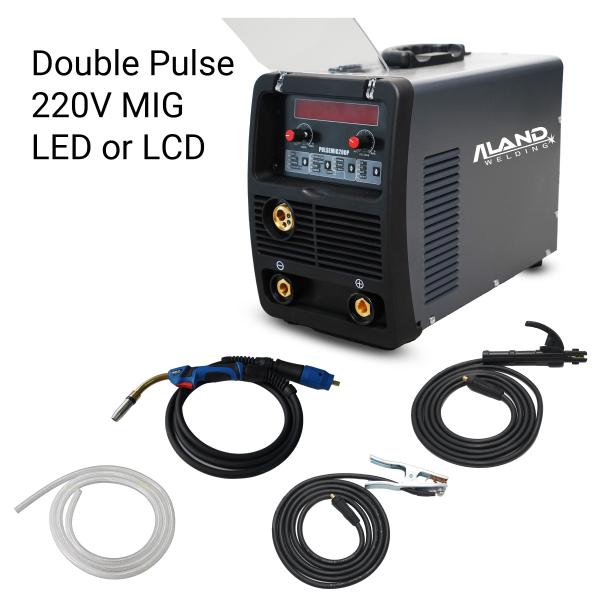

6. Product configuration
Serial Number
Name
Specification
Quantity
1
MlG Torch
3m
1
2
Earth Clamp
3m
1
3
Electrode Holder
3m
1
4
Gas Hose
2m
1
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
OPTIONAL ACCESSORIES
Serial Number
Name
Specification
Quantity
1
Spool gun
1
2
Regulator
1
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
220V Pulsed Ac Dc Welder Mig Aluminum Welder
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
